Vehicle Systems Disassembly & Assembly
End By :
a. Install floor plate.
b. Install mast *
* Refer to the Mast System Disassembly & Assembly
Section for further information
Engine
Remove & Install Engine
NOTE : Procedures for LP gas and diesel engines
are all similar. The engine shown in the following
illustrations is for diesel engine.
Start By :
a. Remove overhead guard *
b. Remove hood (with seat) assembly *
c. Remove counterweight *
d. Remove floor plate.
e. Remove hydraulic control valve *
* Refer to the topics ÒOverhead GuardÓ, ÒHood (with
seat) AssemblyÓ, ÒCounterweightÓ and ÒHydraulic
Control ValveÓ in this module.

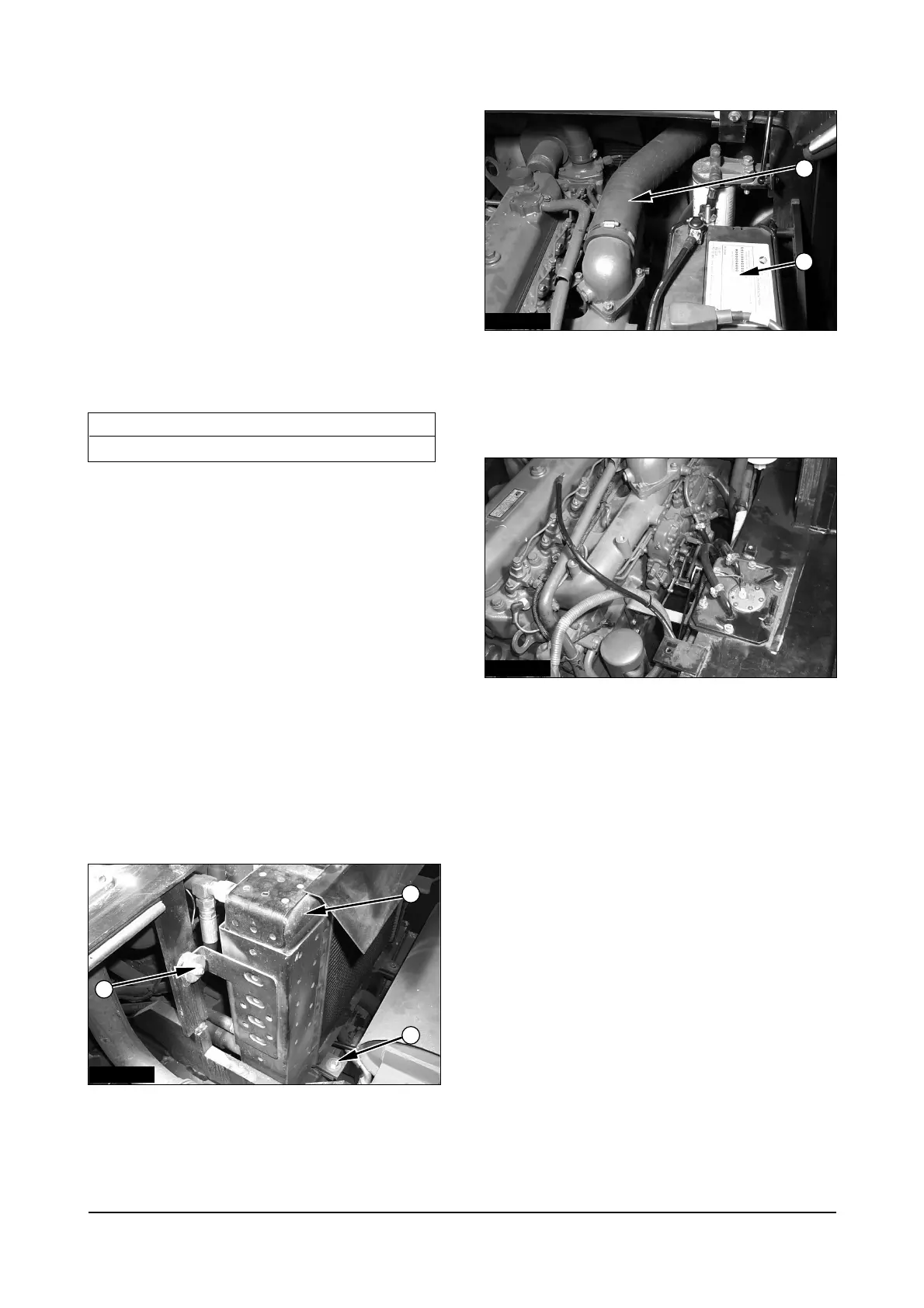

1. Disconnect all hoses from radiator (3). Loosen
bolts (1) and (2) and remove radiator (3).
2. Disconnect air intake hose (4).
3. Disconnect battery cables and remove battery (5)
and battery tray assembly.
4. Disconnect fuel lines from the engine.
5. Disconnect accel cable and engine stop motor
cable from the engine.
39
Tools Needed A
Link Bracket 1
IACD262P
