Vehicle Systems Disassembly & Assembly

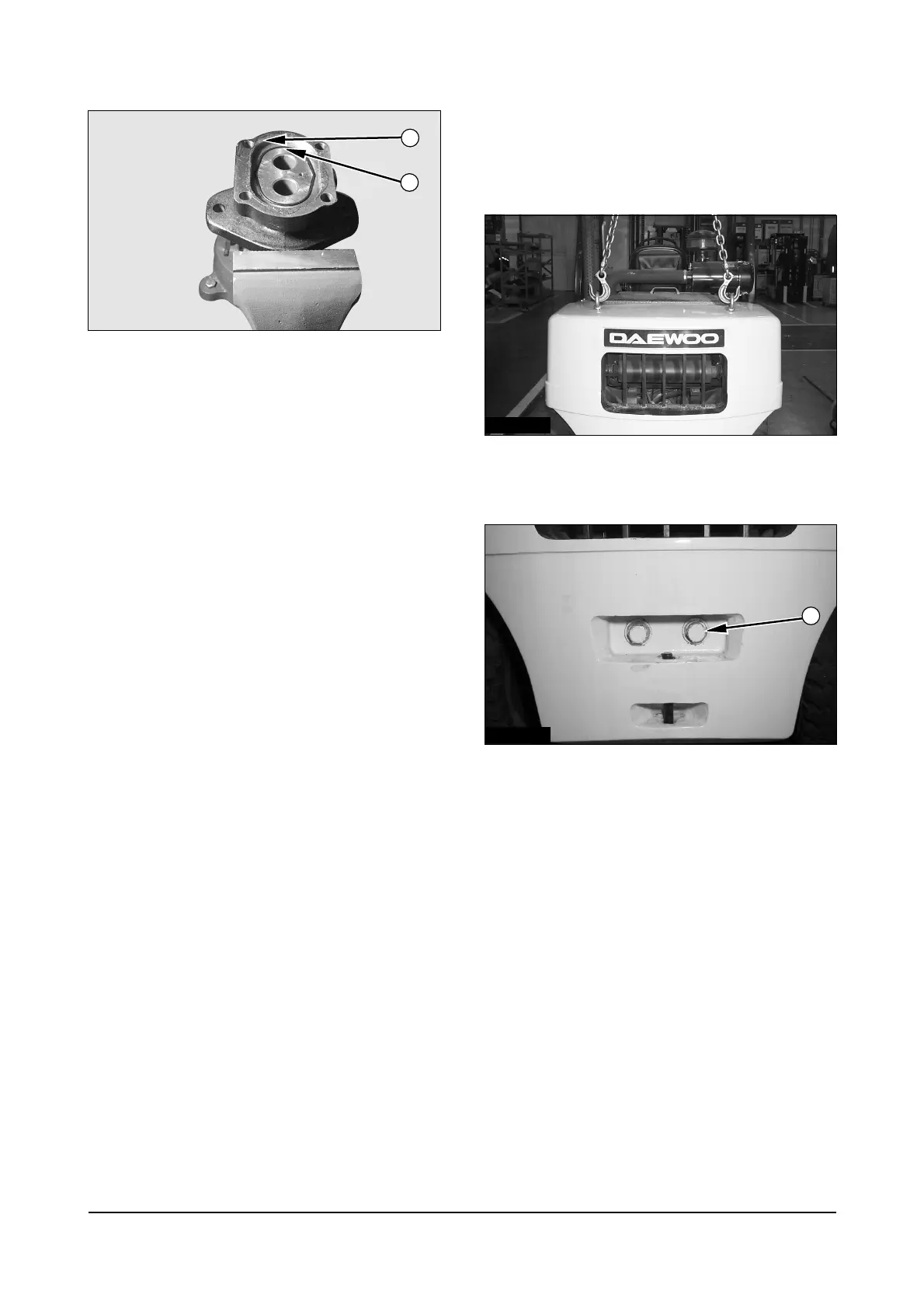

15. Remove O-ring (21) from the flange (22).
16. Remove the flange (22) from the vise.
17. Assemble the hydraulic pump in the reverse
order of disassembly.
Counterweight
Remove And Install Counterweight
1. Install two eyebolts in the counterweight. Fasten a
hoist to the eyebolts as shown.
2. Remove two bolts (1), washers that hold the
counterweight to the frame. Remove the
counterweight. The weights of the different
counterweight go from a minimum of 1650 kg
(3630 lb) to a maximum of 2350 kg (5170 lb).
NOTE : The following steps are for installation of the
counterweight.
3. Install two eyebolts in the counterweight. Fasten a
hoist to the eyebolts.
4. Put the counterweight in position on the frame and
install bolts (1), washers that hold the
counterweight in place. Tighten torque : 600
LL
50
N¥m (442
LL
37 lb¥ft).
36
IACD251P
IACD252P
IACD253P
To Next Page
