Vehicle Systems Disassembly & Assembly
Steering Knuckles, Kingpins,
And Bearings
Remove And Install Steering
Knuckles, King Pins And Bearings
Start By:
a. remove steer wheels
NOTE : The procedure to remove and install the
steering knuckles, kingpins, and bearings is the same
for both sides of the lift truck.

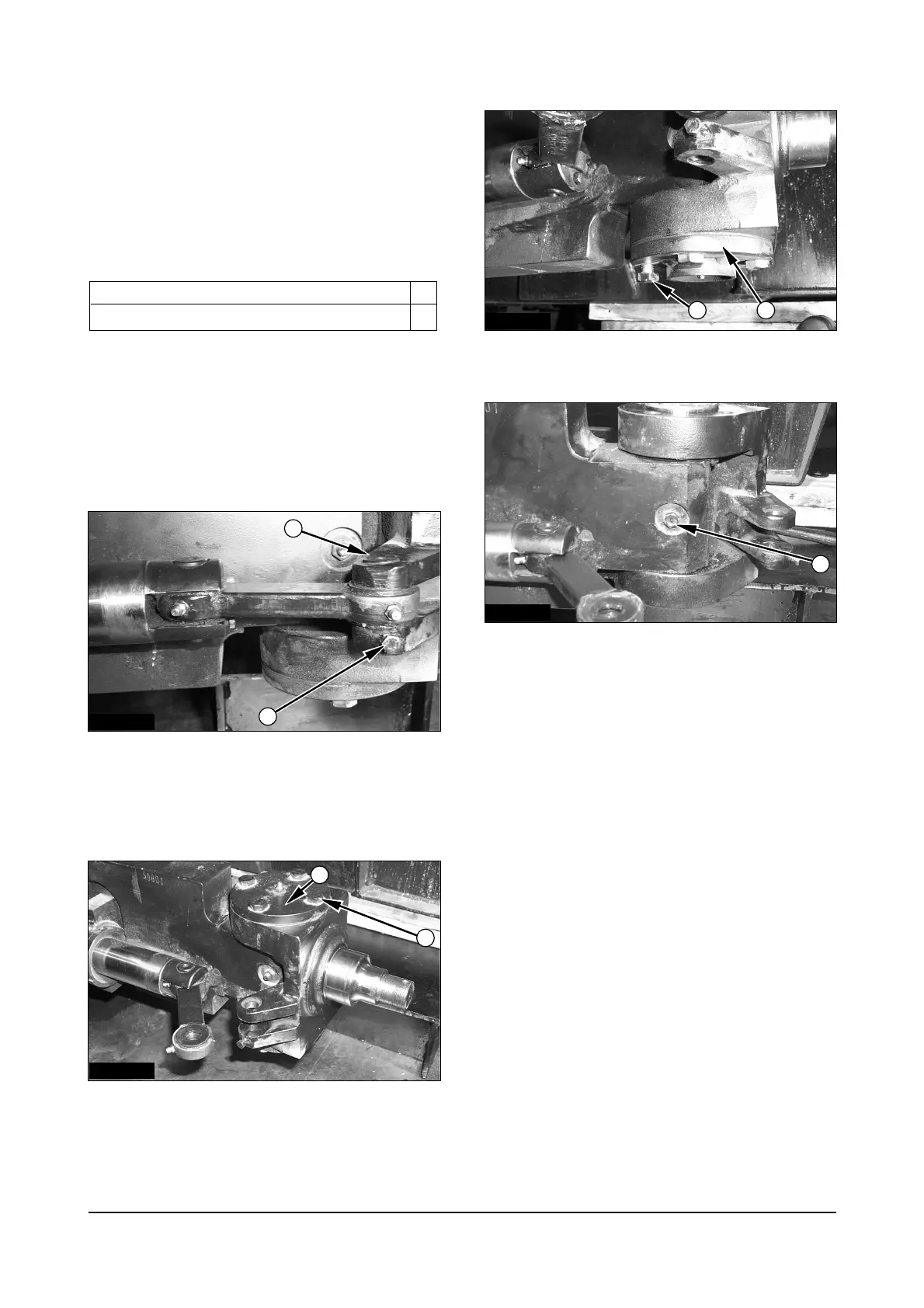

1. Remove pin retaining bolt (2). Remove pin (1).
2. Position the tie rod away from the steering
knuckle.
3. Remove four bolts (3) and cover (4).
4. Remove four bolts (5) and cover (6).
5. Remove the nut and bolt (7). For the purpose of
reassembly, the torque for bolt (7) is 11 L 1 N¥m
(8 L 1 lb¥ft).
Tools Needed A
Drive Set 1
22
IACD215P
To Next Page
