8. Remove O-ring seal (11) and backup ring (12)
from the rod cover (2).
9. Remove wiper seal (13), backup ring (14), U-
packing (15) and DU-bush (16) from the rod cover.
NOTE : Assemble the tilt cylinder in the reverse
order of disassembly.
Secondary Lift Cylinders
Disassemble Secondary Lift
Cylinders
Start By :
a. Remove secondary lift cylinders.

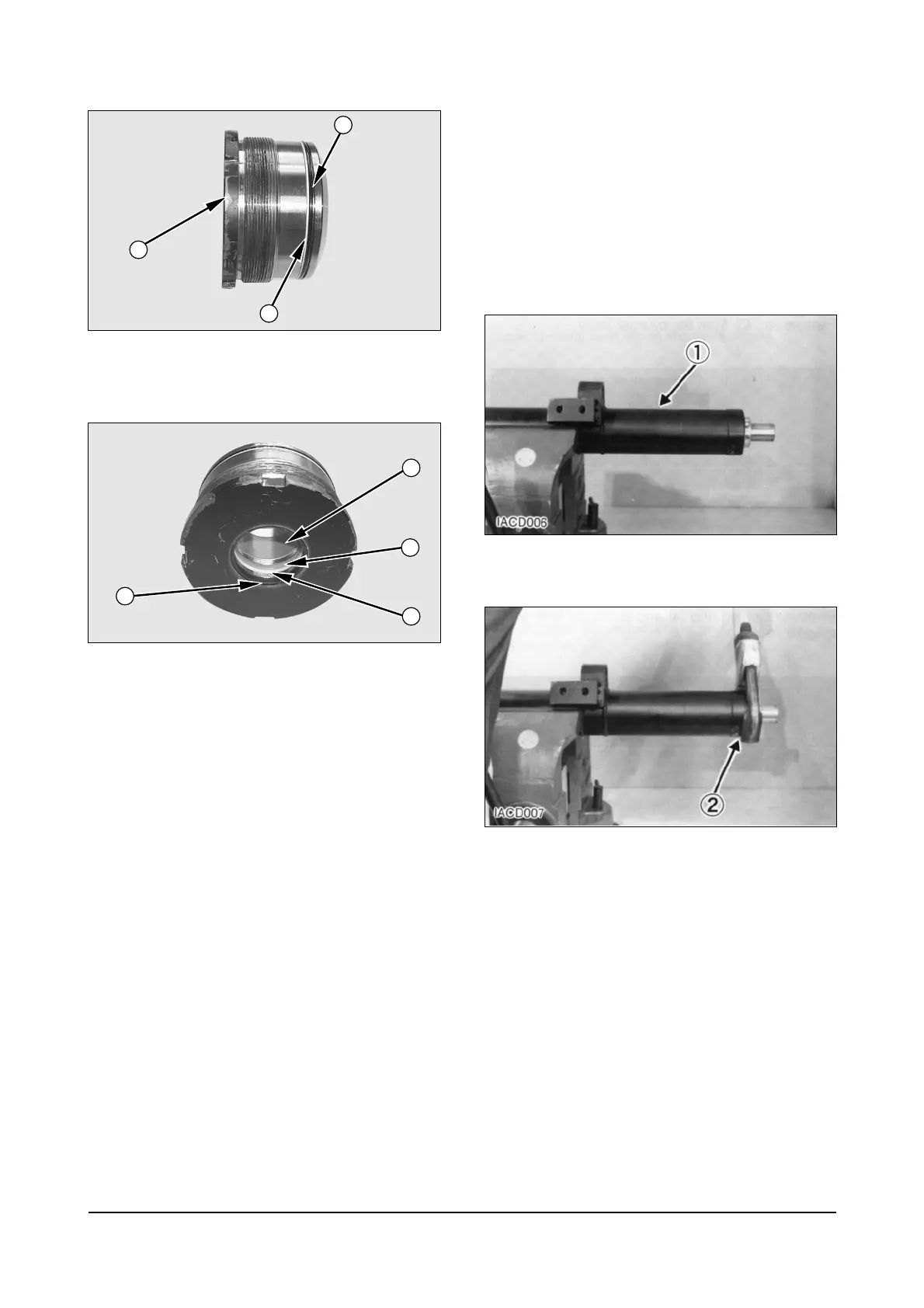

1. Put secondary lift cylinder (1) in position as shown.
2. Remove head assembly (2) with tool.
9
ICCD007P
ICCD008P
11
12
16
15
14
13
2
