Daewoo D45SC-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly

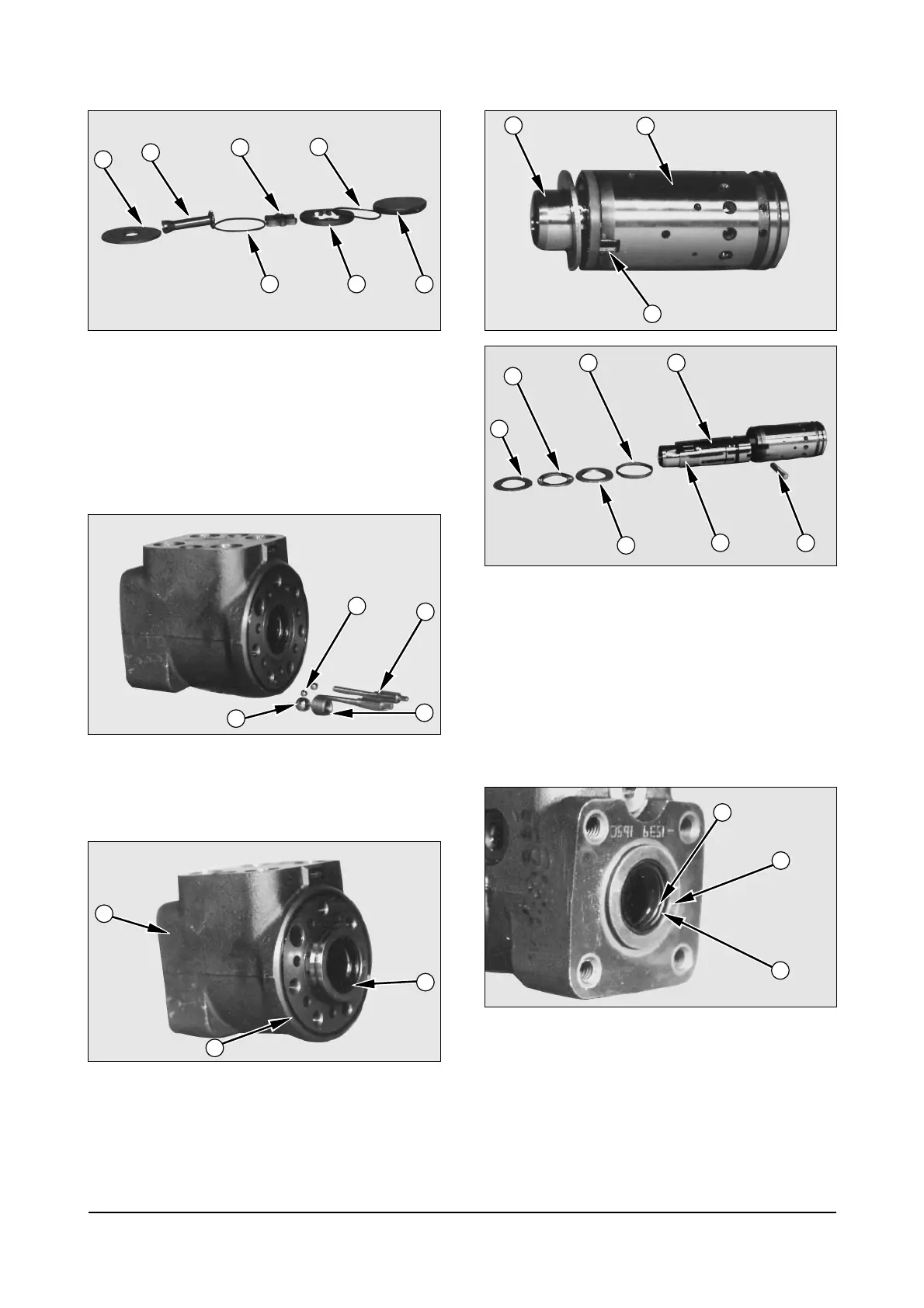

4. Remove the components from housing (3) as
follows:
a. Remove plate (6) from housing (3).
b. Remove shaft (7) from gerotor (9).
c. Remove gerotor (9) from housing (3).
d. Remove O-rings seal (8) from housing (3).
e. Remove O-ring seal (10) from cap (4).
5. Remove suction valve balls (12) and pins (11).
6. Remove screw (13) and check valve ball (14).
7. Remove O-ring seal (15) from steering unit body
(2).
8. Remove sleeve (16) from the body.
9. Remove the components from sleeve (16) as
follows :
a. Remove pin (18) from spool (17) and sleeve
(16).
b. Remove spool (17) from sleeve (16).
c. Remove two bearing races (19), (20) and
bearing (21) from spool (17).
d. Remove six springs (23) and ring (22) from
spool (17).
10. Remove O-ring seal (24) and king-ring (25) from
body.
11. Check the condition of dust seal ring(26).
Replace seals with new if worn or damaged.
17
ICCD081P
ICCD082P
ICCD083P
ICCD086P
ICCD084P
ICCD085P
9
7
6
10
17
16
23
17
22
21
19
4
12
14
11
2
16
25
26
24
15
13
3
8
18
23
20
