Vehicle Systems Disassembly & Assembly

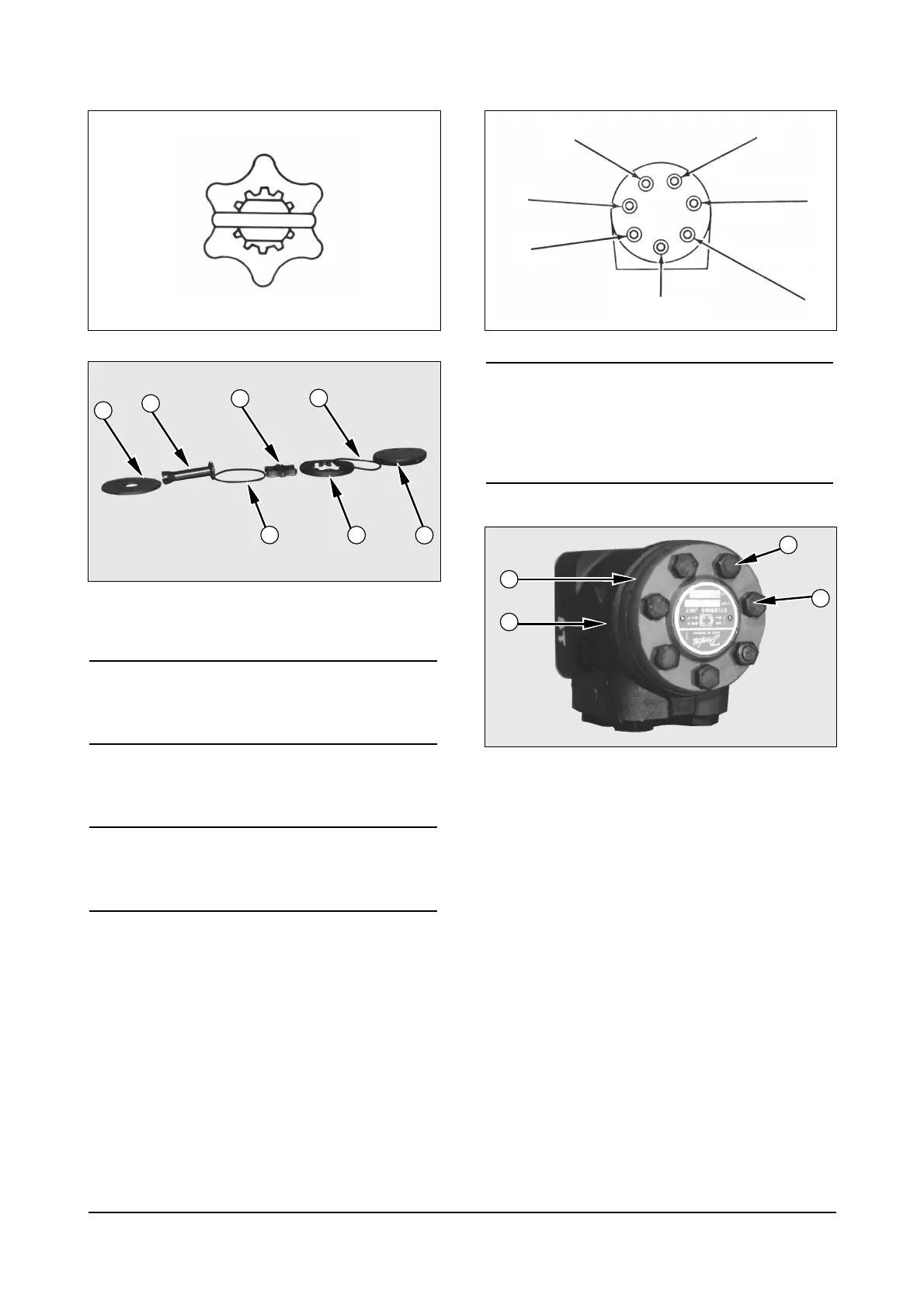

28. Install plate (6) onto steering unit body.
NOTICE
Make sure the notch of shaft (7) properly seats on pin
(18) when installed into body and spool (17).
29. Install shaft (7) into body (2) and spool (17).
NOTICE
Gerotor (9) must be aligned with shaft (7) and pin (18)
as shown in the illustration.
30. Install O-ring seal (8) and housing (3).
31. Install O-ring seal (10) and cap (4).
NOTICE
To assure proper operation of the steering unit, make
sure bolts (5) are clean and dry before installing.
Tighten bolts (5) in the sequence shown in the
illustration.
32. Install bolts (5) into cap (4). Tighten bolts (5) in
correct sequence to a torque of 30 L 6 N¥m (22
L 4.4 lb¥ft).
End by :
a. Install steering unit to the truck.
20
ICCD090P ICCD091P
ICCD081P
