- 63 -

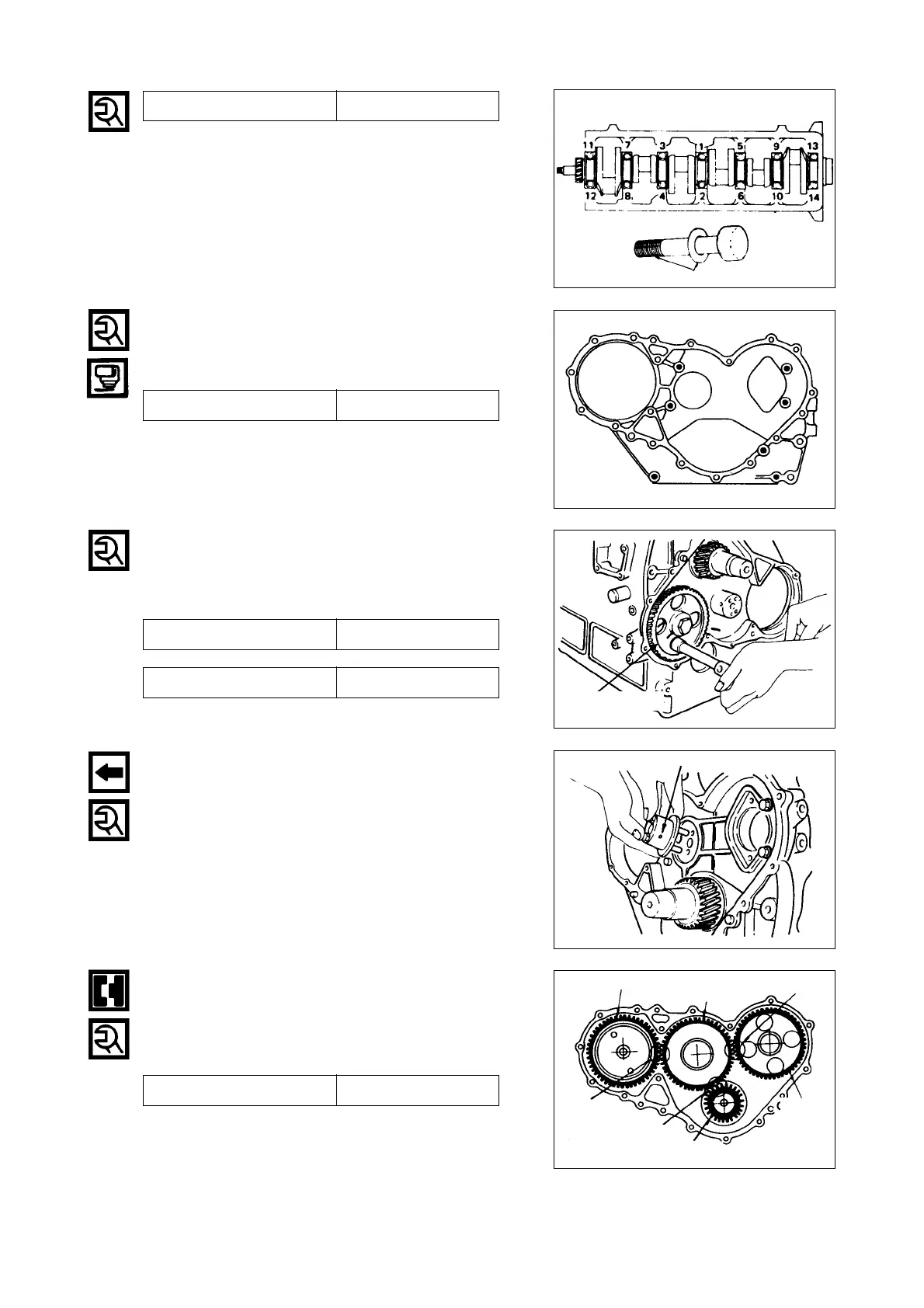

4) Check it whether the crank shaft is smoothly
rotated by hand or not.
¥
Timing Gear Case
Tighten timing gear case bolt to the specified torque.
¥
Cam shaft
Tighten thrust plate bolt to be aligned to cam shaft
gear hole.
¥
Idle Gear Shaft
Assemble the idle gear shaft with thrust washer fixing
bolt for oil port of idle shaft to be toward cam shaft.
¥
Idle Gear
Assemble the gear so as to be aligned with every
timing mark of A,B,C.
Assemble thrust washer of which the chamfered side
is toward front side.
EJM2126S
EJM2127S
EJM2128S
EJM2129S
EJM2130S
Tightened Torque 24. 0
L
1 kg¥ m
Tightened Torque 2.6
L
0.5 kg¥ m
Thrust Plate Bolt Torque 2.6
L
0.5 kg¥ m
Camshaft Gear Bolt Torque 16
L
1.5 kg¥ m
Torque 5.5
L
1 kg¥ m
Spread of Engine Oil
Cam shaft gear
Oil port
Injection Pump Gear
Idle gear
Mark "B"
Mark "C"
Mark "A"
Crank shaft gear
Cam
shaft
gear
To Next Page
