- 15 -
1.5.3. Water separator
1) Drain plug should be loosened to remove water in
fuel filter if necessary.
2) When assembling plug, make to surely keep the
forque to be 1.2
L
0.3 kg ¥ m

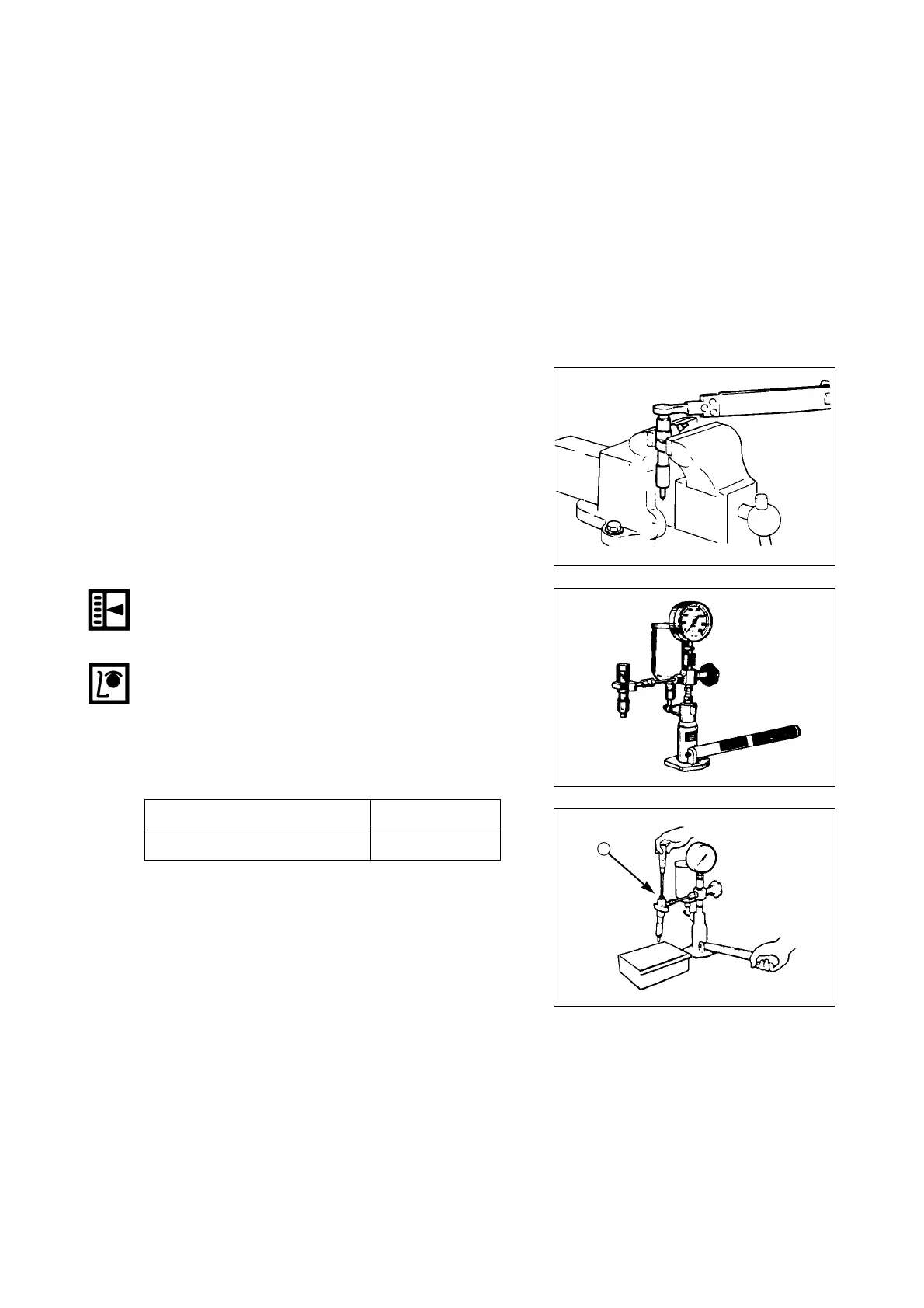

• Disassembly Procedure
1) Fix the injection nozzle with a vise.
2) Release nozzle holder cap with a wrench.
3) Disassemble the injection nozzle holder from a
vise.
¥ Adjusting Procedure
Injection Opening Pressure Check.
1) Assemble nozzle holder at nozzle tester.
2) Release adjustment screw (1), As shown in fig.
3) Check injection opening pressure.
4) Adjust injection nozzle opening pressure if
necessary with nozzle tester.
EJM1023S
EIO3008S
1.5.4. Injection Nozzle
DB58
Injection Opening Pressure 220 kg/cm
2
EJM1024S
1
