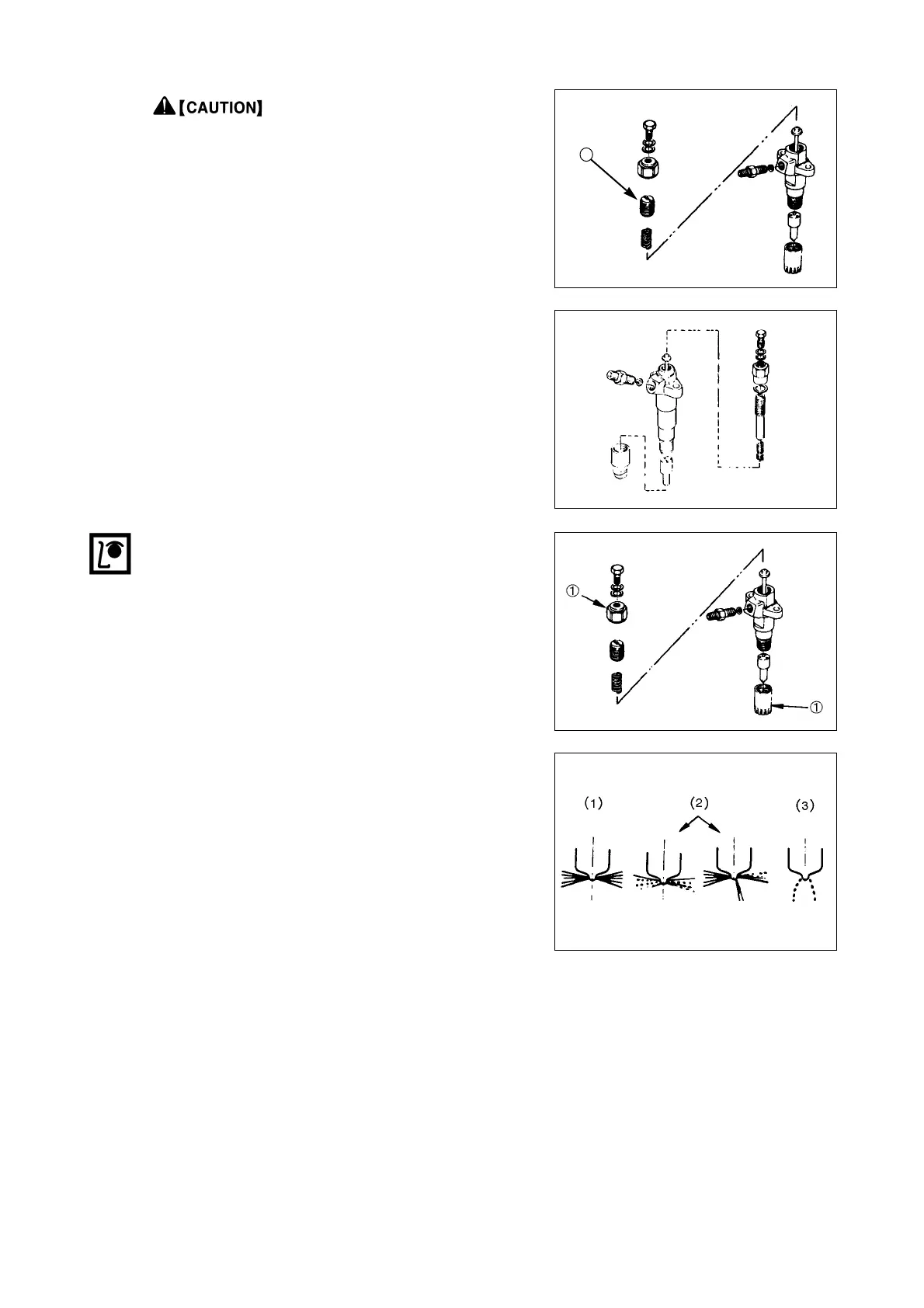

Injection Condition Check (Operating the Nozzle
Tester)
1) Tighten cap nut (1)
2) Check injection nozzle opening pressure
3) Check the injection nozzle sparay condition
Prior to injecting the fuel completely, compress 4~6
times and finally inject.
See figure for injection condition.
1) Good
2) Inferiority (orifice)
3) Inferiority (dripping)
EJM1027S
EJM1028S
- 16 -
Carefully keep away from skin
and keep off from tester because pressure of
nozzle tester is very high when inject.
EJM1025S
EJM1026S
