Make sure to adjust the valve clearance after
tightening cylinder head bolts.
EDM1003S
1.5.9. Valve Clearance and Adjustment
- 18 -

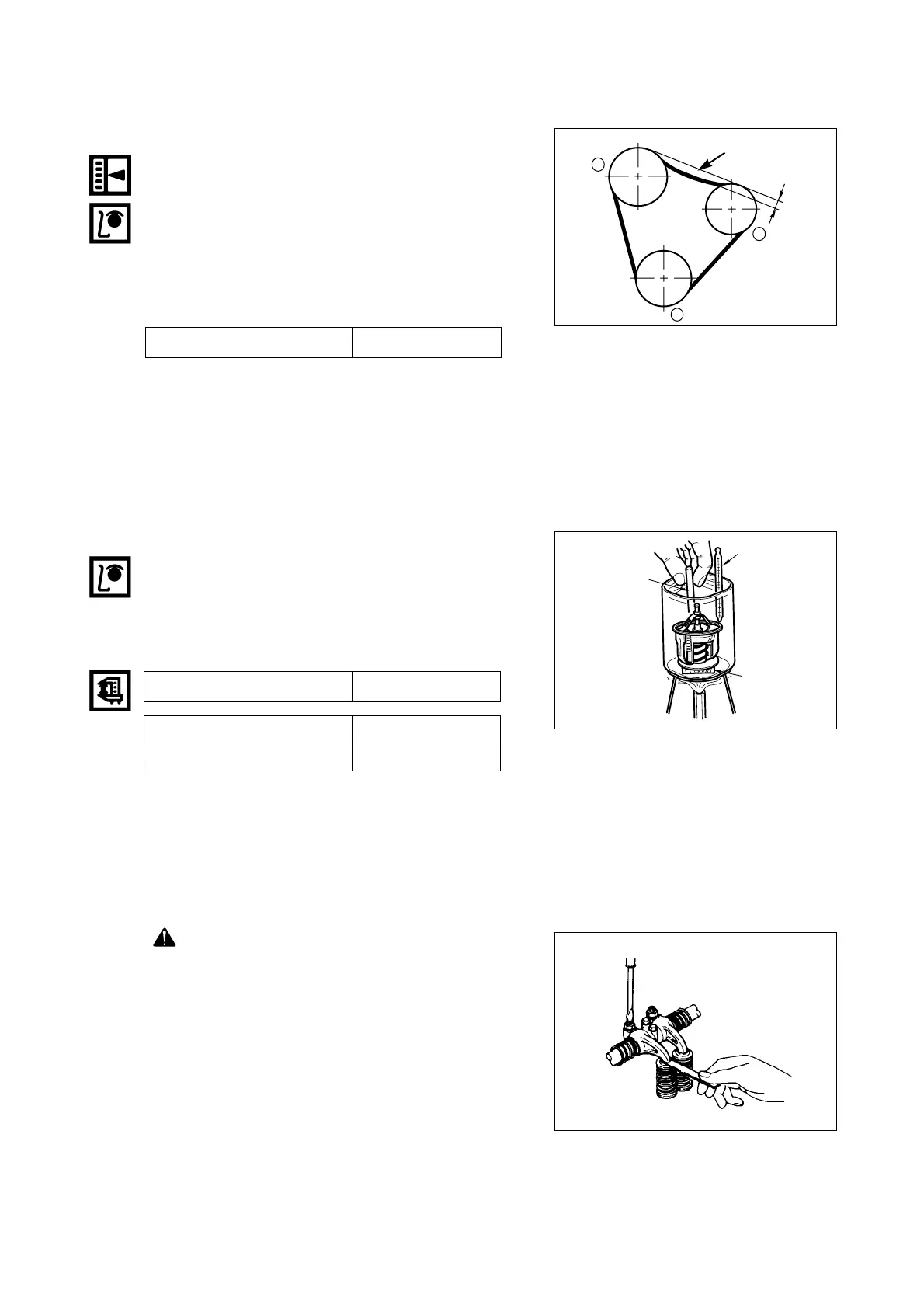

¥ Cooling Fan Belt Adjustment
1) Check cooling fan belt for cracking and damage.
2) Check the drive belt deflection by applying a force
of 10kg midway between the water pump pulley (2)
and the alternator pulley (3).
3) Adjust the belt tension by loosening the alternator
mounting bolt and the alternator adjusting bolt and
pivoting the alternator.
Be sure to retighten the bolts after adjusting the
belt tension.
Cooling Fan Belt Deflection 8.0 ~ 12.0 mm
¥ Inspection
Visualy inspect the thermostat.
When inspect,if excessive wear or damage is
discovered, replace the thermostat.
¥ measure the valve lift.
EJM1034I
EFM2055I
1.5.7. Cooling System
Amount of Valve Lift 10.0 mm (Full)
Valve Opening Temperature 70 ~ 73
c
Full Opening Temperature 84 ~ 86
c
1.5.8. Thermostat
Depress
here
About
10mm
Thermom
eter
Wood
Plate
Bar
1
2
3
