2.4. Reassembly
2.4.1. General Parts
- 55 -
EJM2103S

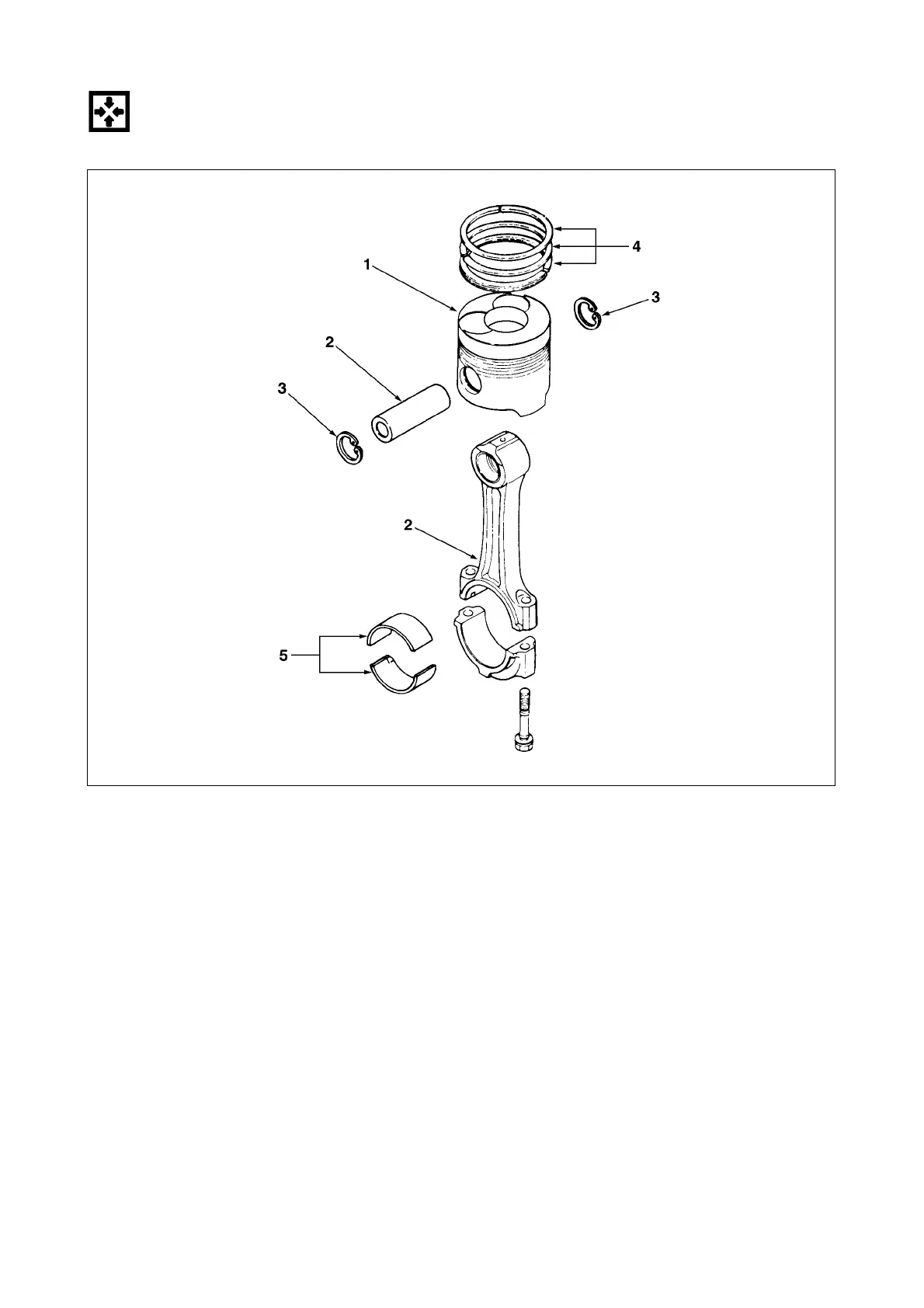

<Order of Assembly >
1. Piston 4. Piston ring
2. Piston pin and connecting rod 5. Connecting rod bearing
3. Snap ring
