Daewoo DF-4501PV User Manual

10
VCR: Advances the tape during Stop mode.
Press during Play mode for fast forward picture
search.
) Front Panel Display
Shows the current status of the DVD Recorder +
VCR.
1 COPY
Copies from DVD to VCR (or from VCR to DVD).
2 PR+/–
Scans up or down through memorized channels.
Also moves up and down in menus.
3 SELECT DVD/VCR
Toggles control between the DVD mode and the
VCR mode.
4 OPEN/CLOSE (DVD)
Opens or closes the disc tray.
5 AVF Input (VIDEO, L-AUDIO-R)
Connects to the audio/video output of an external
source (VCR, Camcorder, etc.).
6 DV Input
Connects to the DV output of an external source
(VCR, Camcorder, etc.).
! STANDBY/ON
Turns the DVD Recorder + VCR on and off.
@ Cassette Compartment (VCR deck)
Insert a video cassette here.
# Disc Tray (DVD deck)
Insert a disc here.
$ VCR EJECT
Ejects the tape in the VCR deck.
% REC
Starts recording. Press repeatedly to set the
recording time.
^ STOP
Stops playback or recording.
& PLAY/PAUSE
Starts playback of a disc or tape. Pauses
playback or recording temporarily.
* REW
DVD: Skips to previous chapter.
VCR: Rewinds the tape during Stop mode. Press
during Play mode for fast reverse picture search.
( FF
DVD: Skips to next chapter.

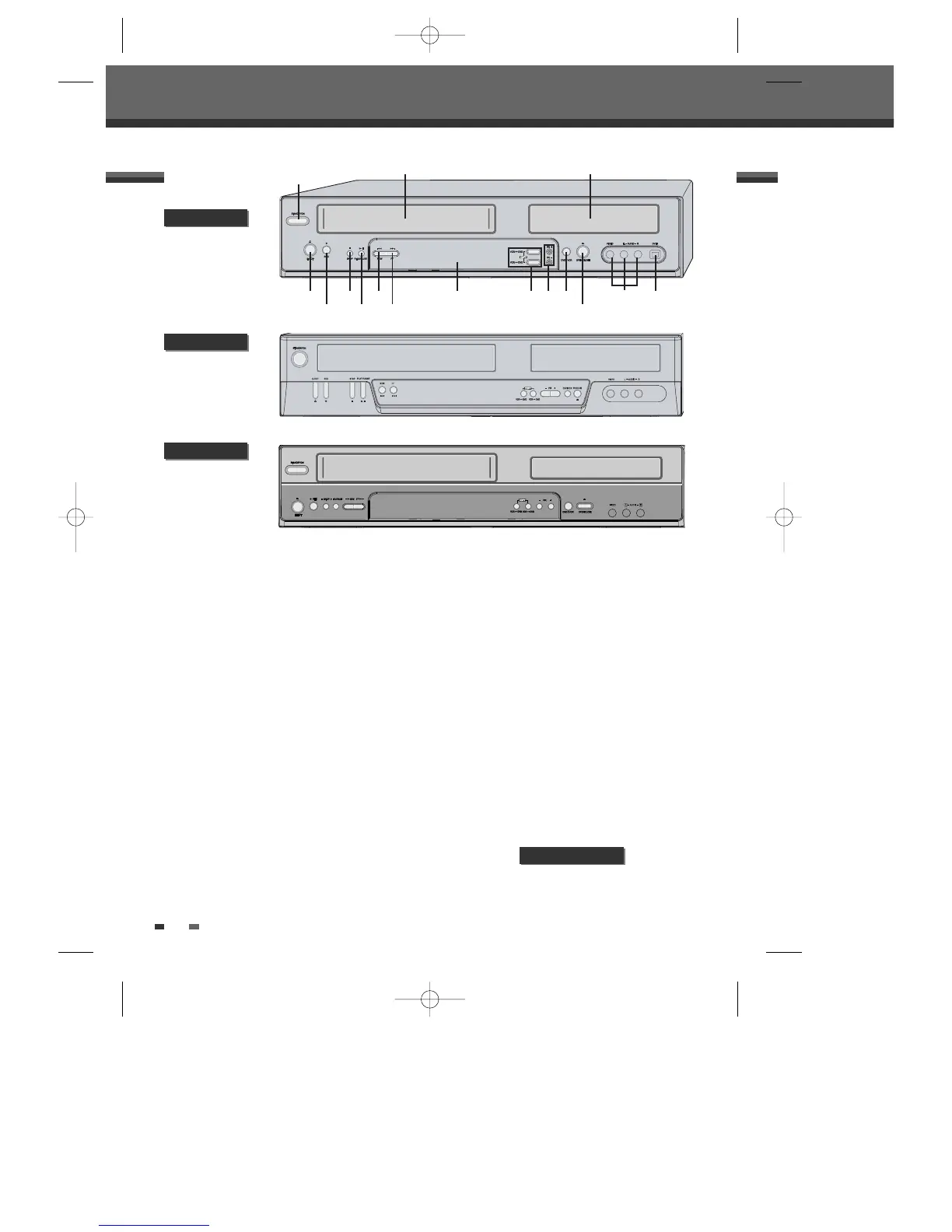

Identification of Controls
Identification of Controls
Front Panel
!
@ #
5
%
$
&
^
(
*
4
3 6) 21
DF-4501PV
DF-4700PN
DRV-6700P
DF-4501PV only
DF-H3512P-UL¿ 2008.1.25 5:21 PM ˘ ` 10 mac001 1200DPI 100LPI

Daewoo DF-4501PV Specifications

Operating Environment

operating temperature	5°C to 35°C
operating humidity	5% to 90%

Power

power requirements	200–240V~, 50/60 Hz
power consumption (max)	26W
operation power consumption	23W

Recording

recordable time (DVD) (HQ mode)	1 hour
recordable time (DVD) (SP mode)	2 hours
recordable time (DVD) (EP mode)	4 hours

VCR Specifications

tape speed (SP)	23.39 mm/sec
tape speed (LP)	11.70 mm/sec
tape width	12.7 mm

DVD Specifications

laser wavelength	650 nm
frequency response (DVD PCM 48 kHz)	8 Hz to 22 kHz
frequency response (CD)	8 Hz to 20 kHz

Inputs

antenna in impedance	75 Ω
video in voltage	1.0 Vp-p
audio in impedance	more than 47 k

Outputs

video out composite output voltage	1.0 Vp-p
component video out (Y)	1.0 V (p-p)
audio out digital voltage	0.5 V (p-p)

Weight and Dimensions

dimensions	430 92 312 (w h d)
mass	4.96 Kg
