14
! AC Power Cord
Plug into a power outlet.
@ AUDIO OUT (L, R)
Connect to a TV or other equipment with audio
inputs.
# COMPONENT VIDEO OUT (Y Pb Pr)
Connect to a TV with Component Video (Y Pb Pr)
inputs.
$ Scart socket 2
Connection of an additional device (satellite
receiver, set-top box, video recorder, camcorder,
etc.)
% RF IN (FROM ANT.)
Connect to your antenna or cable TV outlet.
^ RF OUT (TO TV)
Connect to a TV with an RF input.
& Scart socket 1
Connection of a TV set. Composite-output and
RGB-output
* COAXIAL (Digital Audio Out)
Connect to an amplifier with a coaxial digital audio
input.

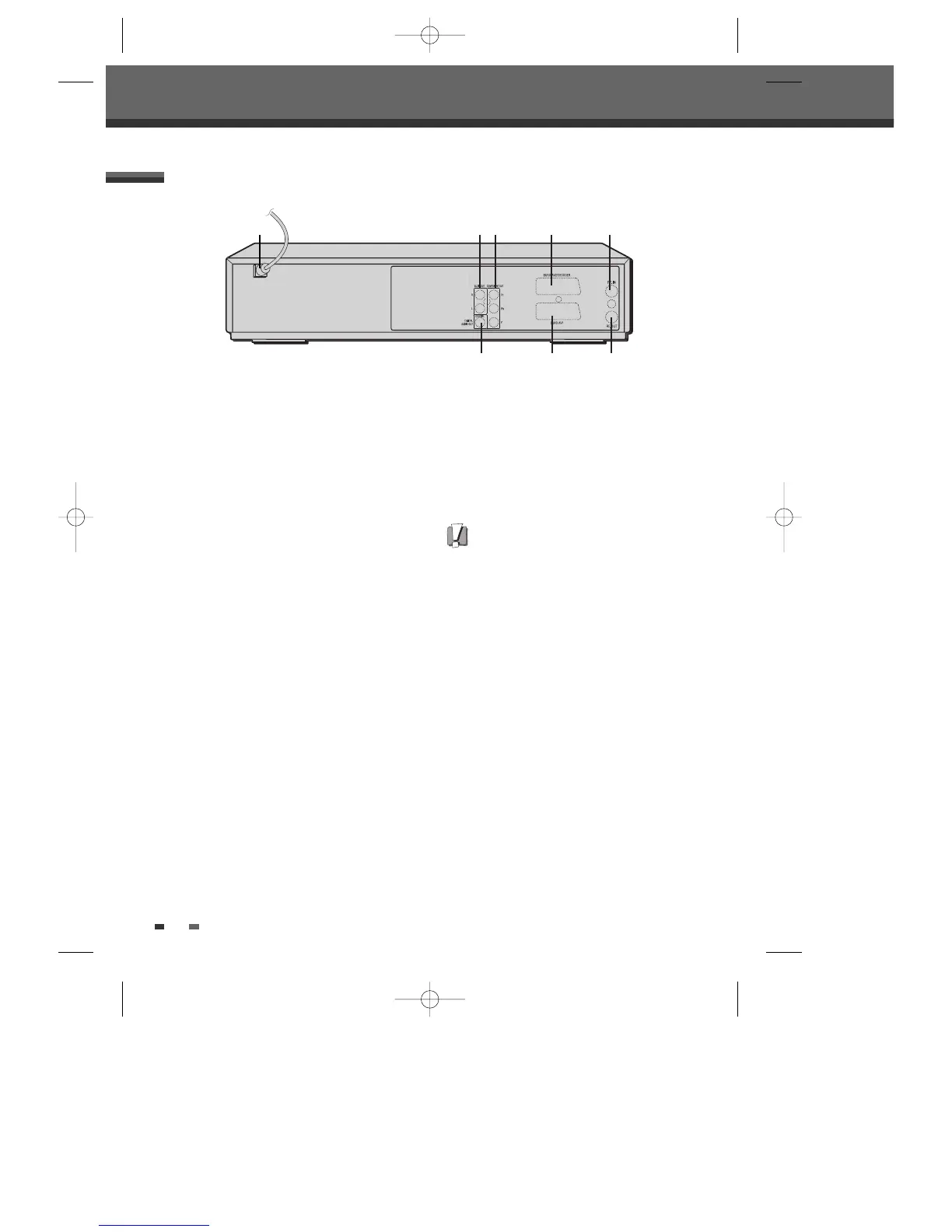

Rear panel
Caution
• Do not touch the inner pins of the jacks on the
rear panel. Electrostatic discharge may cause
permanent damage to the DVD Recorder +
VCR.
Identification of Controls
! @# $ %
* & ^
