1. Prepare the scart lead for picture / sound.
2. Connect the SCART input / output terminal of your video with the SCART1(AV1), SCART2(AV2),
input/output terminal of the TV.
3. Turn on the video, Insert the video cassette, and press the “PLAY” button.
Note :
If S-video and RCA phone jack are connected the same time, the TV set will only detect the S-Video mode.
• If your AV device has both Video OUT terminal and S-Video OUT terminal, the S-Video connection is
recommended for better picture quality.
Note :
• SCART1 has CVBS/RGB input and CVBS output. It is used to connect a STB, VCR or DVD.
• SCART2 has CVBS input. It is used to connect a STB, VCR or DVD.

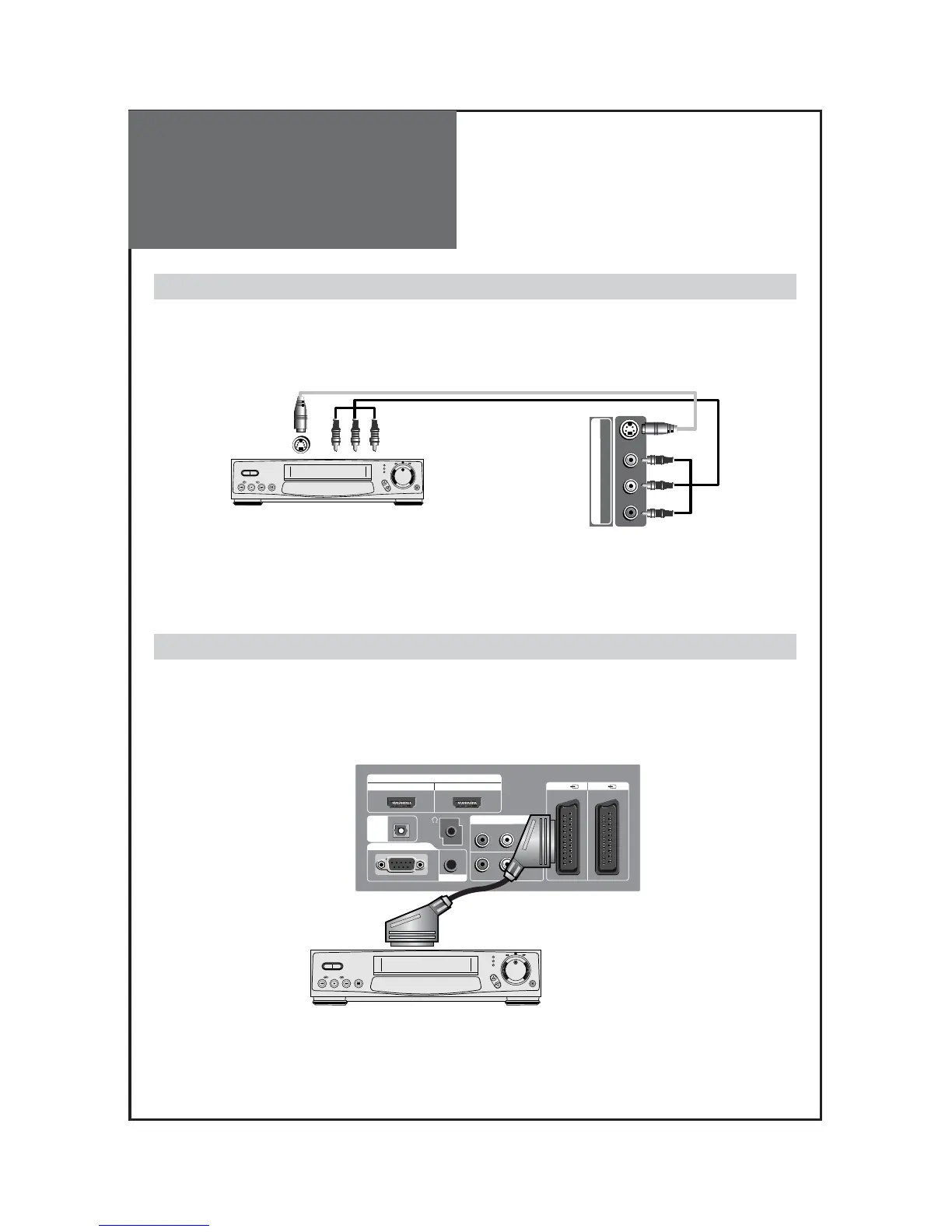

Connecting with an External Source
Connecting with SCART VIDEO
You may connect an S-Video input to enjoy clearer and brighter picture images. You can make the
connection with the AV3 input.
S-Video
BACK OF THE TV SET
VIDEO
TV
