3

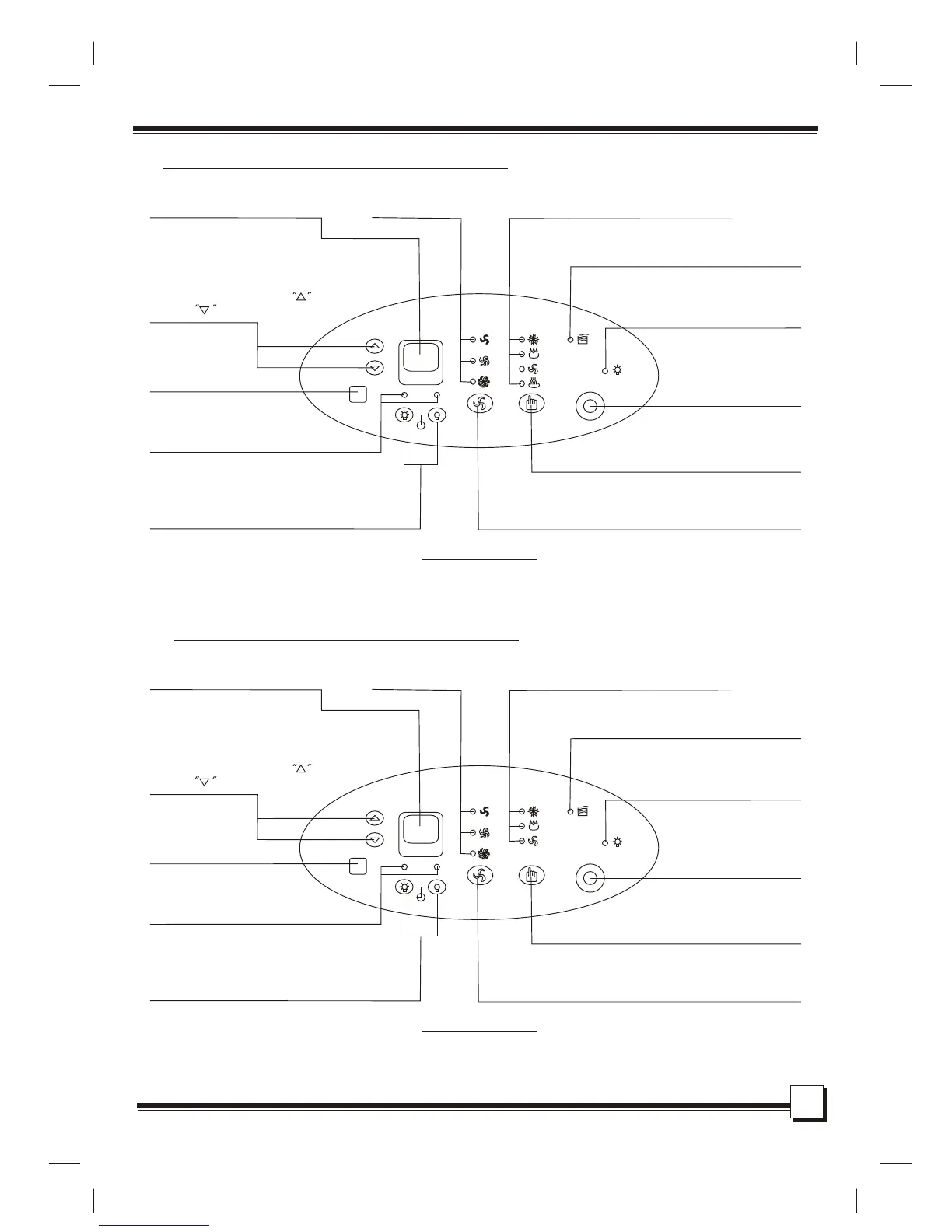

OPERATION PANEL OF THE AIR CONDITIONER(COOLING AND HEATING)
OPERATING PANEL
OPERATION PANEL OF THE AIR CONDITIONER(COOLING ONLY TYPE)
TEMP SETTING BUTTON
Select your desired room temperature
setting by pressing the button (up)
or button (down)
DIGITAL DISPLAY
INFRARED
SIGNAL RECEIVER
TIMER ON/OFF INDICATOR
TIMER ON/OFFBUTTON
Program the on/off timer function
COOL/DRY/FAN INDICATOR
Green lamp will light when the mode is selected
FAN SPEED INDICATOR
WATER FULL INDICATOR
Red lamp will blink when the tank is full
POWER INDICATOR
POWER BUTTON
Turn on/off the unit
MODES BUTTON
Select the operation mode
from COOL.DRY.FAN.
FAN SPEED BUTTON
Press the button to select
the fan speed from
HIGH.MED or LOW
OPERATING PANEL
TEMP SETTING BUTTON
Press your desired room temperature
setting by pressing the button (up)
or button (down)
DIGITAL DISPLAY
TIMER ON/OFF INDICATOR
TIMER ON/OFF BUTTON
Program the on/off timer function
COOL/DRY/FAN/HEAT INDICATIOR
Green lamp will light when the mode is selected
FAN SPEED INDICATOR
WATER FULL INDICATOR
Red lamp will blink when the tank is full
POWER INDICATOR
POWER BUTTON
Turn on/off the unit
MODES BUTTON
Select the operation mode
from COOL.DRY.FAN.HEAT
FAN SPEED BUTTON
Select the fan speed from
HIGH.MED or LOW
INFRARED
SIGNAL RECEIVER
Fig.4
Fig.3
