6

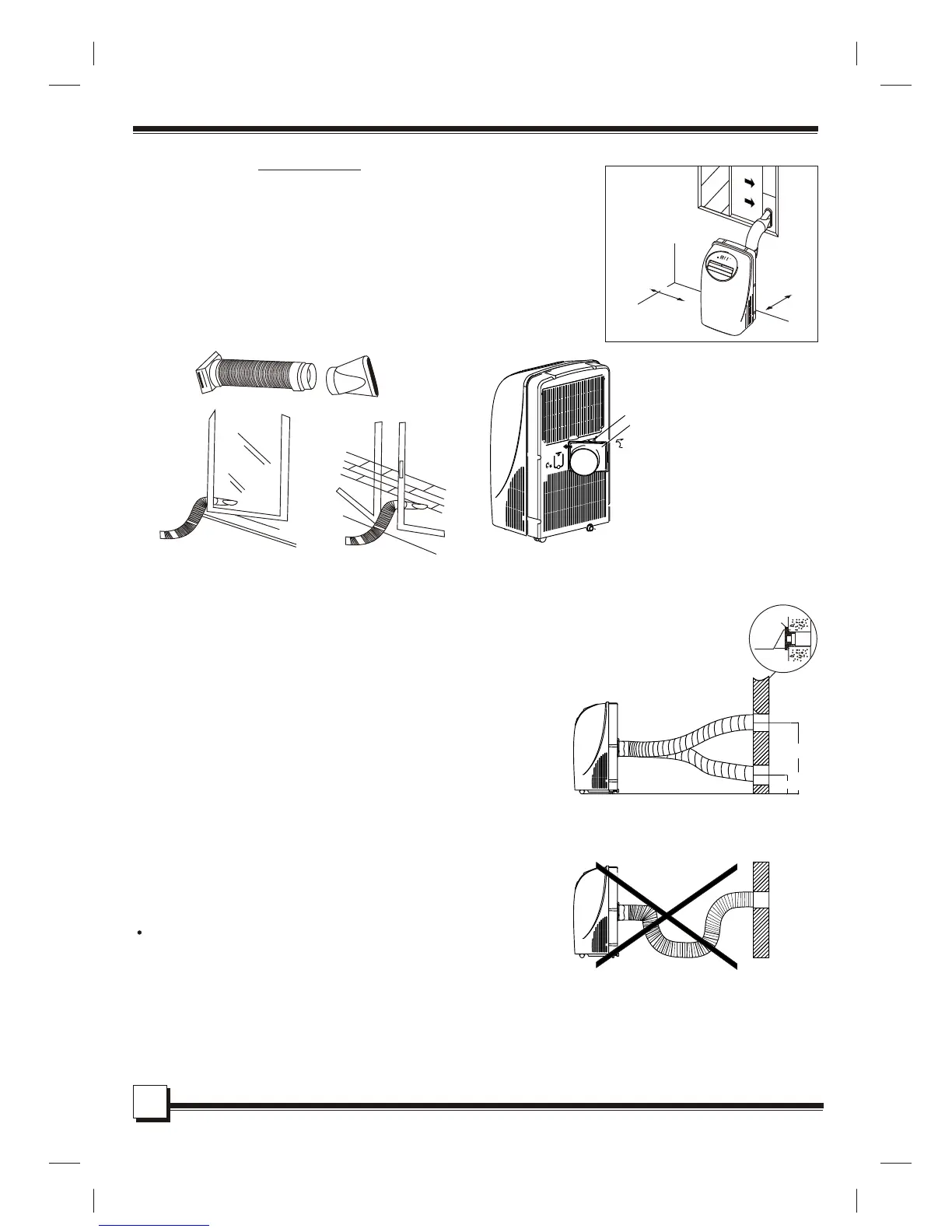

INSTALLATION
Install the mobile ir conditioner in a flat and spacious location
where the air outlets will not be covered up. A minimum
clearance of 30cm from a wall or other obstacles should
be kept. The appliance shall not be used in the laundry.
The plug shall accessible after appliance is positioned.
Wiring shall be done according to National rules.
1 IMPORTANT:
2 DUCT MOUNT INSTRUCTIONS:
Exhaust Air Oulet
Duck
A) TEMPORARY-
1. Attach one end of the duct to the exhaust air outlet of the
mobile air condition, first fit the left side of the duct on the
exhaust air panel, then the right side duct. Push it
downwards, be sure to fix thoroughly. (See the figures)
2. Attach the other end of the duct to adaptor B.
3. Put the end of duct to a nearby window.
B) PERMANENT-
1. Attach one end of the duct to the exhaust air outlet of the
mobile air conditioner. According to the arrow direction,
first fit the left side of the duct on the exhaust air panel,
then the right side duct. Push it downwards, be sure to fix
thoroughly. (See the figures)
2. Install the adaptor A onto the wall by using 4 wall plug and
screws, be sure to fix thoroughly. (See the figures)
3. Attach the other end of the duct to adaptor A.
4. Cover the hole using the adaptor cap when not in use.
The duct can be compressed or extended between 500mm
and 2000mm, but it is desirable to keep the duct length to a
minimum.
IMPORTANT:
DO NOT OVER BEND THE DUCT (SEE FIGURE)
Adapter A
Rawlplugs
Skruer
max 120CM
min 30CM
Fig.8
Fig.9
Fig.10
30
cm
3
0
c
m
Fig.7
