Daewoo DTF-2950-100D - Vsp94 X5 B (Version C4)- Optimus Color Decoder and Scan-Rate Converter; BLOCK DIAGRAM of the Vsp94 X5 B

CP-850FX Service Manual
Europe R&D
21
4.2 VSP94x5B (version C4)– OPTIMUS Color Decoder and Scan-Rate Converter
The VSPB family supports 15/32kHz systems and is available with different options. VSP 94x5B
has one channel only.

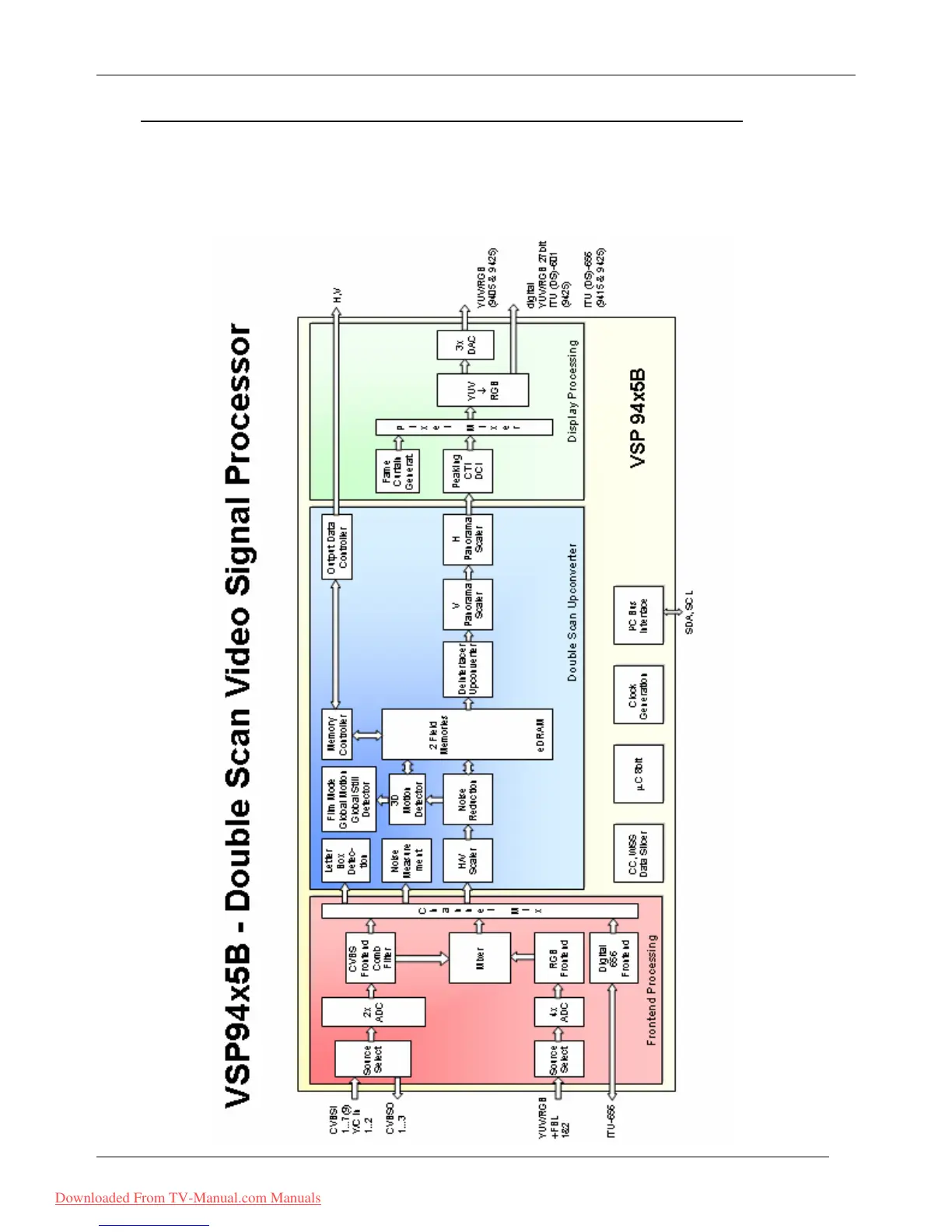

4.2.1 BLOCK DIAGRAM OF THE VSP94x5B
