10
!
RF OUT (TO TV)
Connect to a TV with an RF coaxial input.
@
RF IN (FROM ANT.)
Connect to your antenna or cable TV outlet.
#
AV OUT (VIDEO, L-AUDIO-R)
Connect to a TV with video and audio inputs.
$
LINE2 (VIDEO, L-AUDIO-R)
Connect to the audio/video outputs of an external
source (VCR, Camcorder, etc.).
%
AUDIO OUT (L-AUDIO-R)
Connect to other equipment with audio inputs.
^
COMPONENT/PROGRESSIVE VIDEO OUT (Y Pb Pr)
Connect to a TV with Component Video (Y Pb Pr)
inputs.
&
COAXIAL, OPTICAL (Digital Audio Out)
Connect to an amplifier with a coaxial (or optical)
digital audio input.
*
S-VIDEO OUT
Connect to a TV with an S-Video Input.
(
AC Power Cord
Plug into a power outlet.

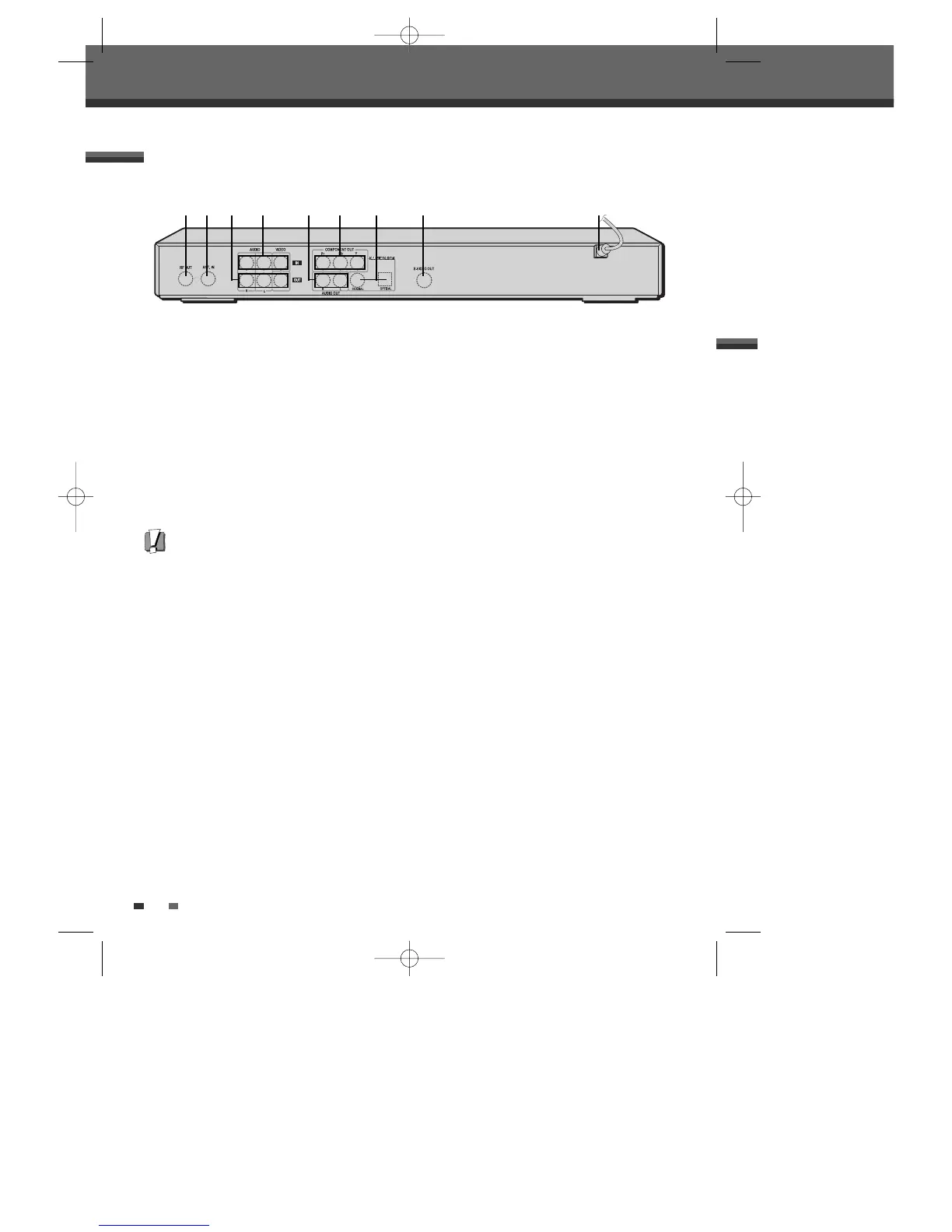

Rear panel
Identification of Controls
! @ * ($
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to
the DVD Recorder.
# ^% &
