Daewoo DWF-5590DP Series User Manual

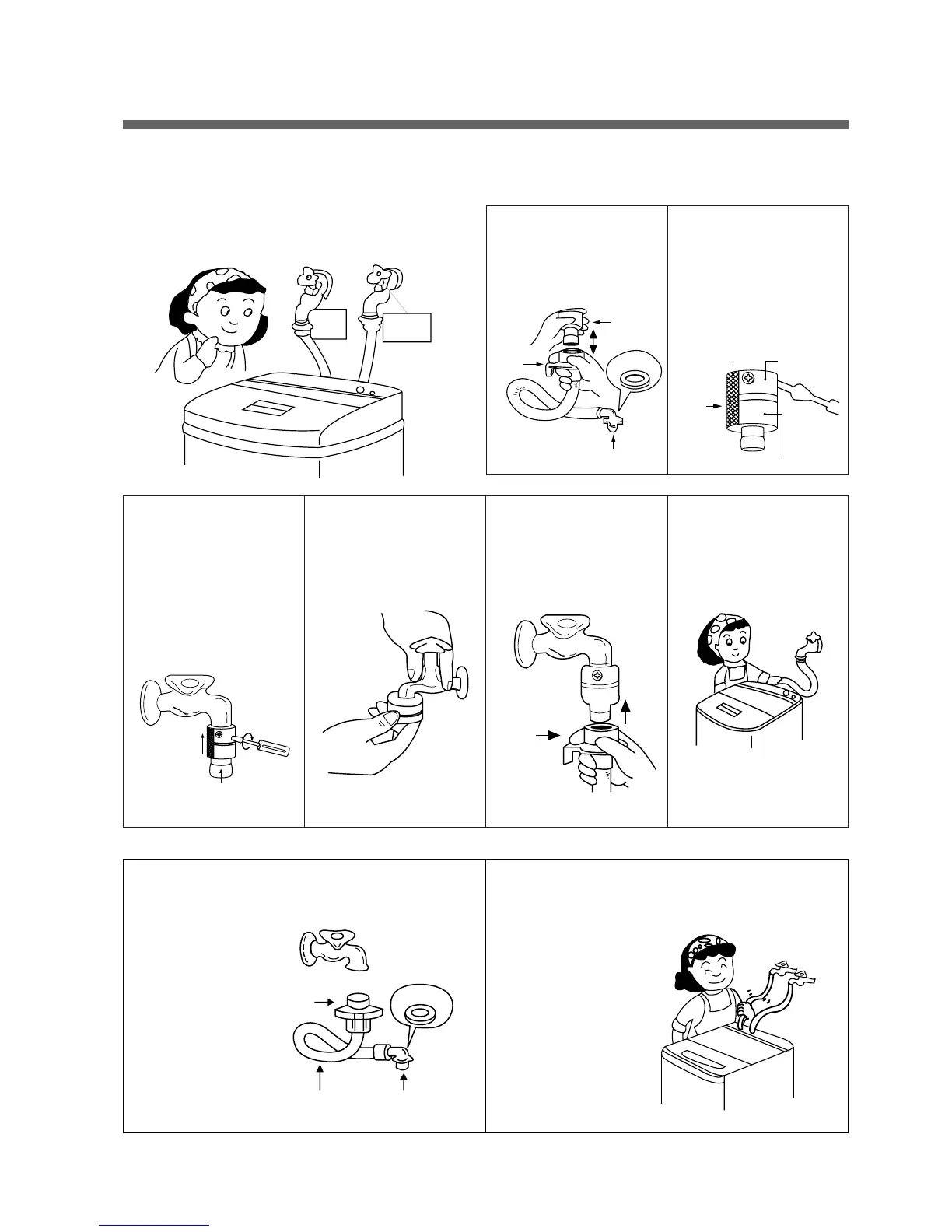

HOW TO CONNECT THE INLET HOSE
IN INSTALLING THE INLET HOSE
Be careful not to mistake in supplying hot and cold
water.
In using only one water tap, connect the inlet hose to the
cold water inlet.
14
!
Connect the inlet
hose to the water tap
by screwing the
connector D tightly.
Hose
Connector C
Connector D
Rubber
Packing
@
Connect the connector C of the inlet hose to the
water inlet of the washer by turning it clockwise to
be fixed tightly.
• Please check the
rubber packing
inside the connector
C of the inlet hose.
!
Pull down the collar
of the inlet hose to
separate it from the
water tap adapter.
Water Tap
Adapter
Rubber
packing
Connector C
Collar
@
Loosen the four
screw at the water
tap adapter, but
don't loosen the
screws until they are
separated from the
water tap adapter.
Connector A
Tape
Connector B
Tap
Adapter
#
Connect the water
tap adapter to the
water tap, and tighten
the four screws
evenly while pushing
up the adapter so that
the rubber packing
can stick to the water
tap tightly.
@
!
Connector B
$
Remove the tape,
and screw connector
B into connector A
tightly.
%
Connect the inlet
hose to the water tap
adapter by pulling
down the collar of
the hose end.
Collar
^
Connect the con-
nector C of the inlet
hose to the water inlet
of the washer by
turning it clock-wise
to be fixed tightly.
• Please check the rubber
packing inside the
connector C of the inlet
hose.
Hot
Water
Cold
Water
• FOR SCREW-SHAPED TAP
