HOW TO INSTALL THE DRAIN HOSE (FOR DWF-5590DP SERIES)
NOTE IN USING THE DRAIN HOSE
Never forget to install drain hose before operating this washing machine.
There are a drain hose, a hose clamp, a hose fixture and a hose guide in the washing machine.
NOTES:
1. Keep the drain hose fixed tightly in the hose fixture, or let the highest point of the drain hose be more than 1m above
the floor.
If not so, the water in the washer could be drained during operation
2. Be sure that the height of the drain hose must be less than 1.5m above the floor.
If not so, the water in the washer could not drain.
3. The hose guide MUST be fitted to the drain hose. The drain hose sould not extend more than 55mm from the end of
the hose guide. This is to prevent ‘SYPHONING’.
If necessary the drain hose can be trimmed to length.
16
!

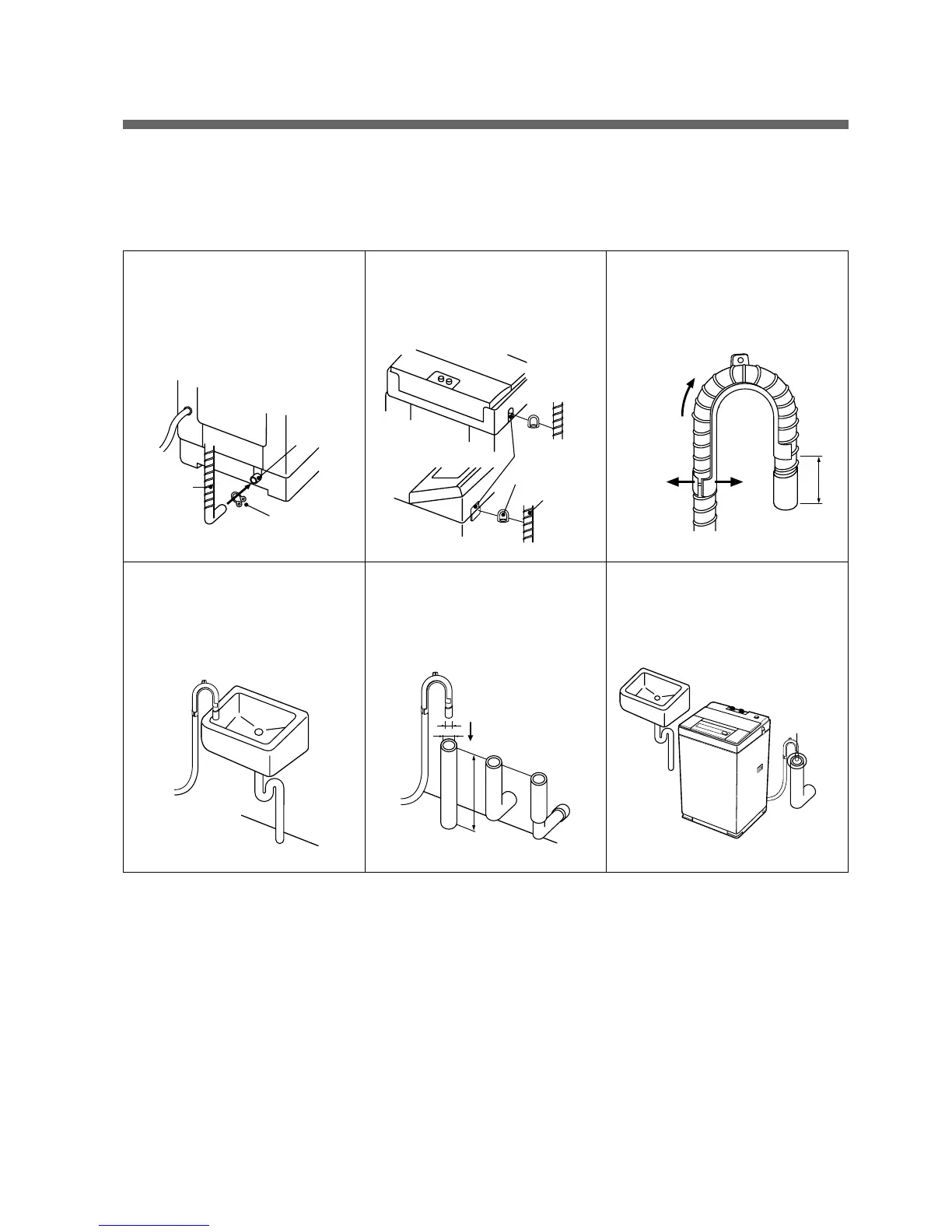

Connect the drain hose to the
drain outlet at the back side of
the washing machine, and
fasten it tightly with the clamp
supplied.
@
Insert the hose fixture into hook
hole at the side of the body,
and fix the drain hose by
inserting it into the hose fixture.
Hose Clamp
Drain Output
Drain hose
Hook Hole
Hose Fixture
Drain Hose
#
Attach the hose guide, included
in the accessory kit, to guide
the drain hose over the tub or
standpipe.
55 mox
Pull Hose
through
Flex. Hose
Guide
apart
$
Hook the drain hose to the
edge of the tub, paying
attention that there are no
bends or constractions along
the drain hose.
Or, connect the drain hose to a
standpipe of a diameter greater than
that of the drain hose and at a height
of min. 70cm.
70cm min
%
Position the washing machine
next to the wall.
MUST be
ventilated
