Daewoo G424 LP - Piston And Connecting Rod; Removal and Installation

G424 Service Manual Base Engine Service Procedure154

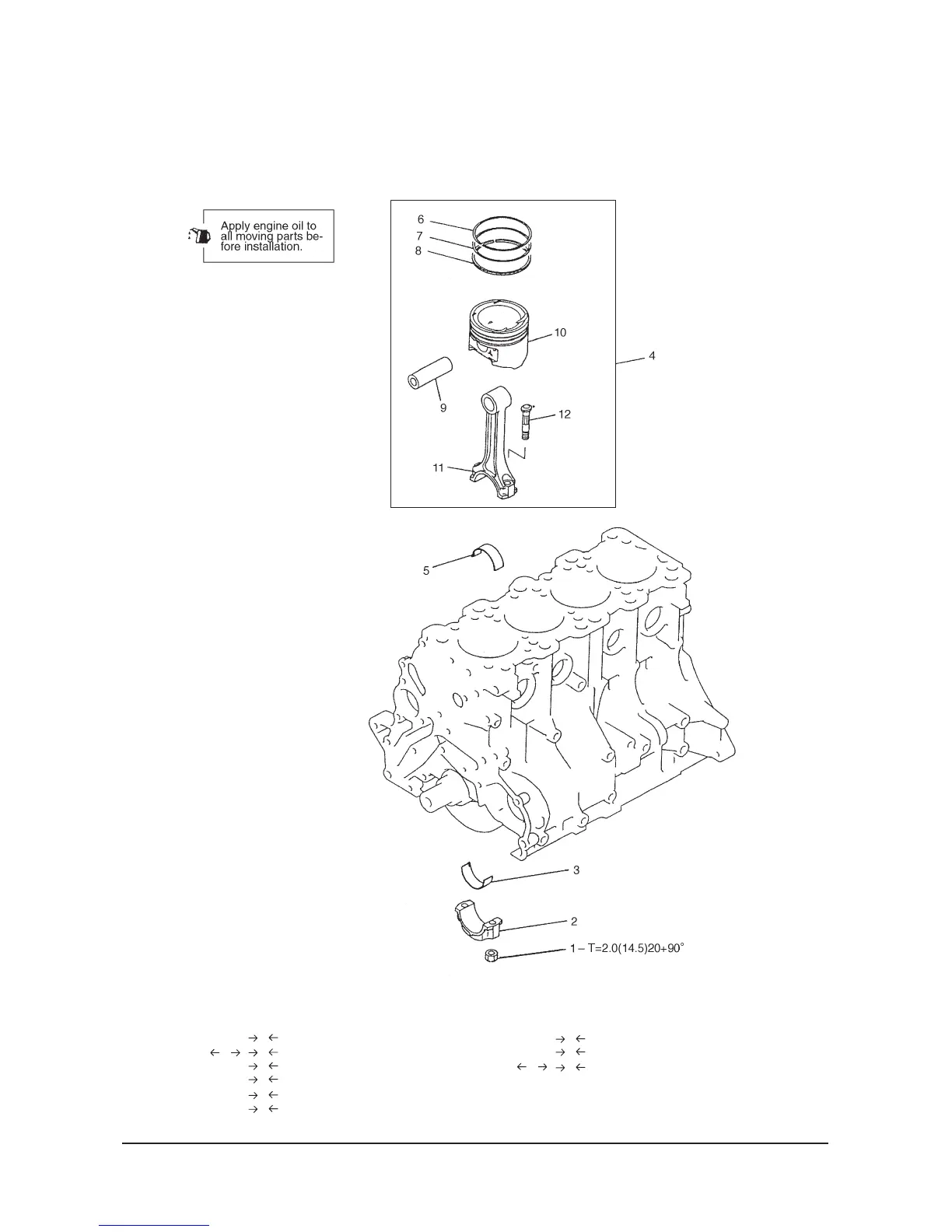

Piston And Connecting Rod
Removal and Installation
Removal steps
1. Nut
2. Connecting rod cap
3. Connecting rod bearing
4. Piston and connecting rod assembly
5. Connecting rod bearing
6. Piston ring No. 1
7. Piston ring No. 2
8. Oil ring
9. Piston pin
10. Piston
11. Connecting rod
12. Bolt
C
B
AB
G
F
E
D
E
C
A
6EN1899
