Daewoo G424 LP - Electrical System; Wiring Diagram (Gasoline Engine)

G424 Service Manual Engine System30
Electrical System
Stating motor is of the gear reduction type.
Distributor is of a breakerless type and employs the
ignition advancer which uses jointly centrifugal type
and vacuum type.

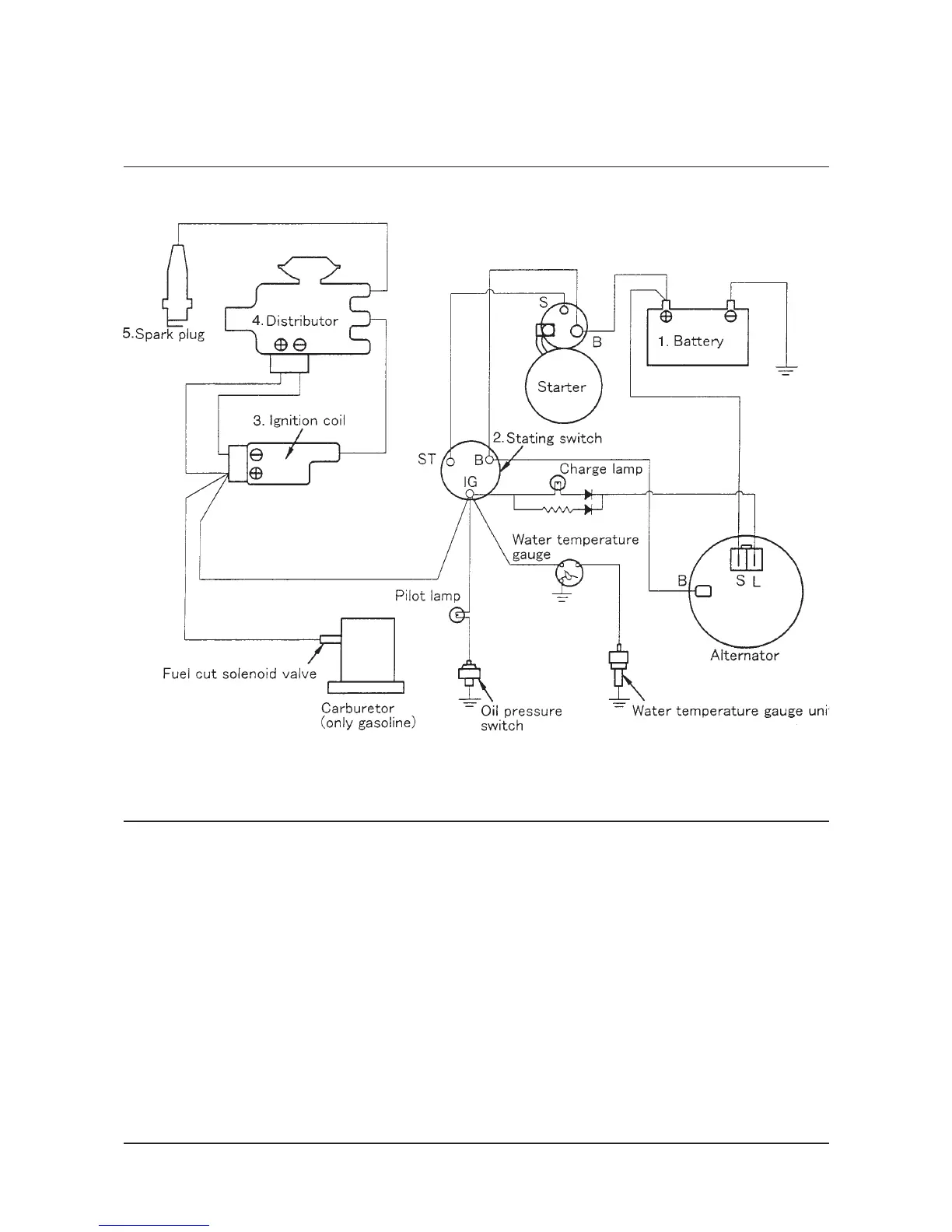

Wiring Diagram
(Gasoline Engine)
