Daewoo G424E - Electrical Connections

G420E/G424E Tier LP Engine Electrical Connections 61

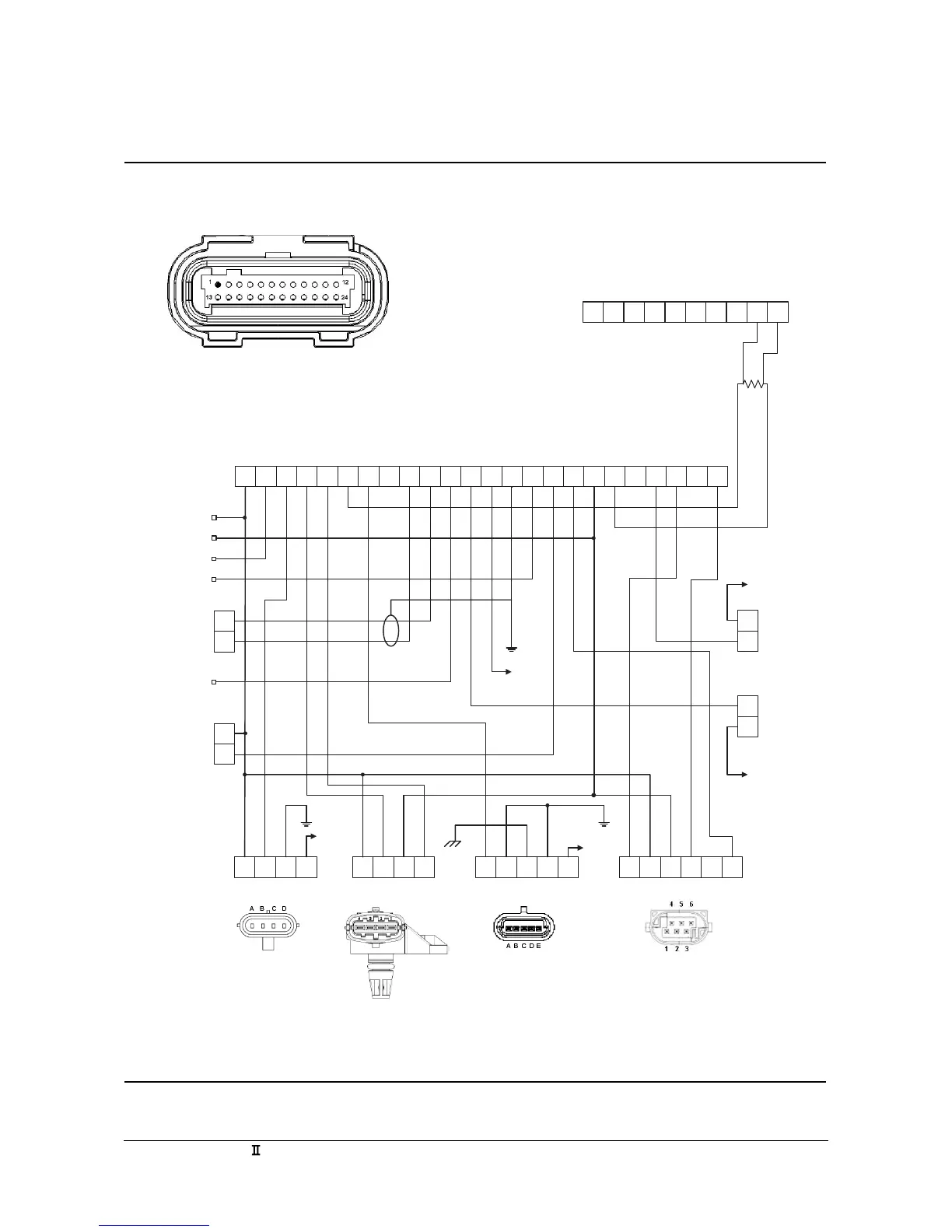

Figure E2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
SECM CONNECTOR
BA
COOLANT SENSOR
1 2
VR SENSOR
321
ELECTRONIC THROTTLE
4 5 6CBA
SMART COIL
D
A B
FUEL LOCK-OFF
A B
FUEL TRIM VALVE
2 3 4
TMAP SENSOR
1B C D
OXYGEN SENSOR
A E
R01
120OHM
XDCRGND APP2 O2Sensor
IAT MAP
CAN1+ CoilDriveSignal
VRSensor+
VRSensor-
MIL- FTV- SECMPWR+12vdc SECMGND APP1 ECT TPS1 XDCRPWR+5vdc CAN1- Lock-OffGND ETCDriver+ ETCDriver-
+12VDC
CAN1- CAN1+
MIL-
APP
PWR
APP
GND
APP1
APP2
SECM CONNECTOR
(MALE)
DCBA KJ
H
GFE
CAN BUS
CONNECTOR
(FEMALE)
+12VDC
+12VDC
+12VDC
+12VDC
