Maintenance Section
-144-
Fuses, Bulbs, Circuit Breaker &
Relay - Change, Reset
Fuses
NOTE: If a fuse filament separates, use only the
same type and size fuses for replacement.
If the filament in a new fuse separates,
have the circuits and instruments checked.
NOTICE
Always replace fuses with ones of the correct
ampere rating.

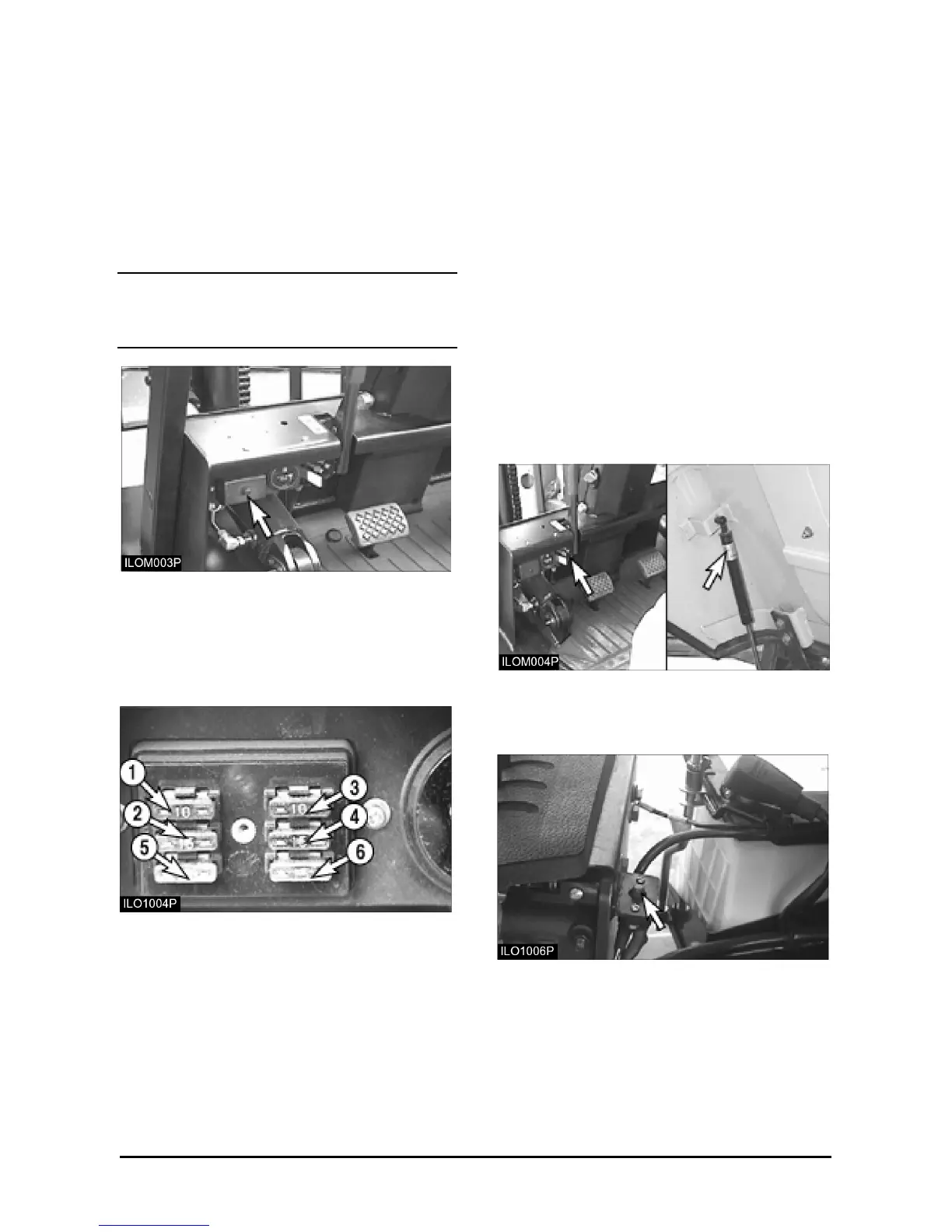

Remove the front cover from the fuse box located
under the cowl.
Fuse - Protects an electrical circuit from an
overload. Opens (filament separates) if an overload
occurs.
Typical Example
Check the fuses. Use a flashlight, if necessary.
Fuses are identified as follows:
1. Horn - 10 amps.
2. Head/Rear Lamp - 15 amps.
3. Fwd./Rev. Solenoid, lamp Relay & Back-up
Lamp/alarm - 10 amps.
4. Instrument Panel & Fuel Shutoff - 15 amps.
5. Turn Signal Lamp, Stop/Strobe Lamp & C.S.D.
(DB33A Diesel only) - 15 amp.
6. Start Relay - 5 amp.
Bulbs
Bulbs are identified as follows:
1. Bulb-head lamp halogen (12V-35W)
*2. Bulb-back up (12V-10W)
*3. Bulb-turn signal (12V-23W)
*4. Bulb-stop & tail (12V-23/8W)
*Optional lamp or light
Circuit Breaker
1. Raise the hood and seat assembly. Make sure
the support cylinder securely holds the hood
open.
2. The main circuit breaker is located on the rear
of the support for the hydraulic controls.
NOTE: To reset circuit breakers push in on the
button. The button should stay in if the
breaker is reset. If the button will not stay in,
or comes out shortly after reset, have the
circuits checked.
