Maintenance Section
-159-

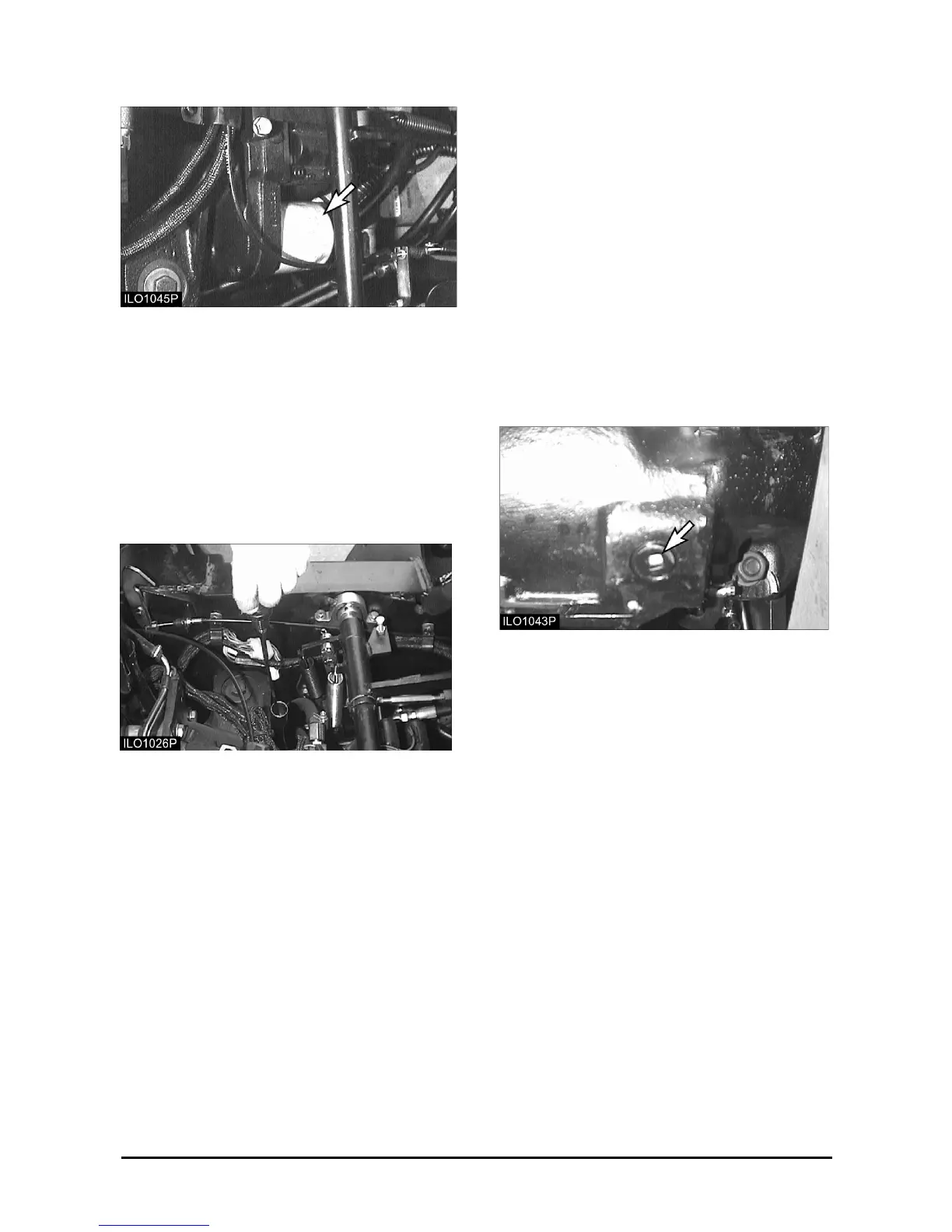

3. Remove the floor mat and the floor plate.
Remove and discard the oil filter.
4. Wipe off the filter base. Make certain that all of
the old seal is removed.
5. Apply a small amount of clean oil on the seal of
the new filter.
6. Install the filter by hand. When the filter
contacts the base, tighten an additional 3/4
turn.
7. Remove the dip stick/filter cap. Fill the
compartment with oil. See “Refill Capacities”.
Install the dip stick/filter cap.
8. Start the engine.
9. With the service brake applied and engine at
low idle, shift the direction control lever to
forward and reverse to fill the clutches.
10. Shift the direction control lever into NEUTRAL.
Engage the parking brake.
11. Remove the dip stick/filter cap. Observe the oil
level.
12. Maintain the oil level between the Min and Max
marks on the dip stick/filter cap.
When the oil temperature is 40°C approximately,
the cold side mark on the dipstick is applicable.
When the oil temperature is 80°C approximately,
the hot side mark on the dipstick is applicable.
13. Check for oil leaks at the filters and drain plug.
14. Stop the engine. Install the floor mat and floor
plate.
Drive Axle Oil - Change
Park the lift truck on a level surface. Apply the
parking brake. Place the directional control lever in
NEUTRAL and stop the engine.
1. Remove drain plug. Allow the oil to drain into a
suitable container. Clean the magnetic drain
plug. Check O - ring seal and replace if
necessary.
2. Install the drain plug.
3. Remove the dip stick/filter cap.
Fill the drive axle housing with oil.
See “Refill Capacities”.
4. Start the lift truck.
With the engine at low idle, place the directional
control lever to the NEUTRAL.
5. Maintain the oil level between lower mark and
upper mark on the dip stick/filter cap.
