EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
5-6
©
200518
Draining and filling
5
ΧΦ65/65 (II) series
5.5 DRAINING AND FILLING THE GEARBOX
To prevent skin injury, avoid
unnecessary contact with the
drained oil.

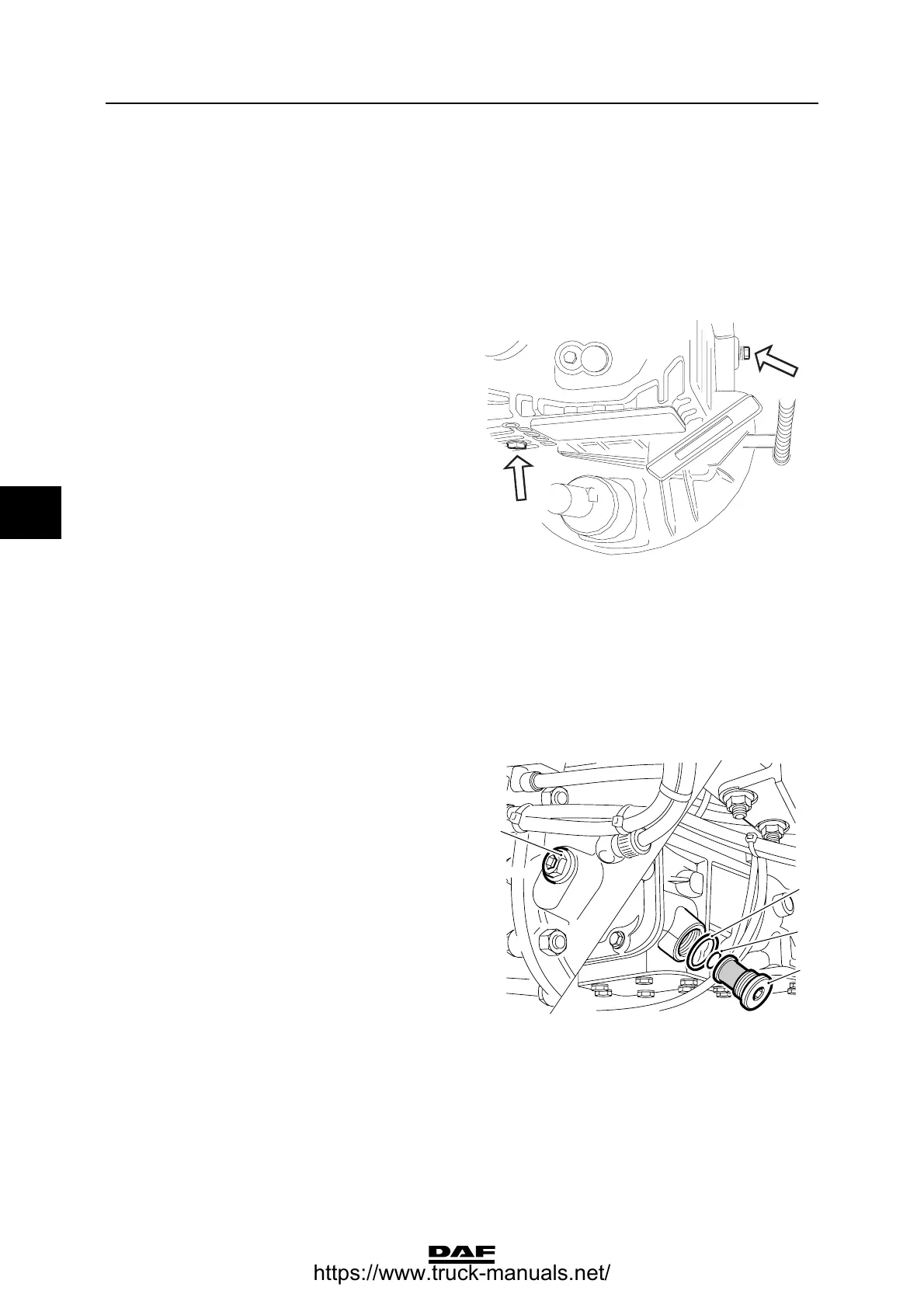

ZF 6S-850 gearbox
Draining the gearbox
1. Place the vehicle on a level and horizontal
surface.
2. Drain the gearbox at operating temperature
using plug (B).
Filling the gearbox
1. Clean the drain plug and fit it, tightening to
the specified torque; see "Technical data".
2. Fill the oil through level check/filler opening
(A) until the oil reaches the rim of the filler
opening.
3. After filling the gearbox, tighten the level
check plug to the specified torque; see
"Technical data".
Eaton 6309A gearbox
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
Draining the gearbox
1. Place the vehicle on a level and horizontal
surface.
Note:
Drain the gearbox at operating temperature.
2. Remove the combined drain plug/oil strainer
(4) and level check/filler plug (1) and drain
the oil.
3. Clean the oil strainer (4) in a suitable solvent
and dry thoroughly.
Filling the gearbox
1. Check and replace the O-ring (3) and the
sealing ring (2), if necessary.
2. Fit the combined drain plug/oil strainer,
tightening it to the specified torque; see
"Technical data".
}
B
M3038
A
}
1
2
3
4
V3 00 376
