1EXTERNAL CAB COMPONENTS
Inspection and adjustment LF45/55 series
3-2

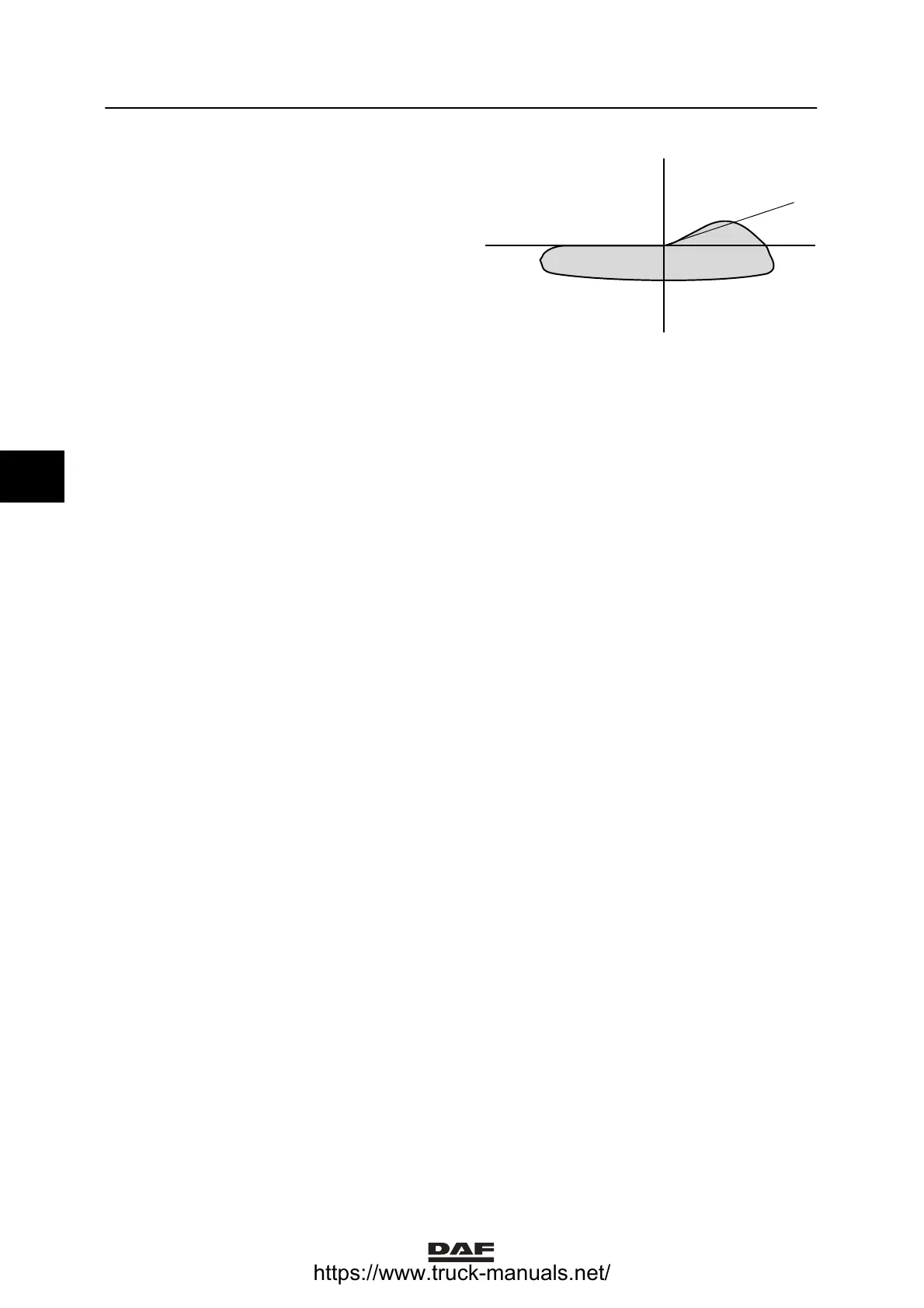

3. As clear headlight glass is used the image
of the asymmetrical light beam deviates
slightly from the usual image. The beam of
light is not a straight line that slants
upwards, but is slightly convex.
4. Adjust the headlight in such a manner that
the intersection of the convex and the
horizontal light beam coincides with the
intersection of the asymmetrical diagonal
and the horizontal adjustment line. It does
not matter that the light beam convex is
above the asymmetrical diagonal.
K1 01 473
