LF45/55 series Removal and installation
INTERNAL CAB COMPONENTS
4-1
4. REMOVAL AND INSTALLATION
4.1 REMOVAL AND INSTALLATION, SWITCHES
Removing switches

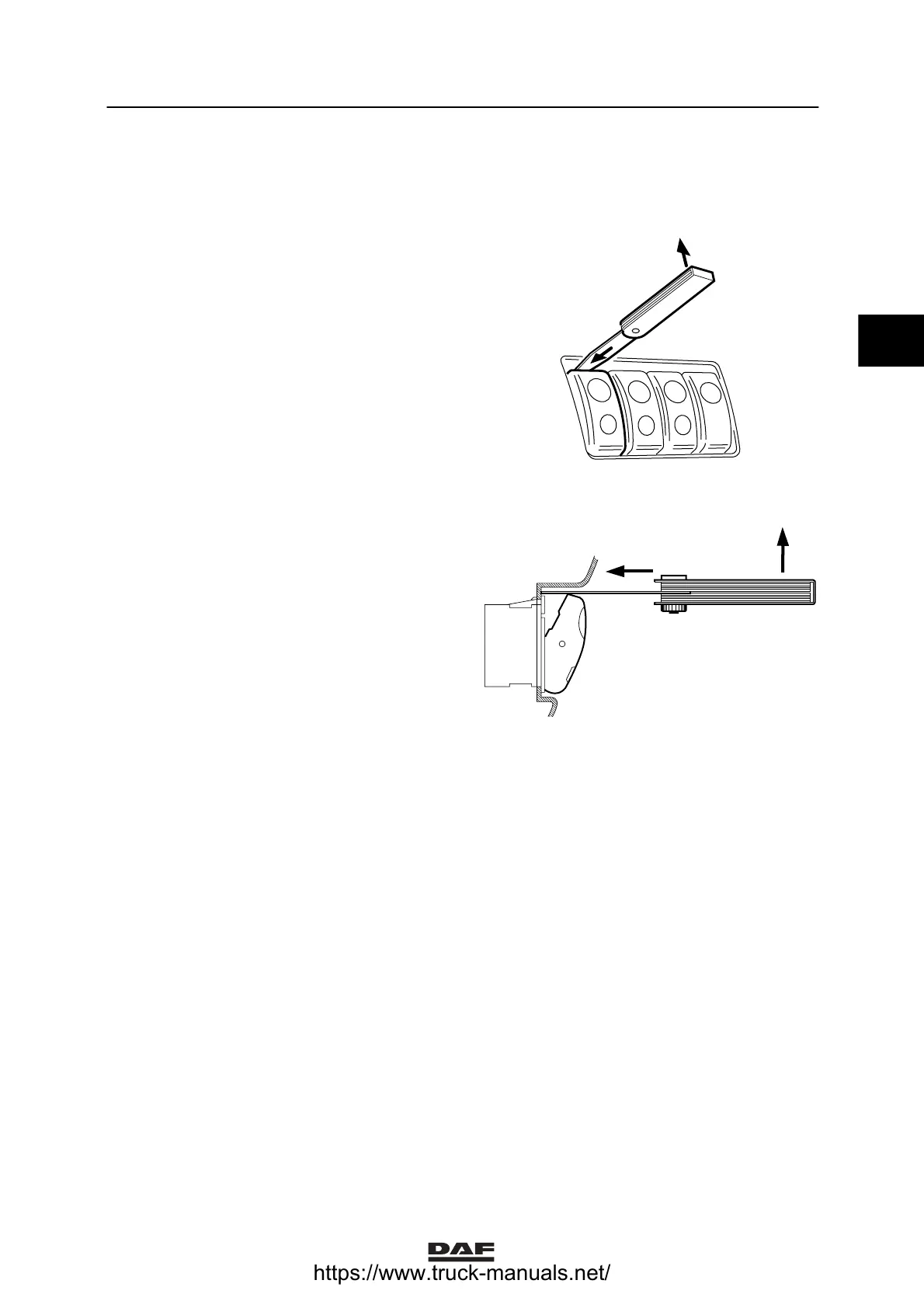

1. Insert a feeler gauge of approx. 1 mm
straight between the switch and the panel at
the side of the finger-sized depression (A),
until it touches the inside of the panel.
2. Remove the switch from its locked position
by carefully moving the feeler gauge in the
direction of the arrow (B).
3. Carefully remove the switch from the panel.
In doing so, ensure that the connector lock
does not catch behind the panel, causing
the connector to fall behind the panel.
4. If necessary, remove the switch from the
connector.
A
B
K1 01 186
Installing switches
1. Fit the connector.
2. Insert the switch into the opening in the
panel and press until you can feel it lock.
K100389
A
B
2
ǹ 0210
