LF45/55 series Removal and installation
INTERNAL CAB COMPONENTS
4-7

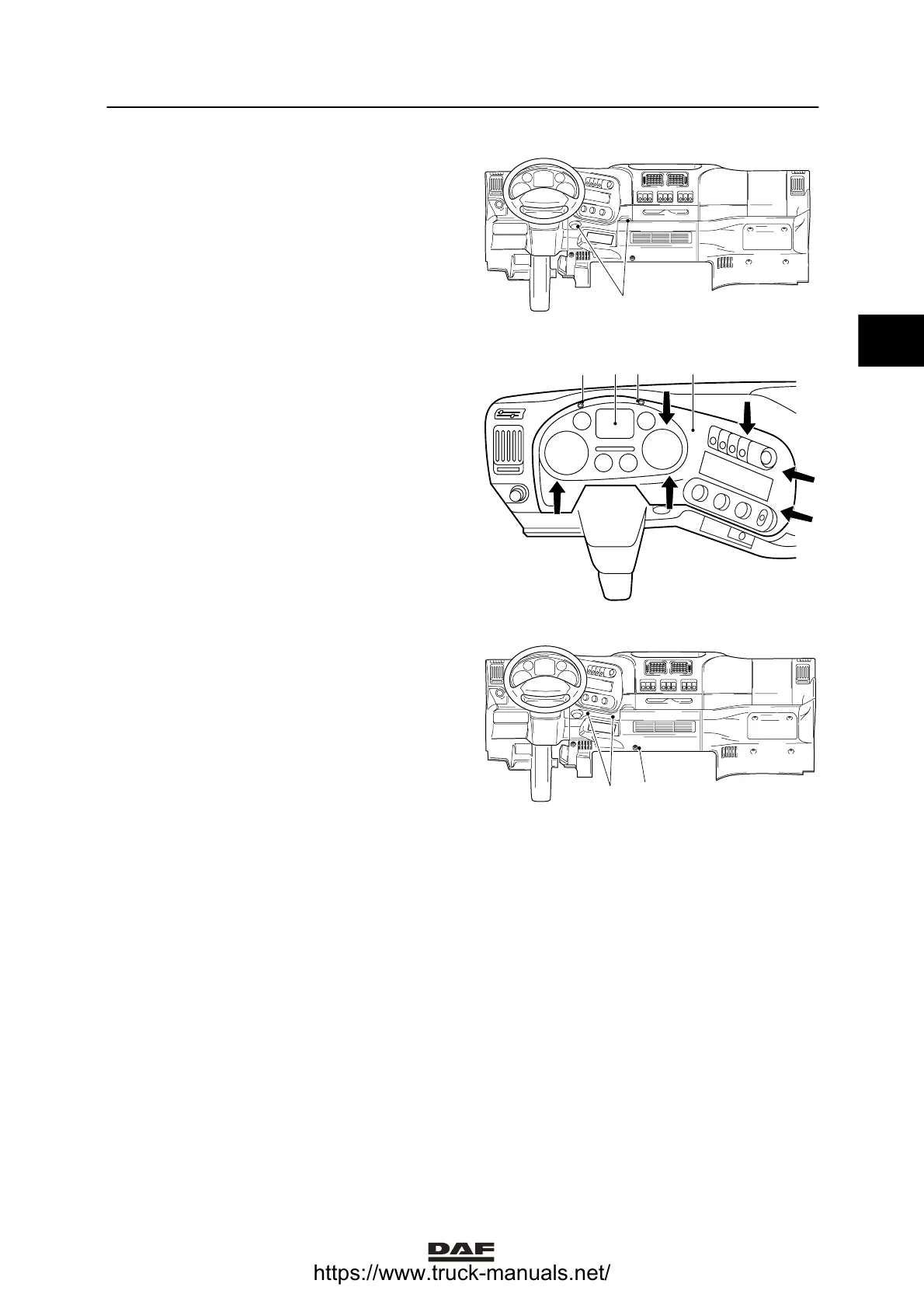

Fitting the lower dashboard panel on driver’s
side
1. Fit the connector block to the rear of the
dashboard panel using the attachment
bolts.
2. Fit the connector of the headlamp height
adjustment unit to the dashboard panel.
3. Fit the dashboard panel using the
attachment bolts (1).
K1 01 431
1
Installing the instrument panel
1. Fit the connector of the instrument
panel (3).
2. Fit the instrument panel (3) to the
dashboard panel using the attachment
bolts.
3. Push the garnish moulding (2) back onto
the dashboard panel using the mounting
clips. Fix the garnish moulding (2) onto the
dashboard panel using the attachment
bolts (1)
K1 01 430
1
1
2
3
Fitting the engine tunnel dashboard panel
1. Remove the attachment bolts (1) and the
panel plugs (2). Remove the engine tunnel
cover panel.
2. Fit the connector of the 12V power supply to
the rear of the engine tunnel dashboard
panel.
K1 01 429
21
2
ǹ 0210
