Removal and installation
5
ΞΦ95 series
Version with steel reservoir

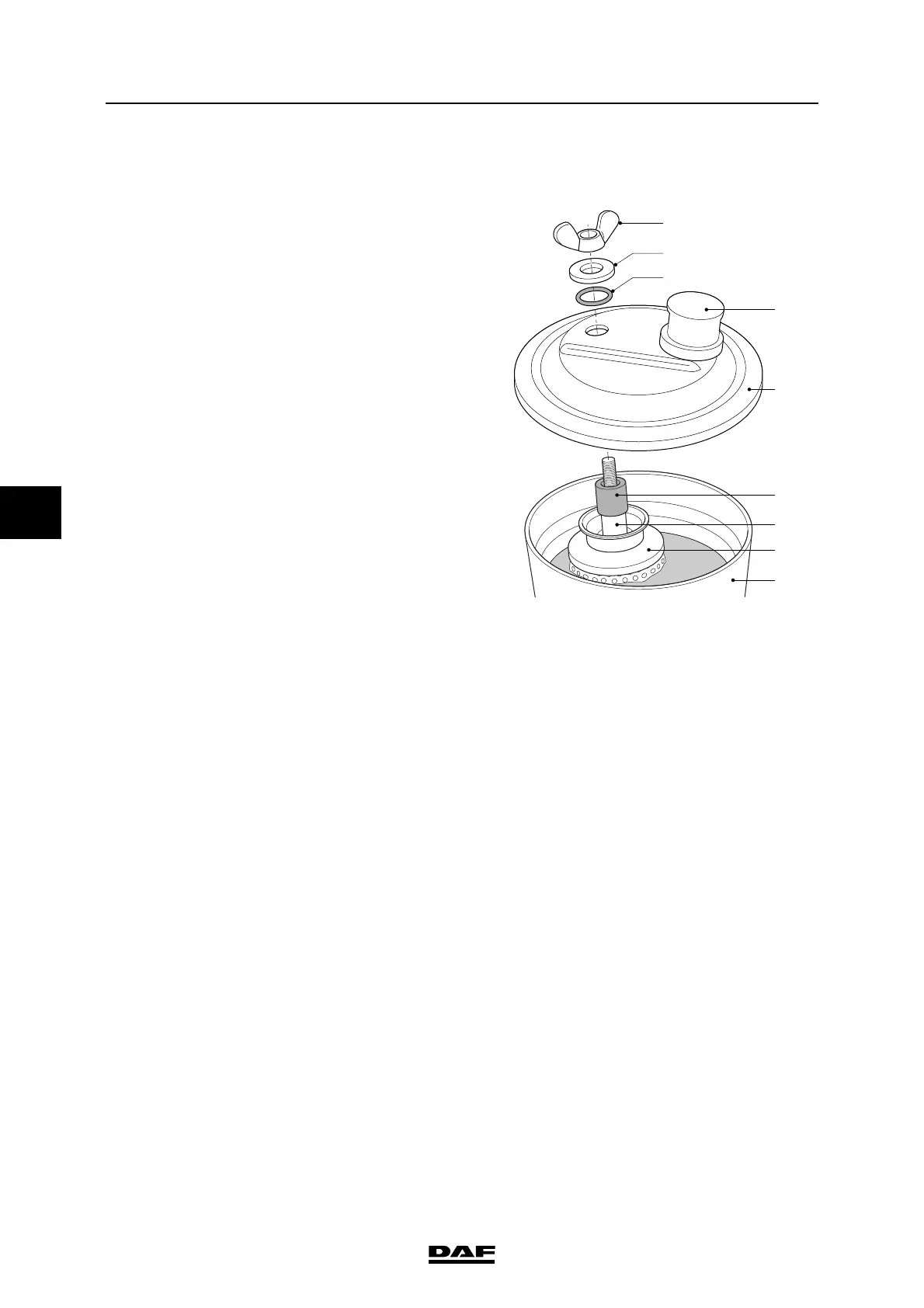

Removing the steering gear filter element
1. Clean the reservoir cover, so that absolutely
no dirt can get into the reservoir.
2. Remove the wingnut (1).
3. Remove the steel ring (2) and the sealing
ring (3).
4. Remove the cover (5).
5. Remove the rubber bush (6) and steel
bush (7).
6. Slowly remove the filter element (8) from the
reservoir (9).
Note:
The filter element must be removed from the
reservoir with care so that no dirt remains in
the reservoir.
Installing the steering gear filter element
1. Fit a new filter element (8) into the
reservoir (9).
2. Fit the spacer sleeve (7).
3. Check the flexibility of the rubber bush (6)
and replace if necessary. Install the rubber
bush (6).
4. Check the sealing ring on the cover (5) and
replace if necessary. Fit the cover (5).
5. Check the rubber ring (3) and replace if
necessary. Install the rubber ring (3) and
steel ring (2).
6. Fit the wing nut (1).
7. Check the fluid level using the dip stick (4).
S7 00 720
