200423 3-7
Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΞΦ95 series
5
3.8 INSPECTION AND ADJUSTMENT, DEB PLAY
1. Remove the valve covers, see chapter
"Removal and installation".
2. Tighten the DEB attachment bolts to the
specified torque, see main group "Technical
data".
3. Using special tool (DAF no. 1310477), crank
the engine in the direction of rotation until
cylinder 1 has reached the top dead centre
(TDC) and the valves of cylinder 6 are in
overlap position.

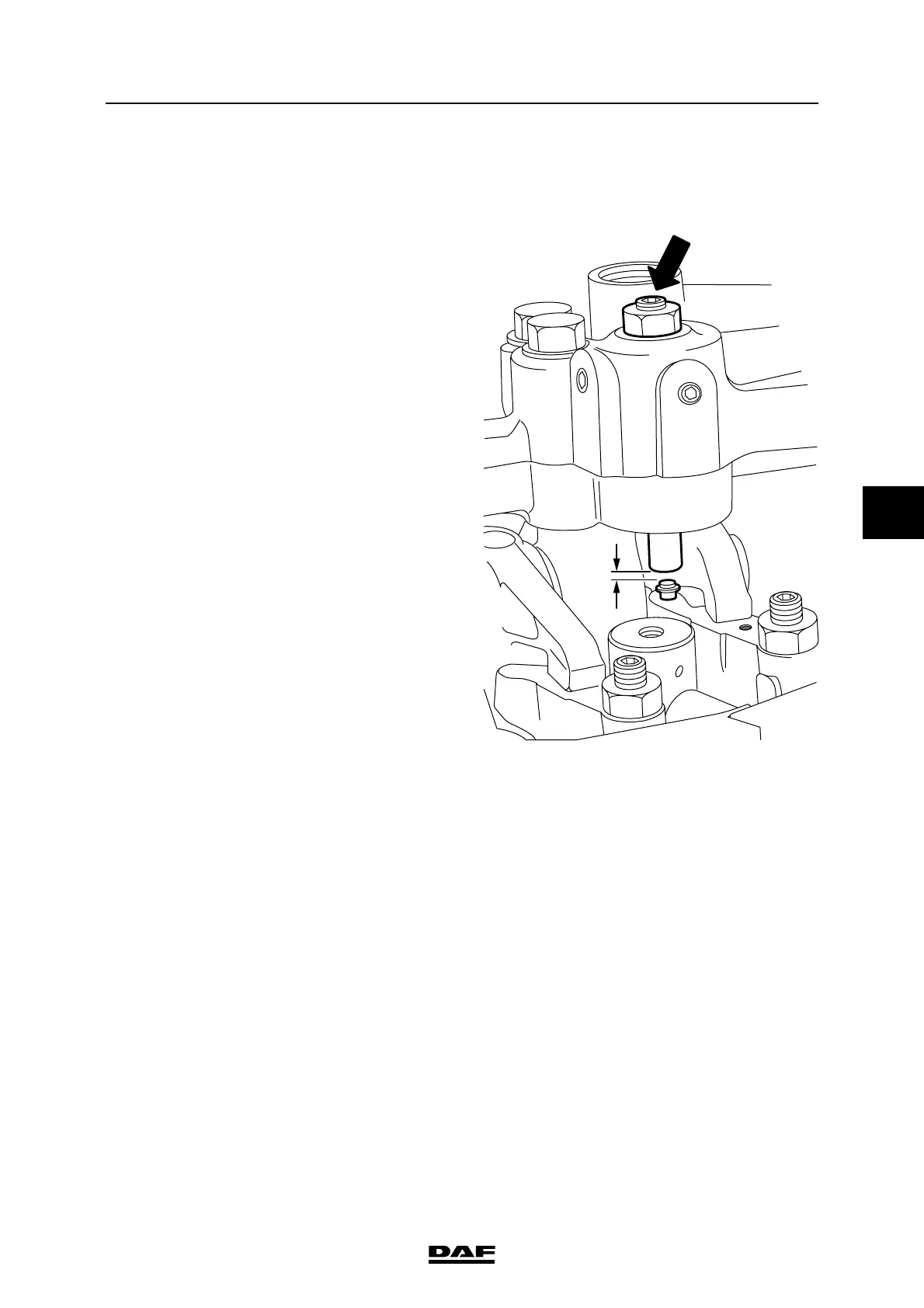

4. Use set screw (B) to set the DEB clearance
(A) of cylinders 1, 3 and 5, see main group
"Technical data".
5. Then tighten set screw (B) to the specified
torque, see main group "Technical data".
6. Using special tool (DAF no. 1310477), crank
the engine in the direction of rotation until
cylinder 6 has reached the top dead centre
(TDC) and the valves of cylinder 1 are in
overlap position.
7. Use set screw (B) to set the DEB clearance
(A) of cylinders 2, 4 and 6, see main group
"Technical data". Then tighten set screw (B)
to the specified torque, see main group
"Technical data".
8. Fit the valve covers, see chapter "Removal
and installation".
3.9 CHECKING THE POLY-V-BELT
1. Check the poly-V-belt for damage and signs
of serious wear.
B
A
i 400166
