EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
6-2
©
200423
Cleaning
5
ΞΦ95 series
6.2 CLEANING RADIATOR AND INTERCOOLER
Inhalation of dust may have serious
consequences for your health.
Take the necessary precautions,
such as wearing goggles and a
facemask.

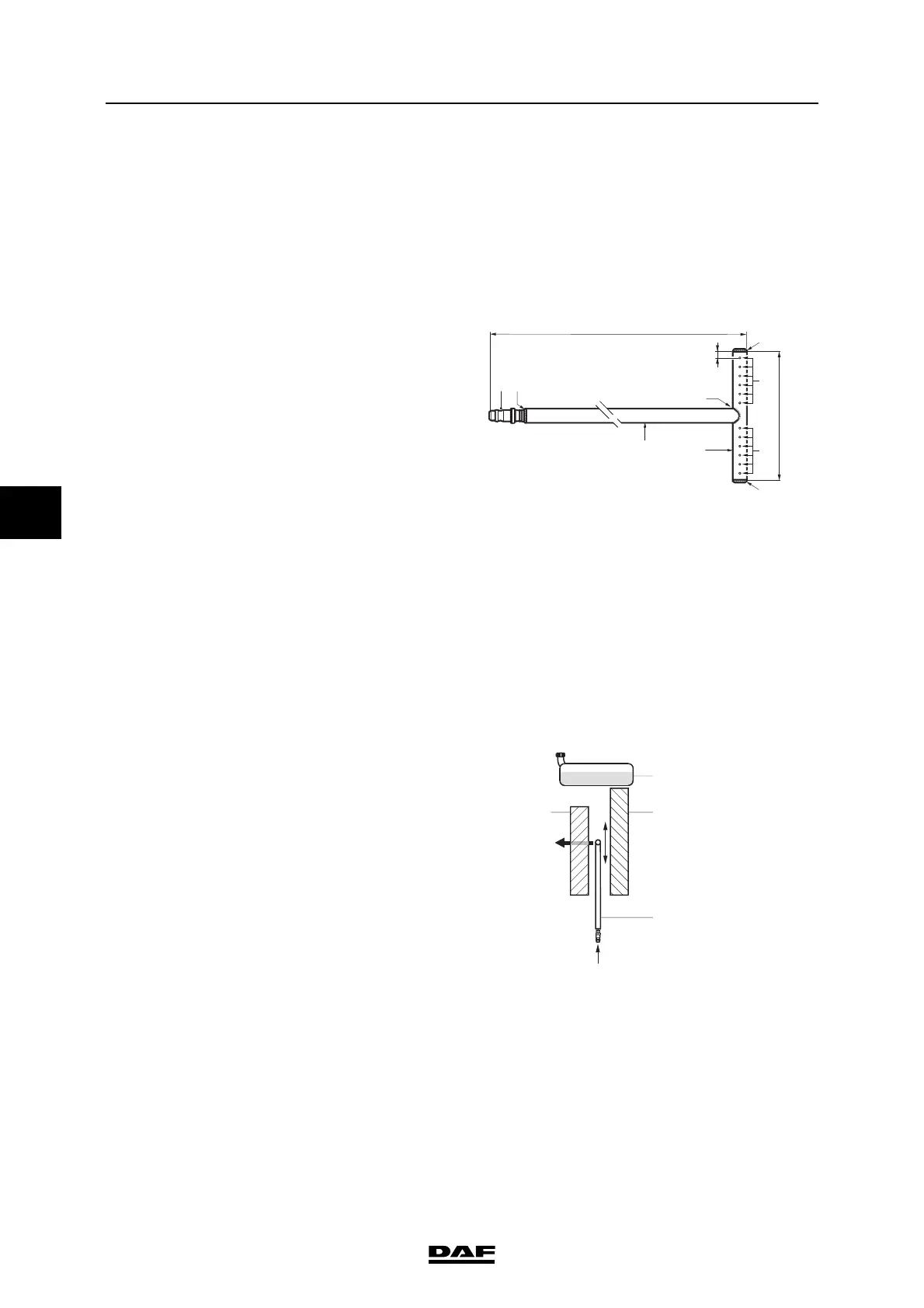

Key to drawing:
Note:
With the aid of a simple tool, the radiator and the
intercooler can be blow-cleaned.
The tool (radiator cleaner) cannot be ordered
from DAF. It should be manufactured by yourself
according to the drawing.
1. Unscrew the protective screen attachment
bolts.
2. Remove the protective screen.
3. Clean the protective screen with a hard
brush, and blow-clean with compressed air.
4. Insert radiator cleaner (4) between the
intercooler (1) and radiator (2), from the
bottom upwards, with the air holes facing the
intercooler (1).
5. Apply air pressure to the radiator cleaner (4)
and continue blow-cleaning the
intercooler (1) until no more dirt comes out.
}
100mm
5mm
2
1150mm
2
4
3
5
5
4
1
1
M2108
1 Solder up
2Solder
3 Quick-release coupling for air hose
4 Steel pipe, 10 mm
56 x 1.5 mm between holes, with a
centre-to-centre distance between the
holes of 7 mm, drilled on one side
1
2
3
4
M2109
