200423 3-43
Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΞΦ95 series
5

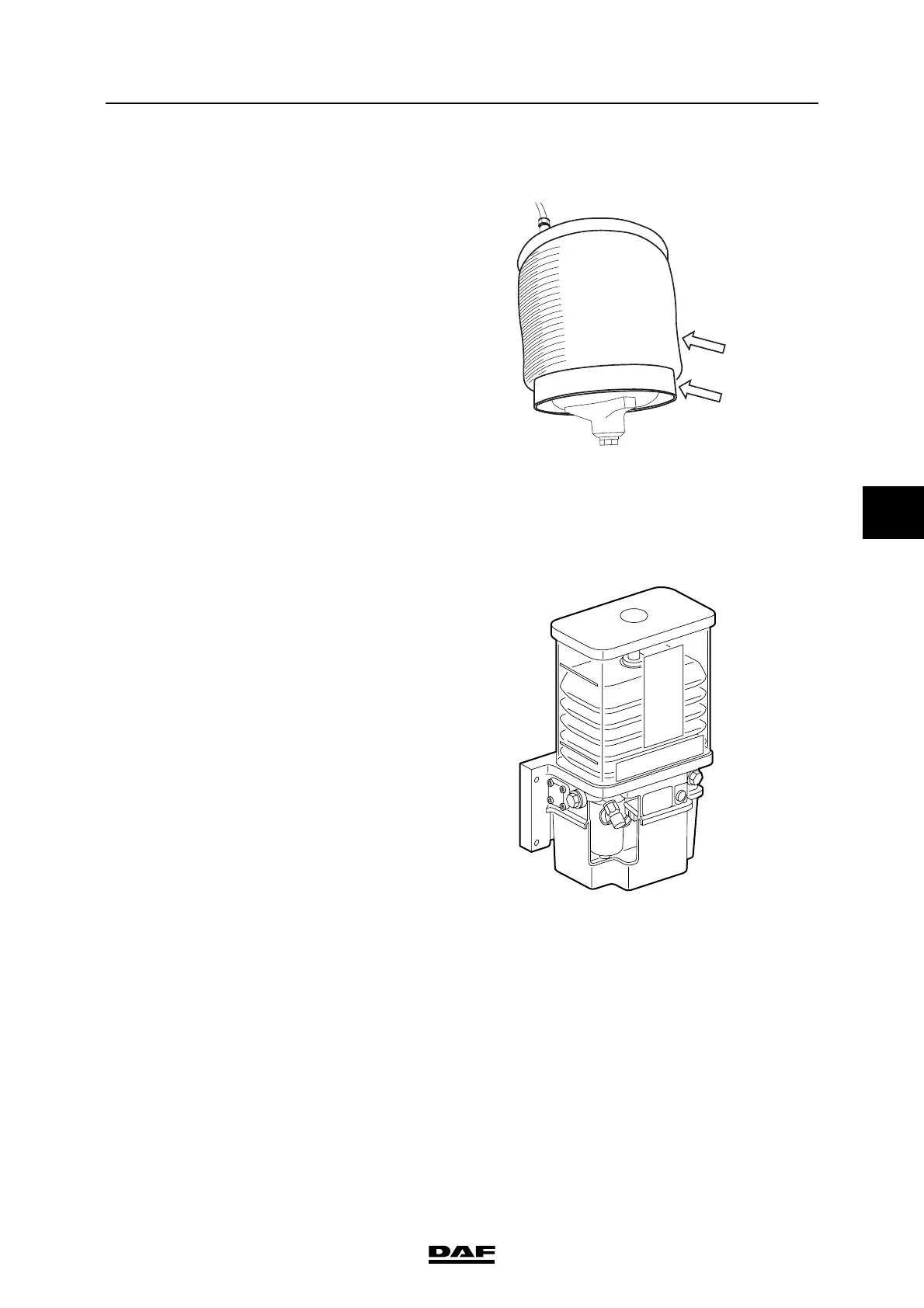

3.49 CHECKING THE AIR SUSPENSION BELLOWS
1. Raise the chassis to driving height using the
remote control.
2. Clean the air bellows using a cleaning cloth
or a soap solution, if required.
3. Check the air bellows for cracks and
damage. If there are any cracks or damage
through which the webbing is visible, the air
bellows should be replaced.
4. Check the air bellows, bellows seating and
air line connections for leaks.
Check that the air bellows are not chafing
against air lines, etc. when in the driving
position.
3.50 CHECKING THE OPERATION OF THE AUTOMATIC LUBRICATION SYSTEM
1. Check the system for line fractures and
operation of the jets.
2. Check whether all lubricating points are
lubricated.
3. Check the lubricant level in the reservoir. If
necessary, top up the reservoir, see chapter
"Draining and filling".
M9040
C900331
