Dahua Technology DH-TPC-BF5421-T - Installation Diagram 3

Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
Installation Diagram
3

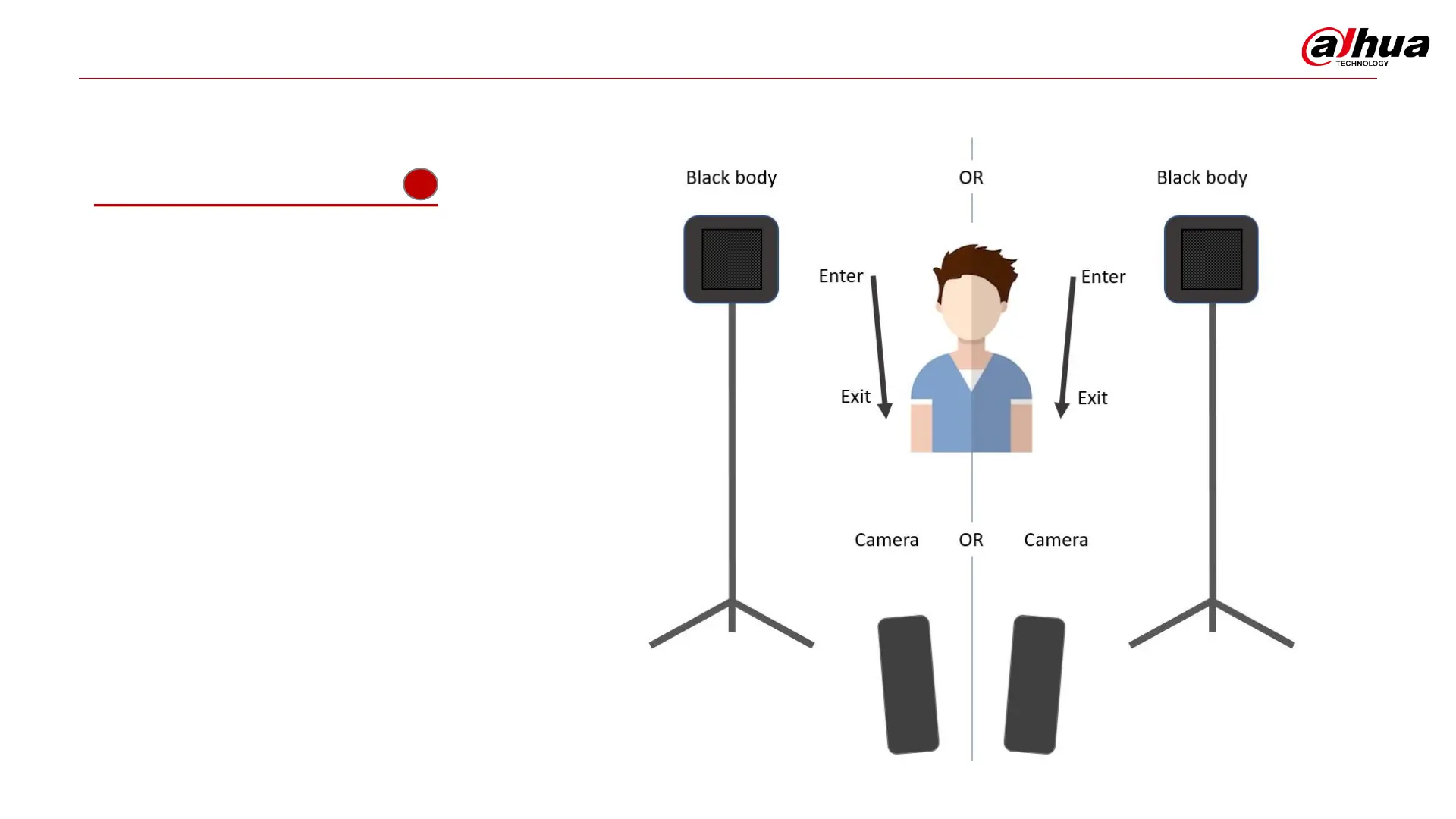

• Here it is shown how the
placement of Blackbody
and camera should be if
we need the flow to
start from left-to-right or
from right-to-left.
• It is just important that
we make sure a person
is not able t block the
line of sight between
Blackbody and camera
during the temperature
measurement.
