Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.
Poe Switch
5 Port
DH-TPC-BF5421
Ethernet Cable
IVSS7008-1I Server
230V
Ethernet Cable
230V
230V
Monitor
DHL32-F600

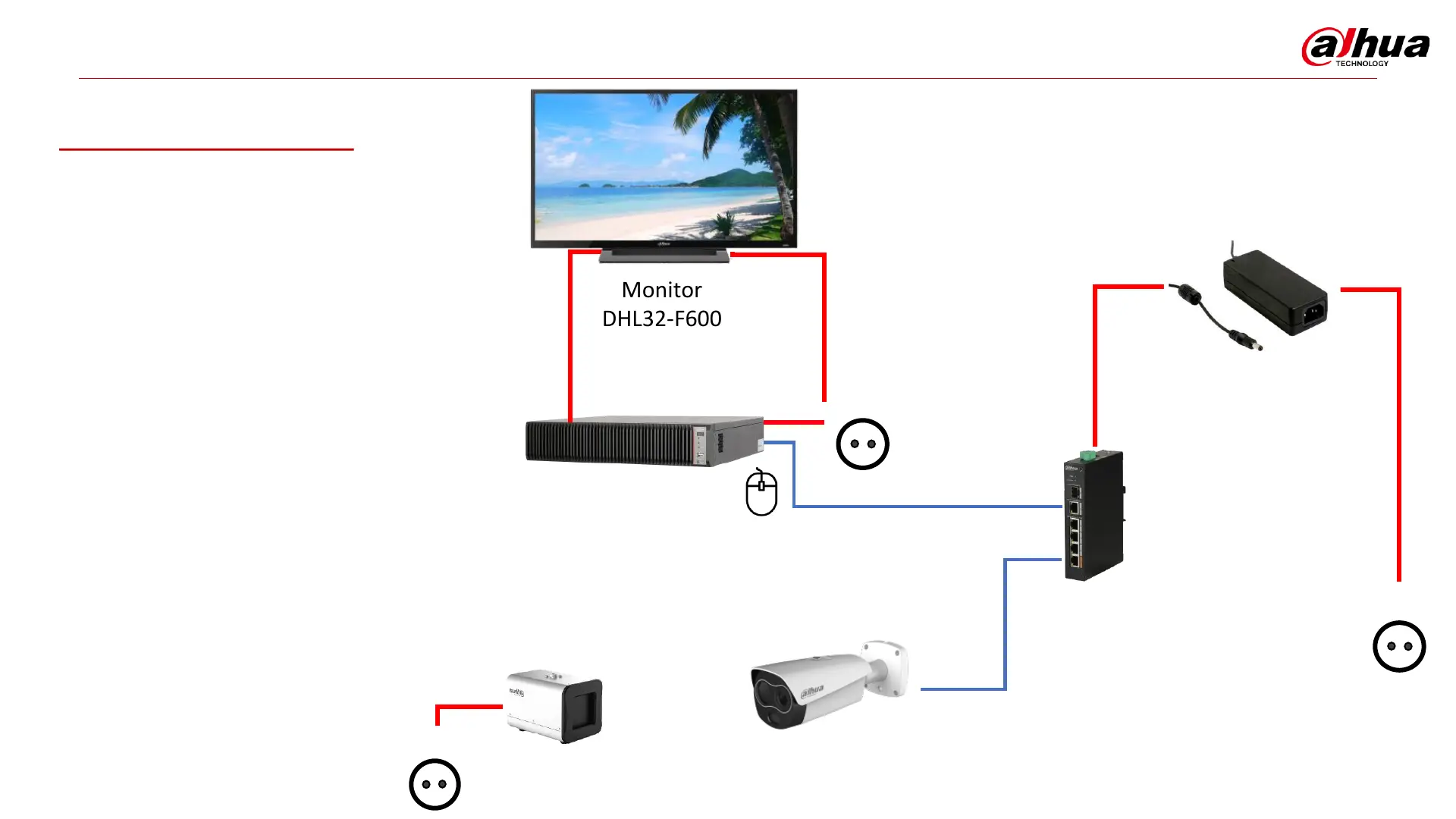

• Install the monitor and
connect it to 230V,
connect the HDMI cable
provided between
Monitor and IVSS.
• Connect the mouse
provided to control the
IVSS.
• This is how the complete
setup should look like.
• Installation is done but
might need slight
adjustment during
configuration.
Connecting monitor
Blackbody
16
