Configuration Guide

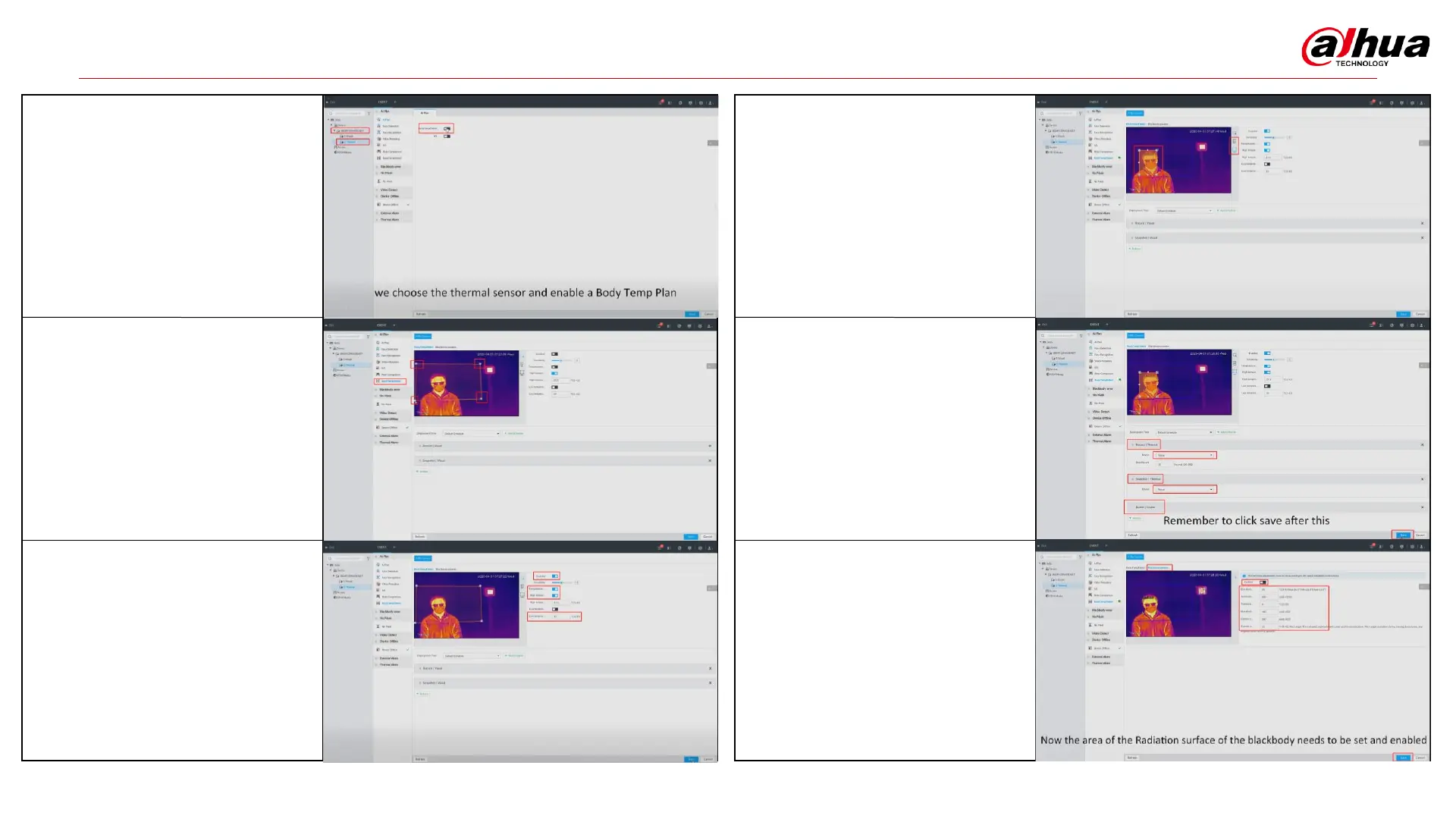

24. Capture filter needs to be
setup.
Set min. Filter size to be a little
smaller then the persons face
and max. Filter to be a little
bigger, this will make sure to
capture average faces.
25. The cameras visual sensor
needs to be recording and this
is set by clicking Record” and
choosing visual and the same
for snapshot.
We also added a buzzer for
high temperture which is
optional Click ”Save”
21. Click the camera on your
left side and click the ”Thermal
channel”.
Enable the ”BodyTempDetect”.
Click ”Save”
22. Choose BodyTempDetect
Now the detection area needs
to be defined, it should be at
the aproximated height of the
blackbody, use left click and
drag the corners as shown
23. Enable all the shown
settings,
Get a person to stand there as
a reference, and make sure
your blackbody and camera is
in the correct position or adjust
slightly. Click ”Save”
26. Next step is to enable use of
Blackbody by clicking
”Blackbody para…” in the top
and enabling it, here we also
need to specify the area of
where our Blackbody surface is.
Since all other parameter fits
our installation we just ”save”
22
