Dahua Technology DH-TPC-BF5421-T - Installation Diagram 4

Installation Guide
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without
notice. Pictures in the document are for reference only, and the actual product shall prevail.

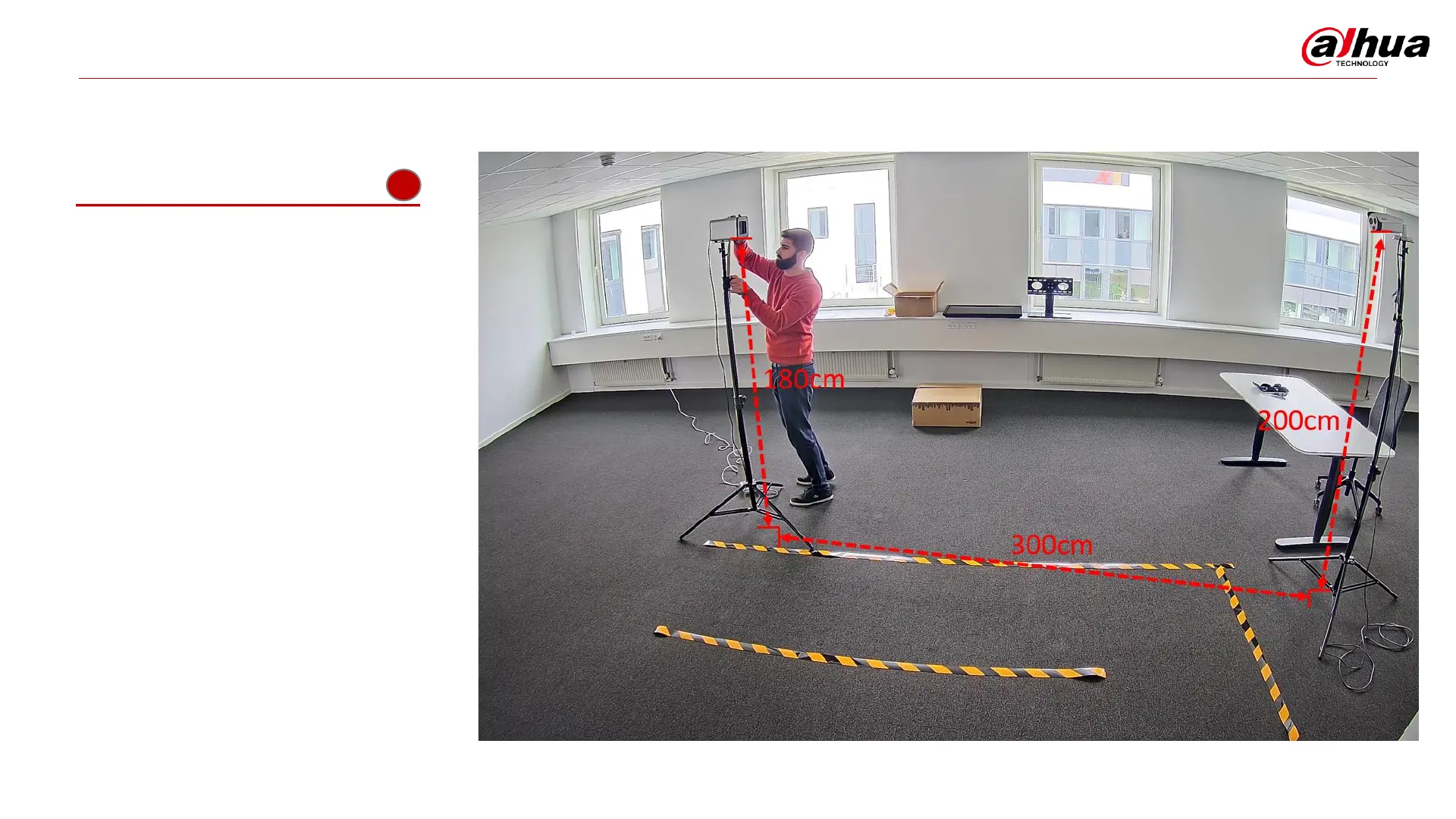

• As shown, the distance
between the camera
and Blackbody would be
3M.
• Height of Blackbody
should be 1.8M
measured from
underneath the device.
• The Heigh of the camera
should be 2M measured
from underneath the
device.
