User’s Manual
16

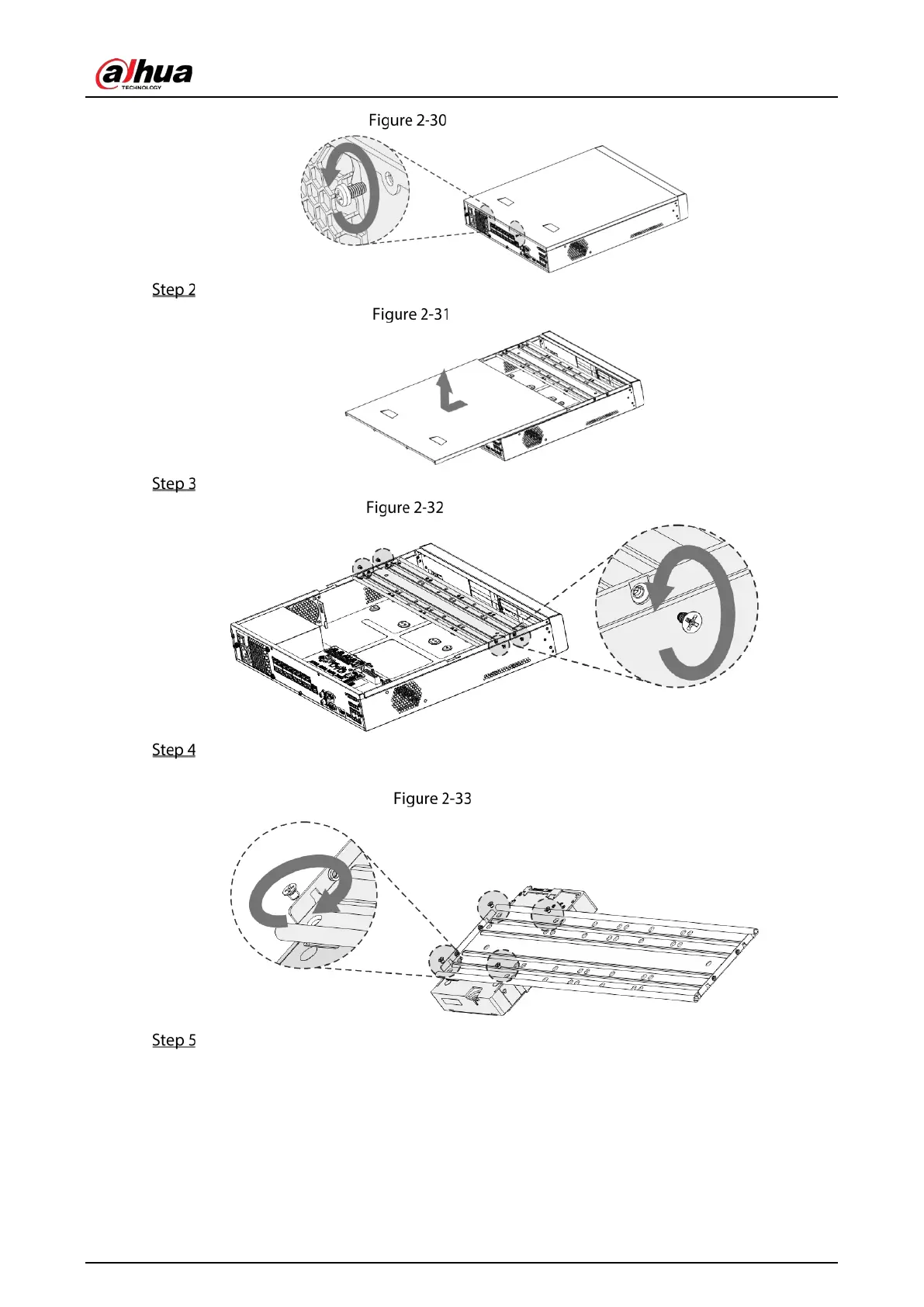

Remove screws
Remove the cover along the direction shown in the following arrow.
Remove cover
Remove the screws on the sides of HDD bracket to take out the bracket.
Remove bracket
Match the four screw holes on the HDD with the four holes on the bracket and then fasten
the screws. The HDD is fixed to the bracket.
Fix HDD
Install the other HDDs.
