User’s Manual
45
3.2.15 DH-XVR5216AN-X-16P

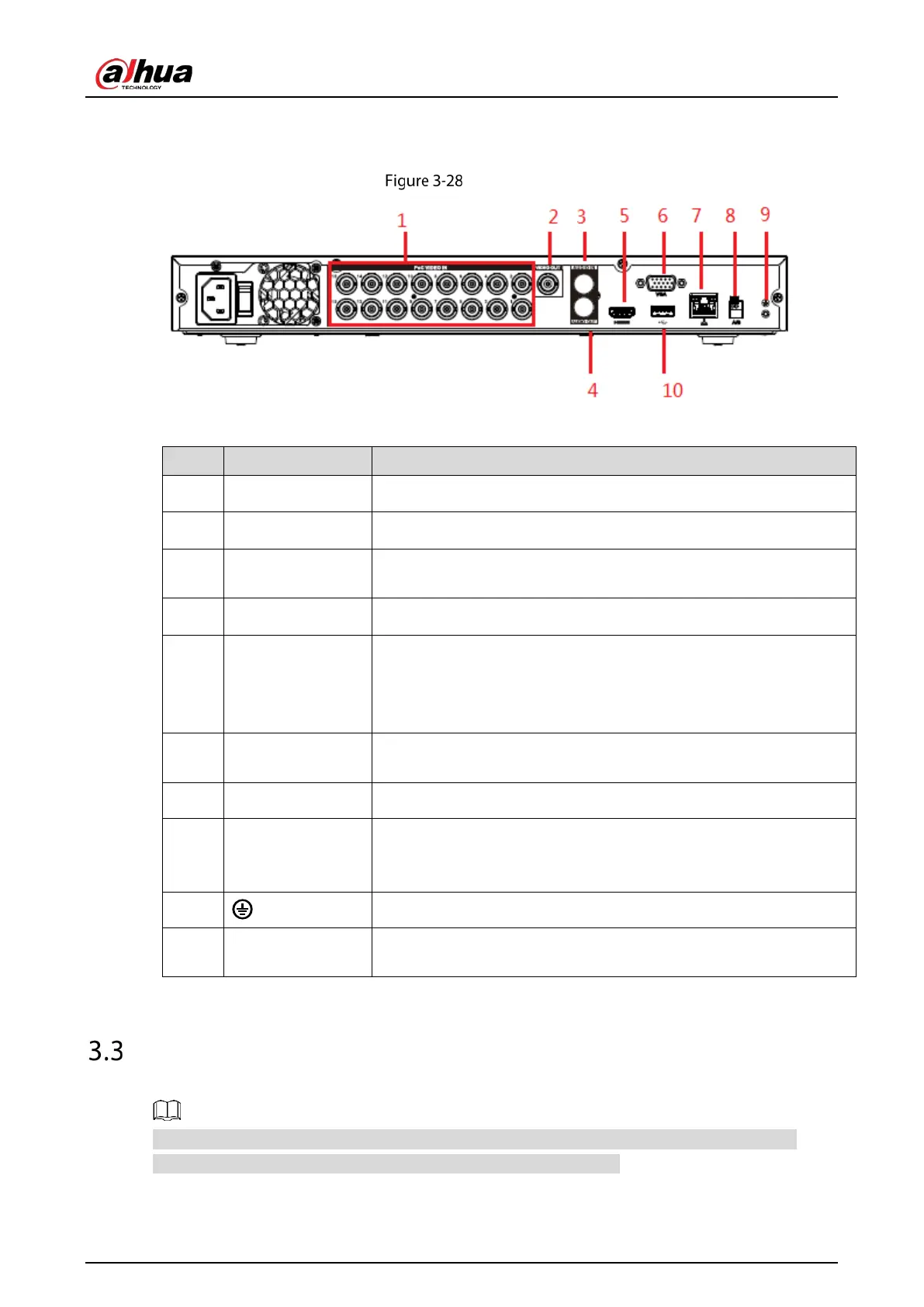

Rear panel
Table 3-24 Rear panel description
No.
Port Name
Function
1 Video input port Connect to general analog camera/PoC camera to input video signal.
2
Video output port
Connects to video output devices such as TV.
3
Audio input port
Receives the analog audio signal output from the devices such as
microphone.
4
Audio output port
Outputs the analog audio signal to the devices such as the sound box.
5 HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Note when the HDMI output resolution is 4K, the VGA output stops.
6 VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
7 Network port Connects to Ethernet port.
8
RS-485
communication
port
Connects to the control devices such as speed dome PTZ. RS-485_A
port is connected by the cable A and RS-485_B is connected to the
cable B.
9
Ground terminal.
10 USB port
Connects to external devices such as USB storage device, keyboard
and mouse.
Remote Control Operations
Please note the remote control is not our standard accessory and might not be included in the
accessary bag. It is supplied dependent on the model you purchased.
