User’s Manual
34
No. Port Name Function
8 USB port
Connects to the external devices such as keyboard, mouse, and USB
storage device.
9 Network port Connects to Ethernet port.
10 Power input port Inputs power.
3.2.9 DH-XVR51xxC-I3/DH-XVR51xxC-4KL-I3

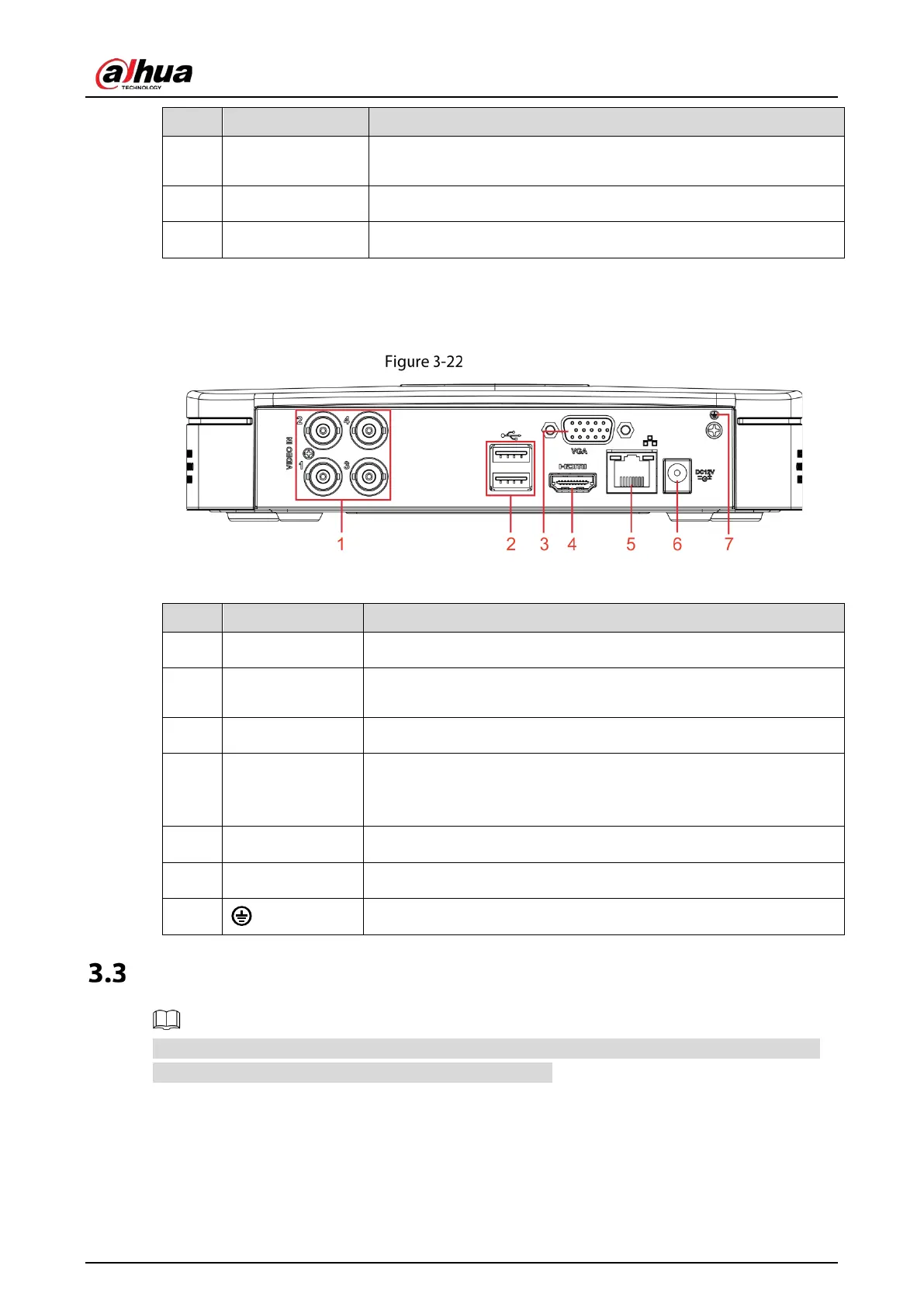

Rear panel
Table 3-19 Rear panel description
No. Port Name Function
1 Video input port Connects to analog camera to input video signal.
2 USB port
Connects to external devices such as USB storage device, keyboard
and mouse.
3 VGA port Outputs analog video data to the connected display with VGA port.
4 HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and multi-
channel audio data to the connected display with HDMI port.
5 Network port Connects to Ethernet port.
6 Power input port Inputs 12 VDC power.
7
Ground terminal.
Remote Control Operations
Note the remote control is not our standard accessory and might not be included in the accessary
bag. It is supplied dependent on the model you purchased.
