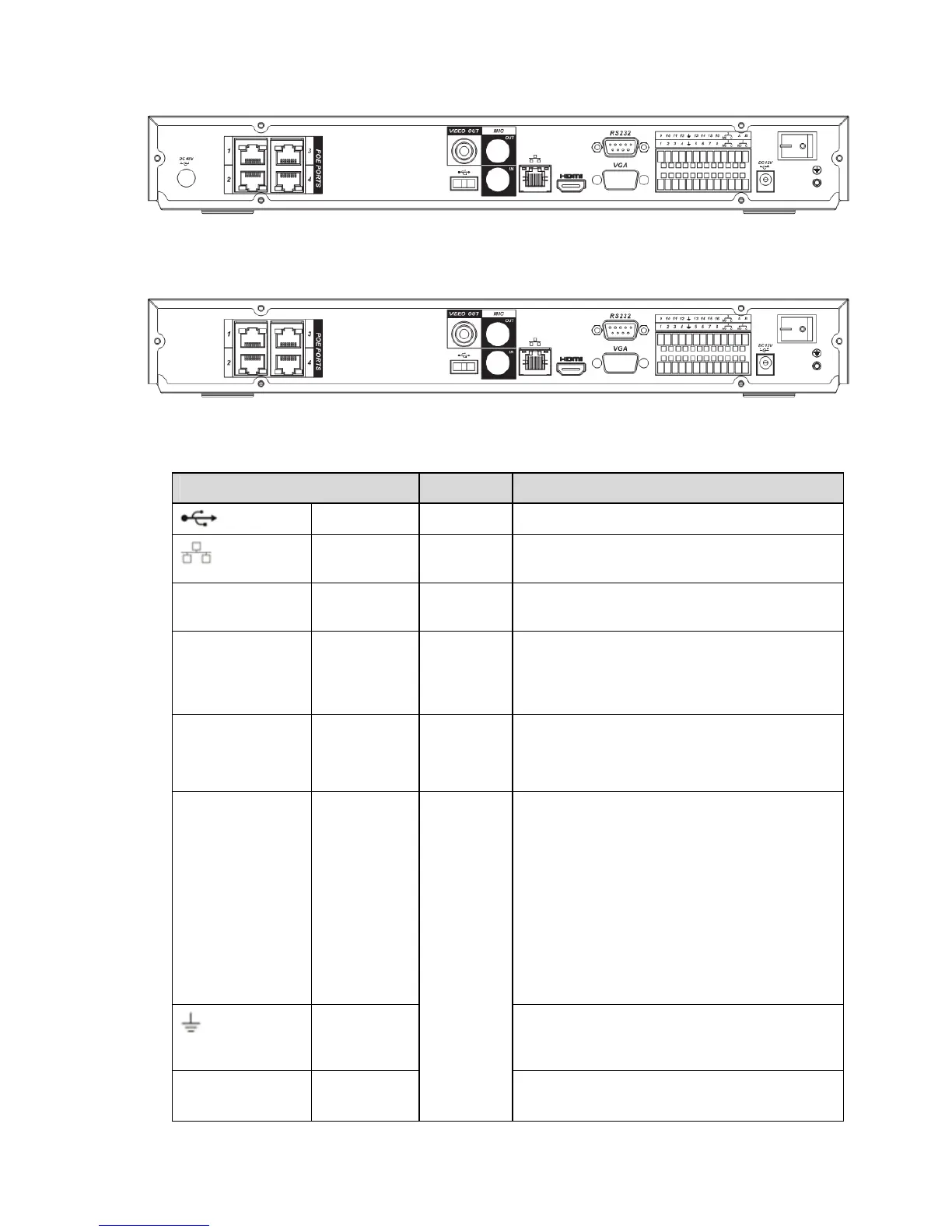

The rear panel of the 32-P series is shown as below. See Figure 1-4.
Figure 1-4
The rear panel of the 32-S series is shown as below. See Figure 1-5.
Figure 1-5
Please refer to the following sheet for detailed information.
Port Name Connection Function
USB port. Connect to USB mouse.
Network port 10M/100M/1000M self-adaptive Ethernet port.
Connect to the network cable.
RS232 232 debug
COM.
It is for general COM debug to configure IP
address or transfer transparent COM data.
HDMI High
Definition
Media
Interface
High definition audio and video signal output
port. It transmits uncompressed high definition
video and multiple-channel data to the HDMI
port of the display device.
VGA
VGA video
output port
VGA VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
1-16 Alarm input
port.
z There are four groups. The first group is
from port 1 to port 4, the second group is
from port 5 to port 8, the third group is
from 9 to 12, and the fourth group is from
13 to 16. They are to receive the signal
from the external alarm source. There are
two types; NO (normal open)/NC (normal
close).
z When your alarm input device is using
external power, please make sure the
device and the NVS have the same
ground.
Alarm input
port ground
end
Alarm input ground end.
NO1 to NO3 3-ch alarm
output port
I/O port
z 3 groups of alarm output ports. (Group 1：
port NO1～C1,Group 2:port NO2～
