11
Port Name Connection Function
Network port 10M/100M/1000M self-adaptive Ethernet port.
Connect to the network cable.
eSATA eSATA port External SATA port. It can connect to the
device of the SATA port. Please jump the
HDD when there is peripheral connected
HDD.
USB port. Connect to USB mouse.
RS232 232 debug
COM.
It is for general COM debug to configure IP
address or transfer transparent COM data.
HDMI High Definition
Media
Interface
High definition audio and video signal output
port. It transmits uncompressed high definition
video and multiple-channel data to the HDMI
port of the display device.
VGA
VGA video
output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.

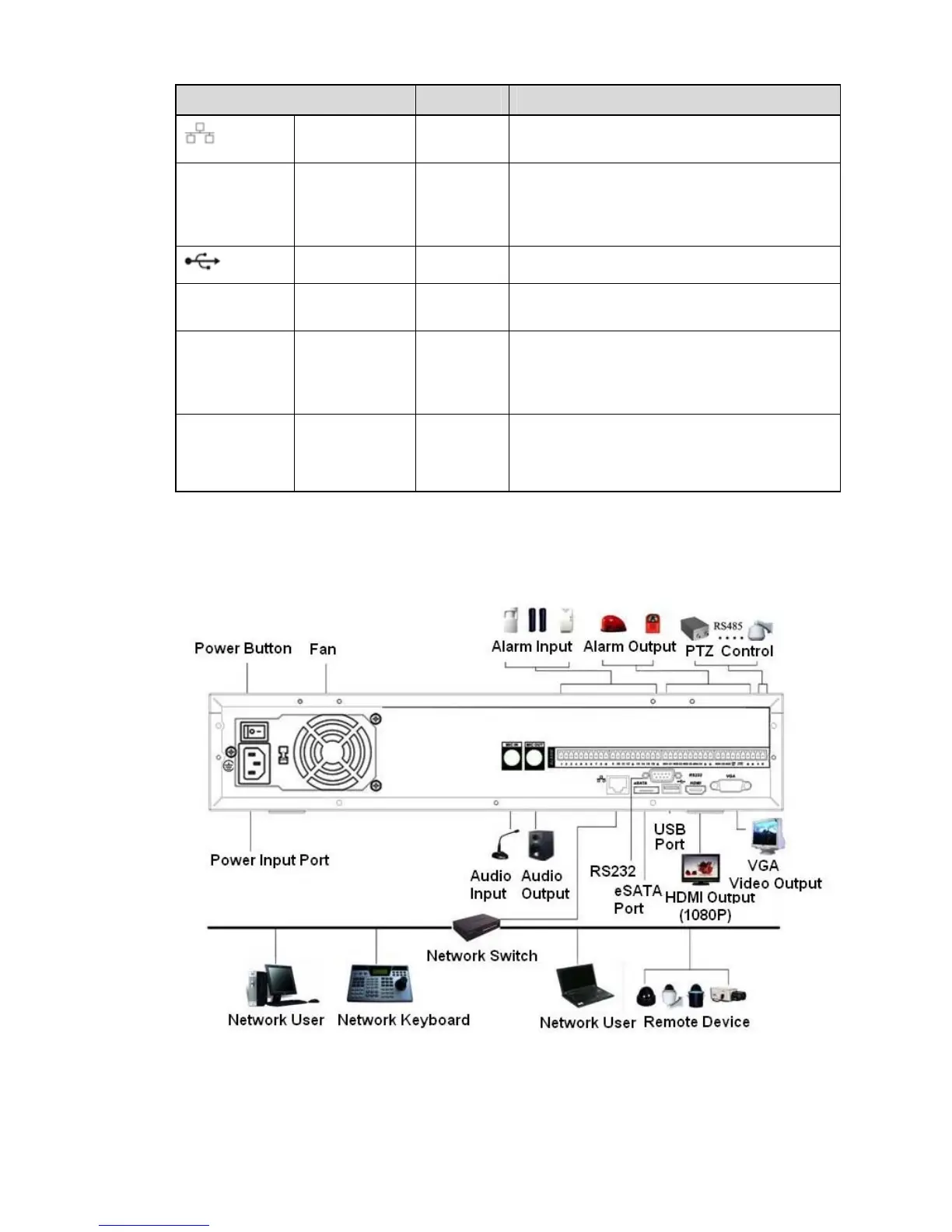

1.7 Connection Sample
Please refer to Figure 1-7 for connection sample.
The following figure is based on the 38 series product.
Figure 1-7
