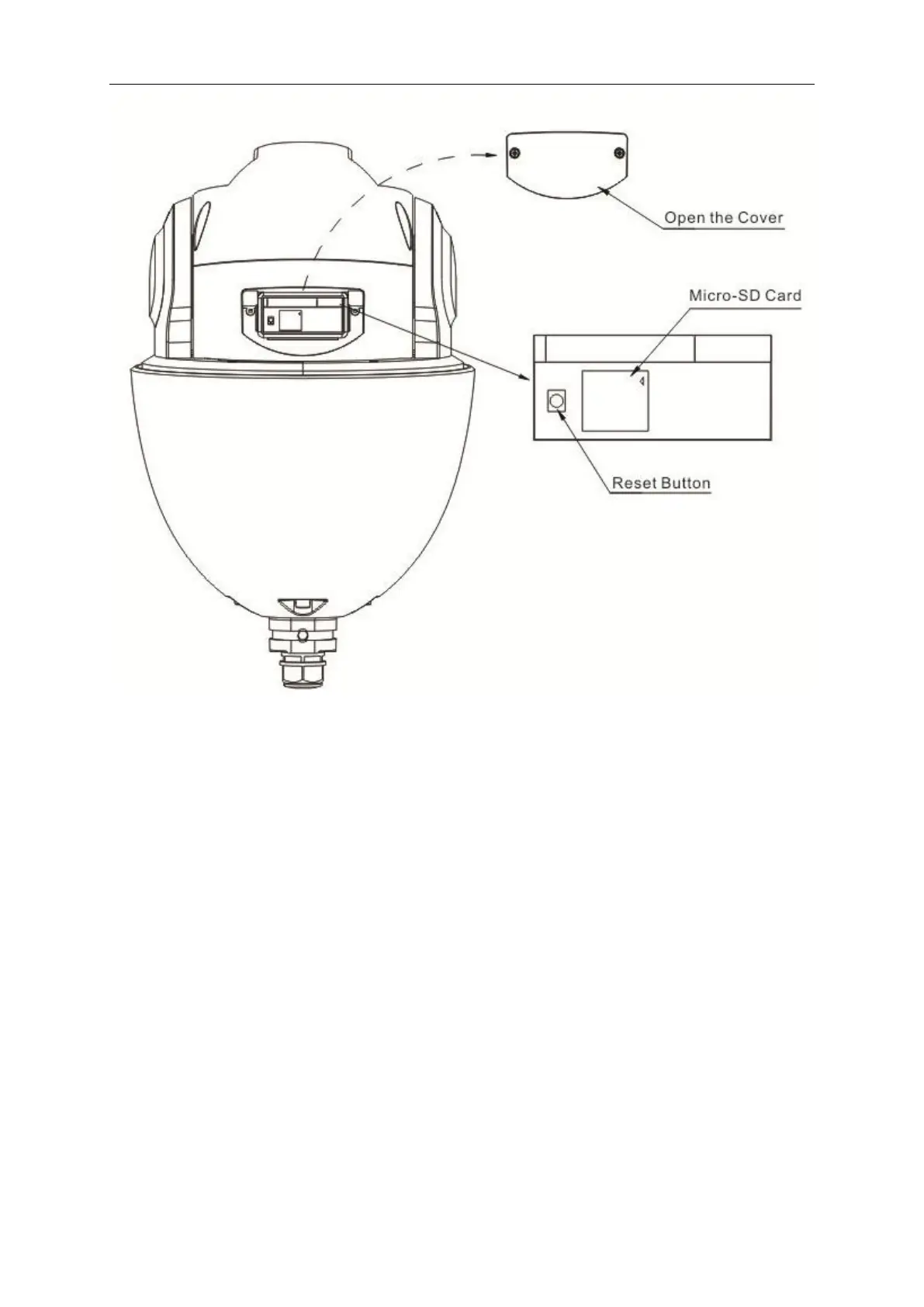

Figure 1-10
1.6 Speed Dome Installation
Note:
The installation of this section can be applied to IR Analog Intelligent and IR Network Intelligent
Speed Dome.
The speed dome has various brackets suitable for different environments. For detailed
information, please refer to chapter 2 to chapter 6. Here we are going to install the analog speed
dome with the analog speed dome wall-mounted bracket.
1.6.1 Quick Installation Connector
Now you can install the quick installation connector. Please twist Teflon tape around the screw
thread of the quick installation port and turn it into the screw thread of the wall mount bracket.
Use M4 stainless screws to secure firmly. See Figure 1-11.
