Dahua DH-SD6AL245U-HNI-IR

11
2 BRACKET DIMENSIONS

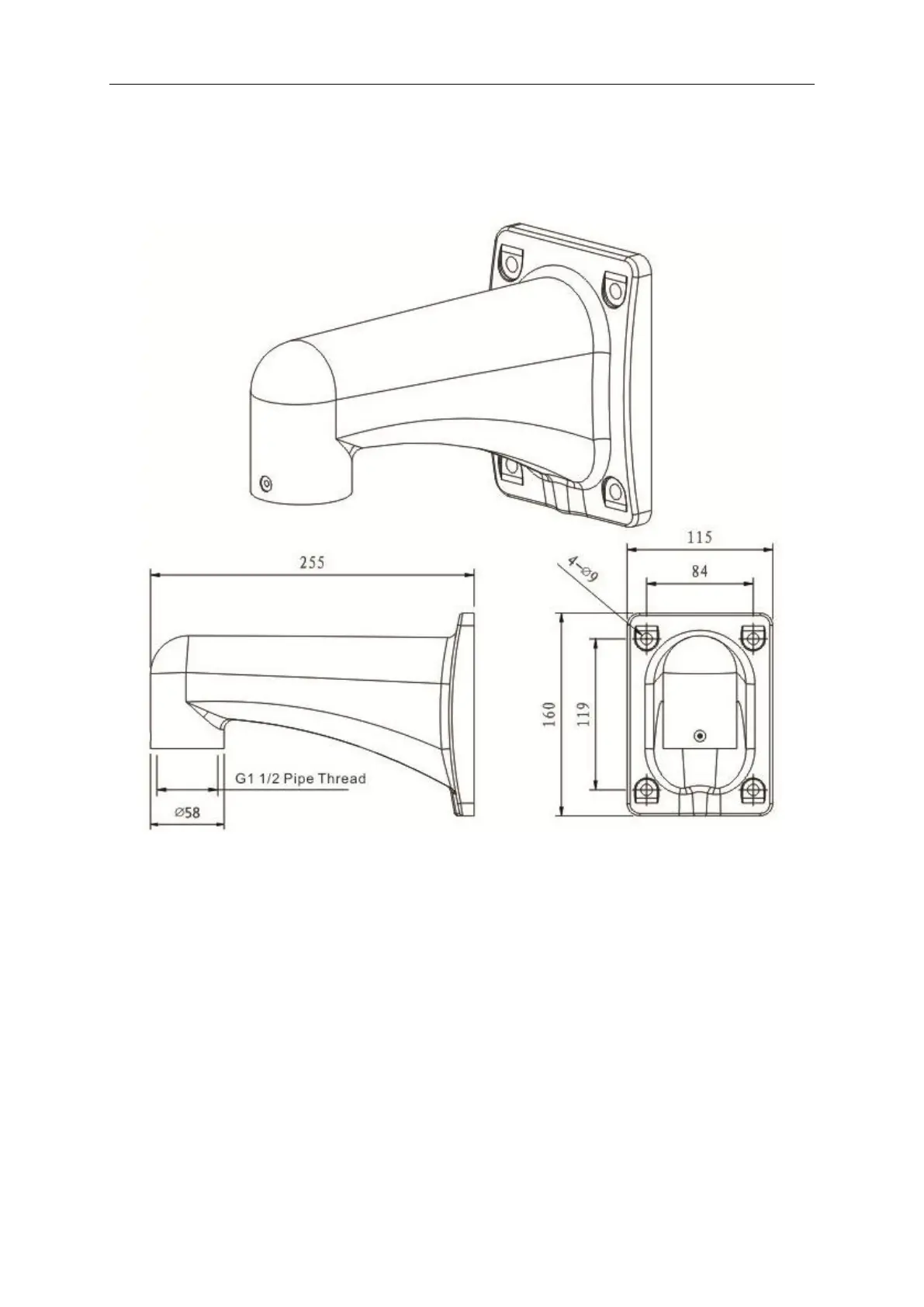

2.1 Wall Mount Bracket
The wall mount bracket dimensions are shown as below. See Figure 2-1.
Figure 2-1
2.2 Hanging Mount Bracket (Multiple Lengths)
The hanging mount bracket is shown as below. See Figure 2-2.
