Figure 1-11
1.6.2 Cable Connection
Connect the safety hook of the IR speed dome cover to the hook of the quick installation port.
Connect the reserved integration cable of the wall mount bracket to the corresponding power
cable, video/audio cable, RS485 control cable, alarm port, high frequency cable, fiber cable
(if necessary) of the multiple-function composite cable of the IR speed dome. Paste the
insulating tape in the connection position to do the proper waterproof work. See Figure 1-12.

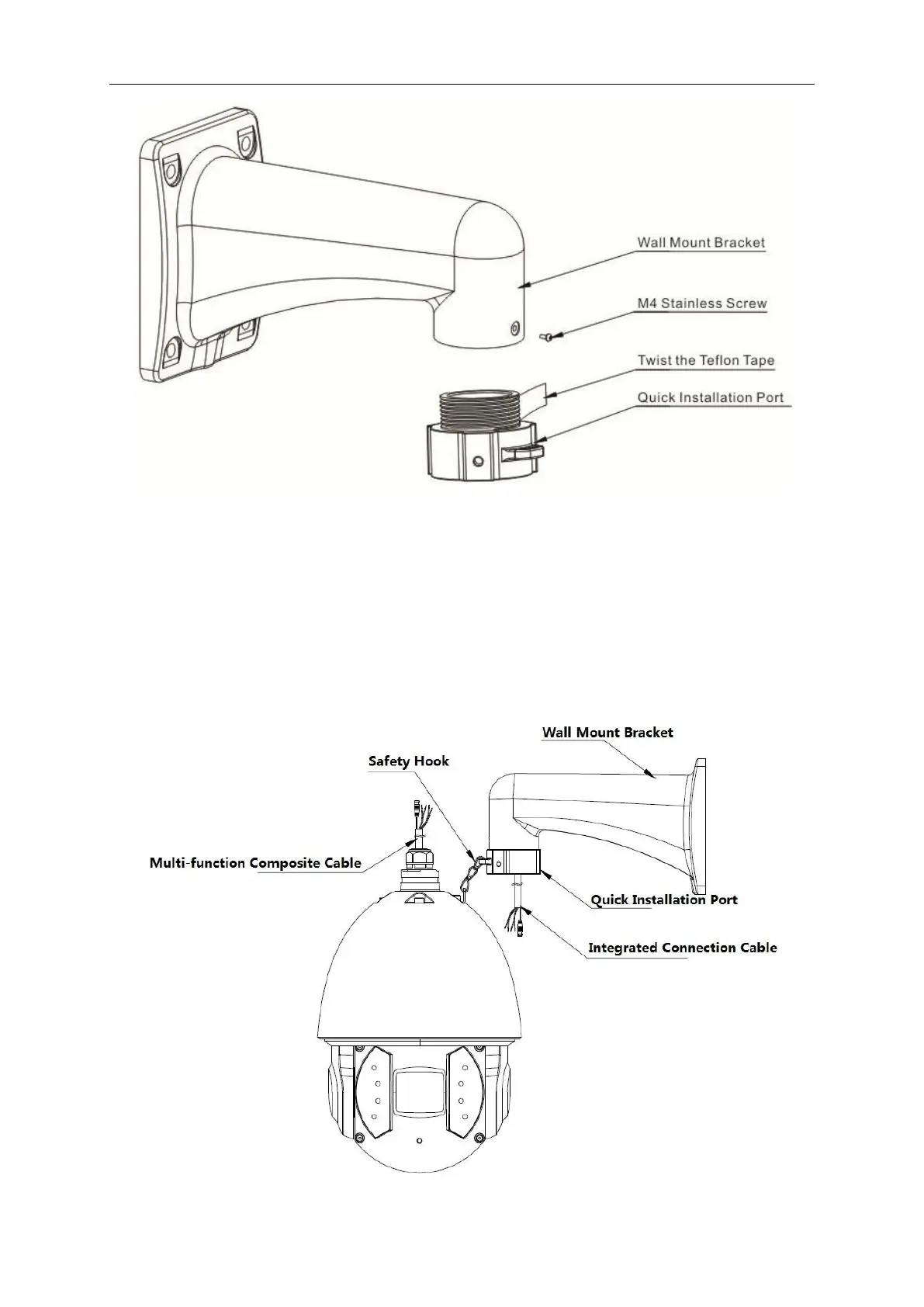

Figure 1-12
To Next Page
