Dahua DH-SD6AL245U-HNI-IR

19

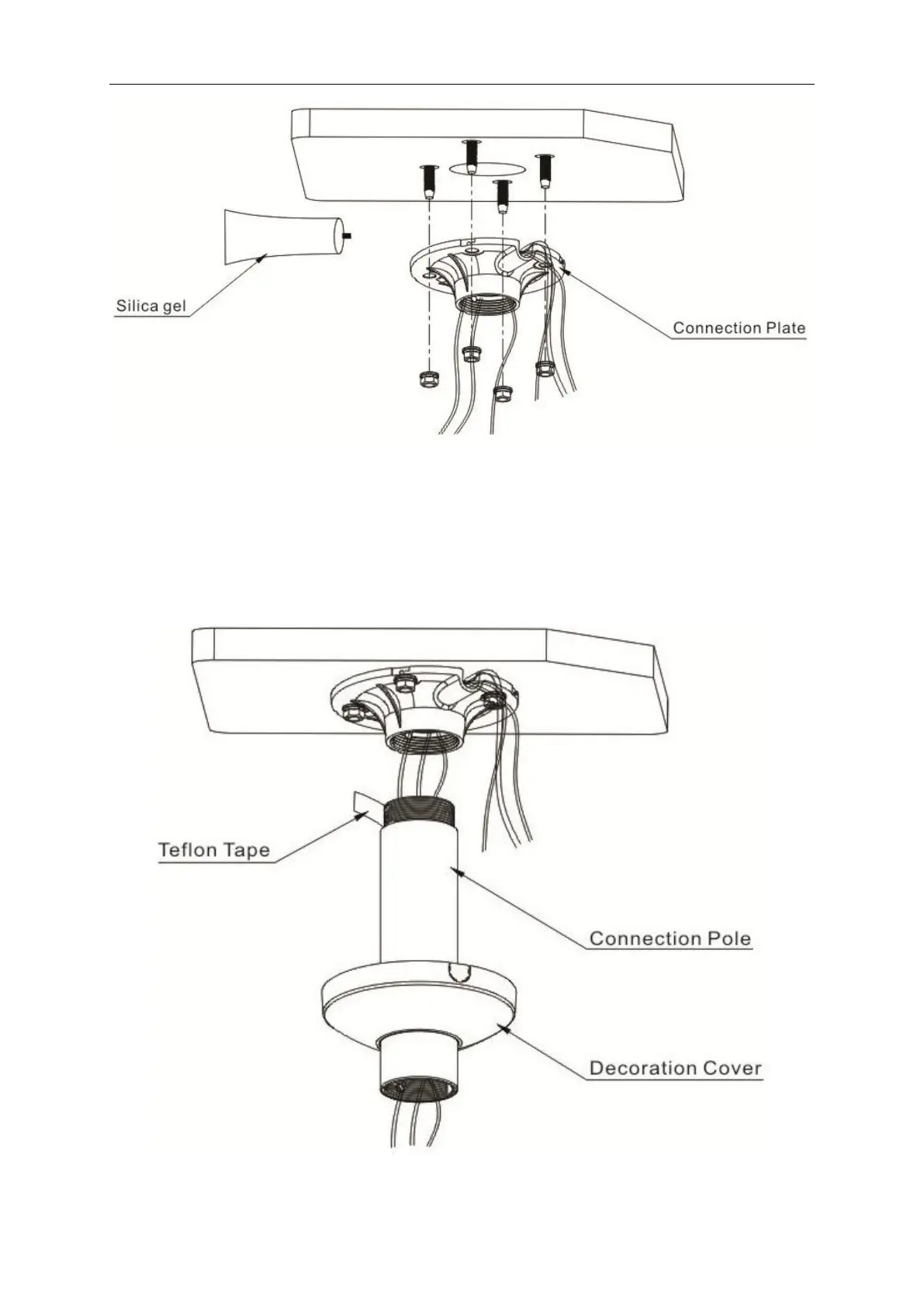

Figure 4-2
Please note, if the speed dome is installed in the outdoor environments, you need to paste
the silica gel on the surface of the connection plate and the ceiling and the cable exit.
Step 2
Pull the cable through the connection pole and then secure the connection pole to the connection
plate. Fix the M4 bolt. Push the decoration cover to the bottom. See Figure 4-3.
Figure 4-3
