This chapter introduces various components of the Device, remote control and mouse
operations.
3.1 Front Panel
3.1.1 DH-XVR5108C-X/DH-XVR5104C-4KL-X/DH-XVR5104C-X/
DH-XVR4104C-X/DH-XVR4108C-X/DH-XVR5104C-X1/
DH-XVR4104C-X1/DH-XVR4108C-X1

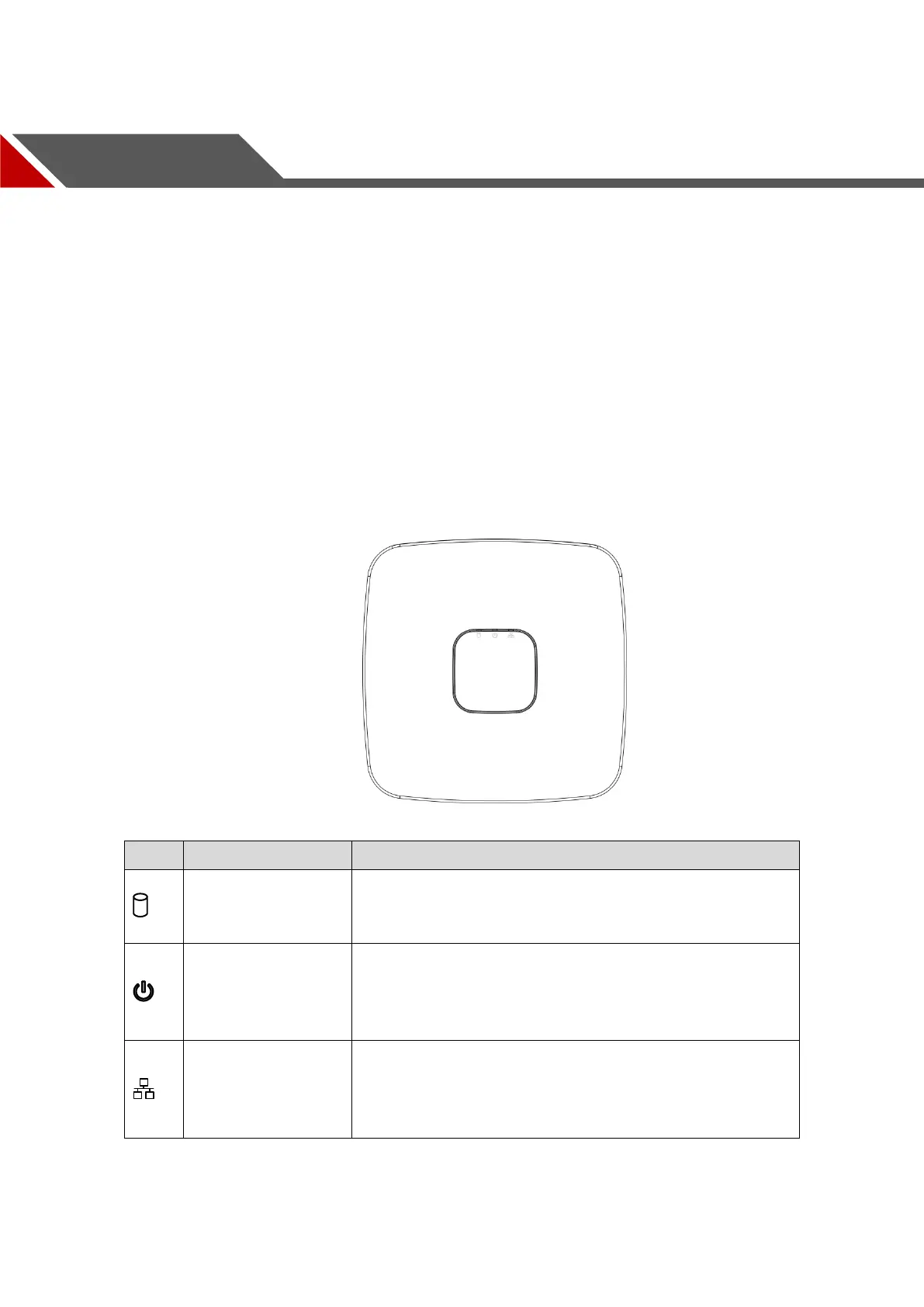

Figure 3-1
Icon
Name
Function
HDD status indicator
The indicator is off when the HDD is running normally.

The indicator glows blue when the HDD is in

malfunction.
Power status
indicator
The indicator is off when the power is connected

abnormally.
The indicator glows blue when the power is connected

normally.
Network status
indicator
The indicator is off when the network connection is

correct.
The indicator glows blue when the network connection

is abnormal.
Table 3-1
