No.
Port Name
Function
5
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
6
VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
7
Network port
Connects to Ethernet port.
8
RS-485
communication
port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
9
Ground terminal.
10
USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
Table 3-25

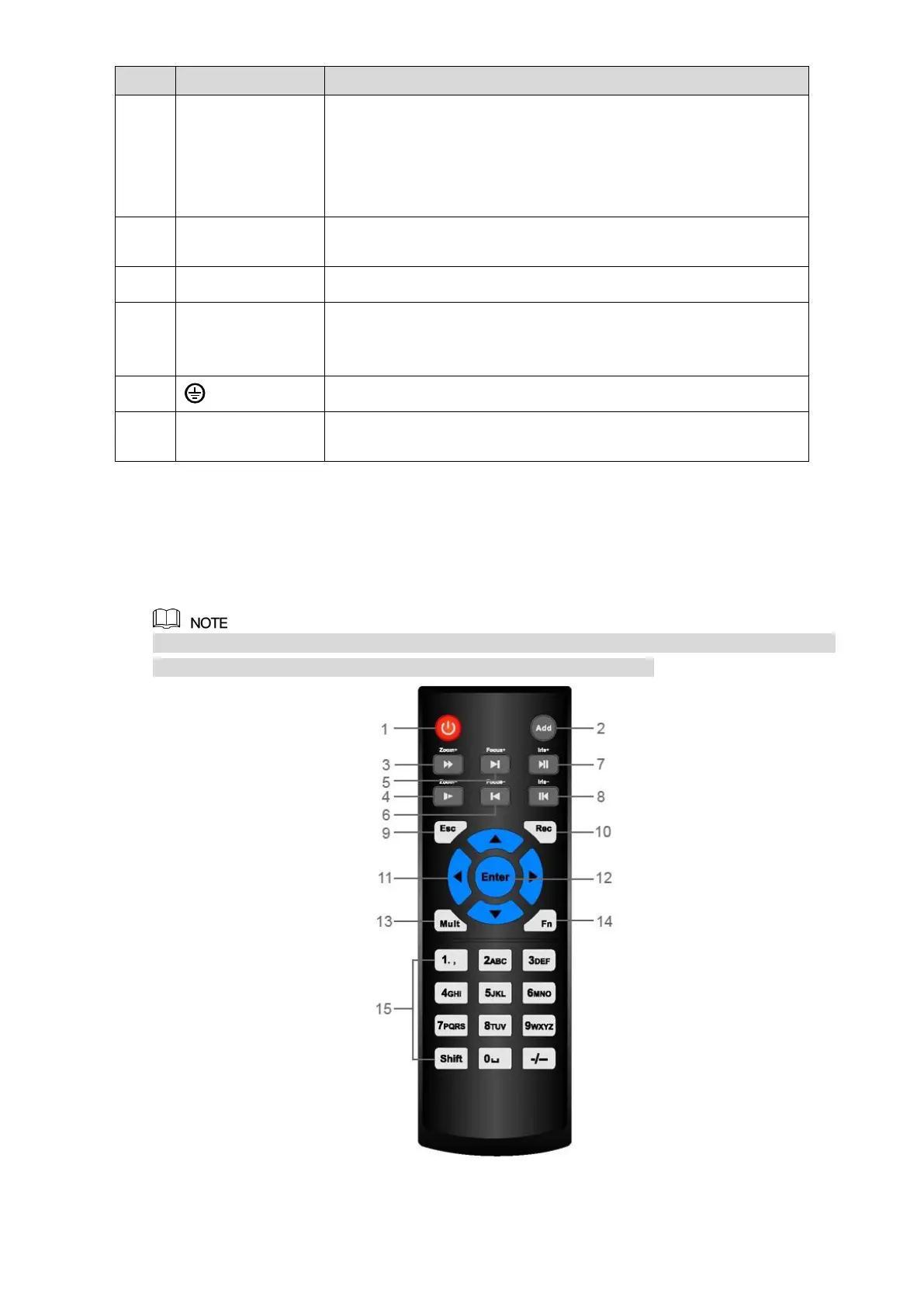

3.3 Remote Control Operations
Please note the remote control is not our standard accessory and might not be included in the
accessary bag. It is supplied dependent on the model you purchased.
Figure 3-28
