Function
7
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
8
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
9
Network port
Connects to Ethernet port.
10
Power input port
Inputs power.
Table 3-23
3.2.14 DH-XVR5104H-X-4P/DH-XVR5108H-X-8P

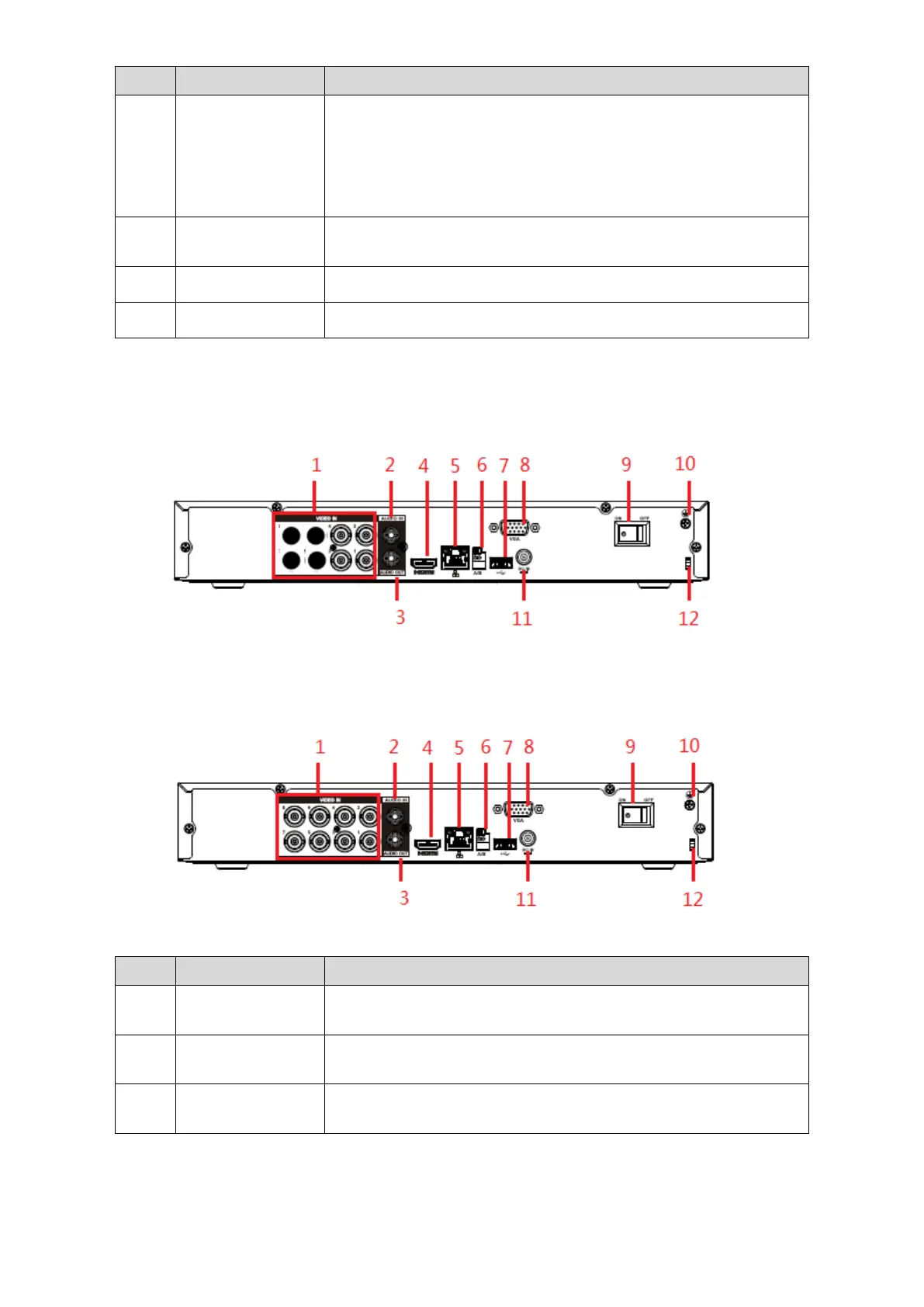

Figure 3-25
Figure 3-26
No.
Port Name
Function
1
Video input port
Connect to general analog camera/PoC camera to input video
signal.
2
Audio input port
Receives the analog audio signal output from the devices such
as microphone.
3
Audio output port
Outputs the analog audio signal to the devices such as the sound
box.
