Port Name
Function
13
RS232 debug
COM.
It is for general COM debug to configure IP address or transfer
transparent COM data.
14

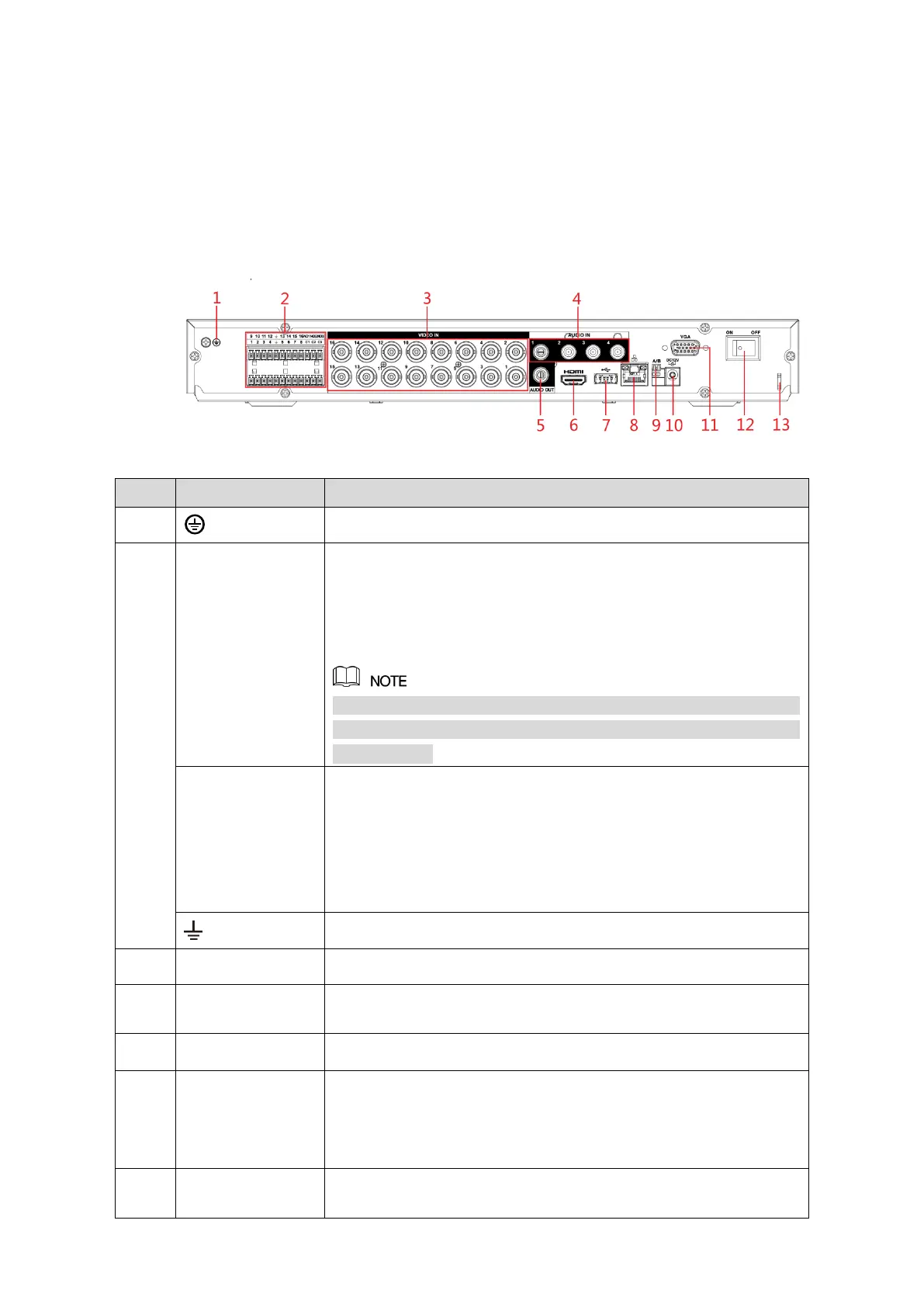

HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
15
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
16
eSATA port
External SATA port which connects to the device with SATA port.
Perform the jumper configuration when connecting HDD.
Table 3-17
3.3 Remote Control Operations
Please note the remote control is not our standard accessory and might not be included in the
accessary bag. It is supplied dependent on the model you purchased.

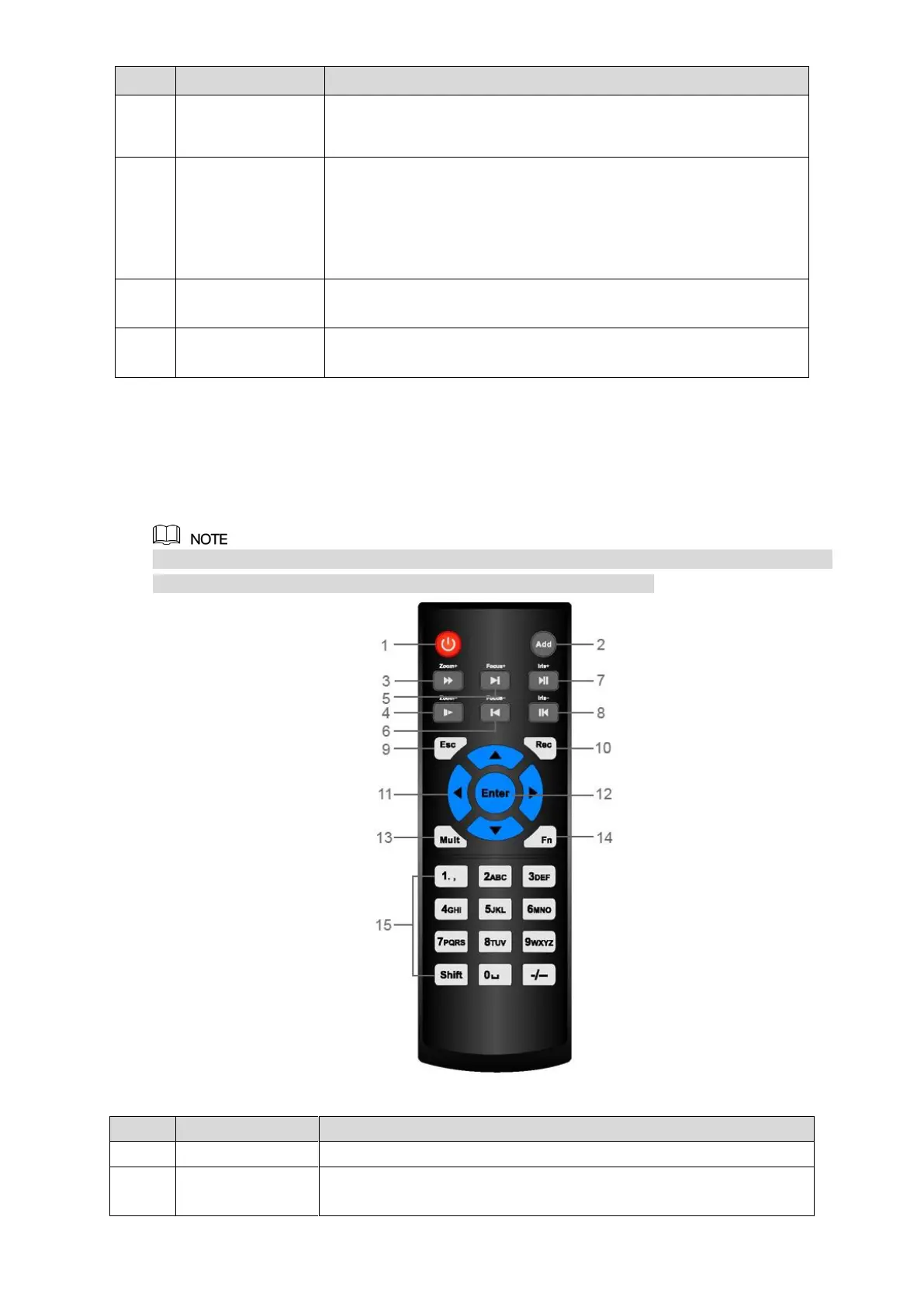

Figure 3-19
No.
Name
Function
1
Power button
Press this button to boot up or shut down the device.
2
Address
Press this button to input device serial number, so that you can
control the Device.
